U sing the A udio A^ ideo I nput J acks
\ CR/AIJX INPUTS
T '^he TV's Audio/Video Input
jacks are for direct picture and
sound connections between the TV
and a VCR (or Video Disc Player,
etc.) that has AudioTVideo Output
jacks.

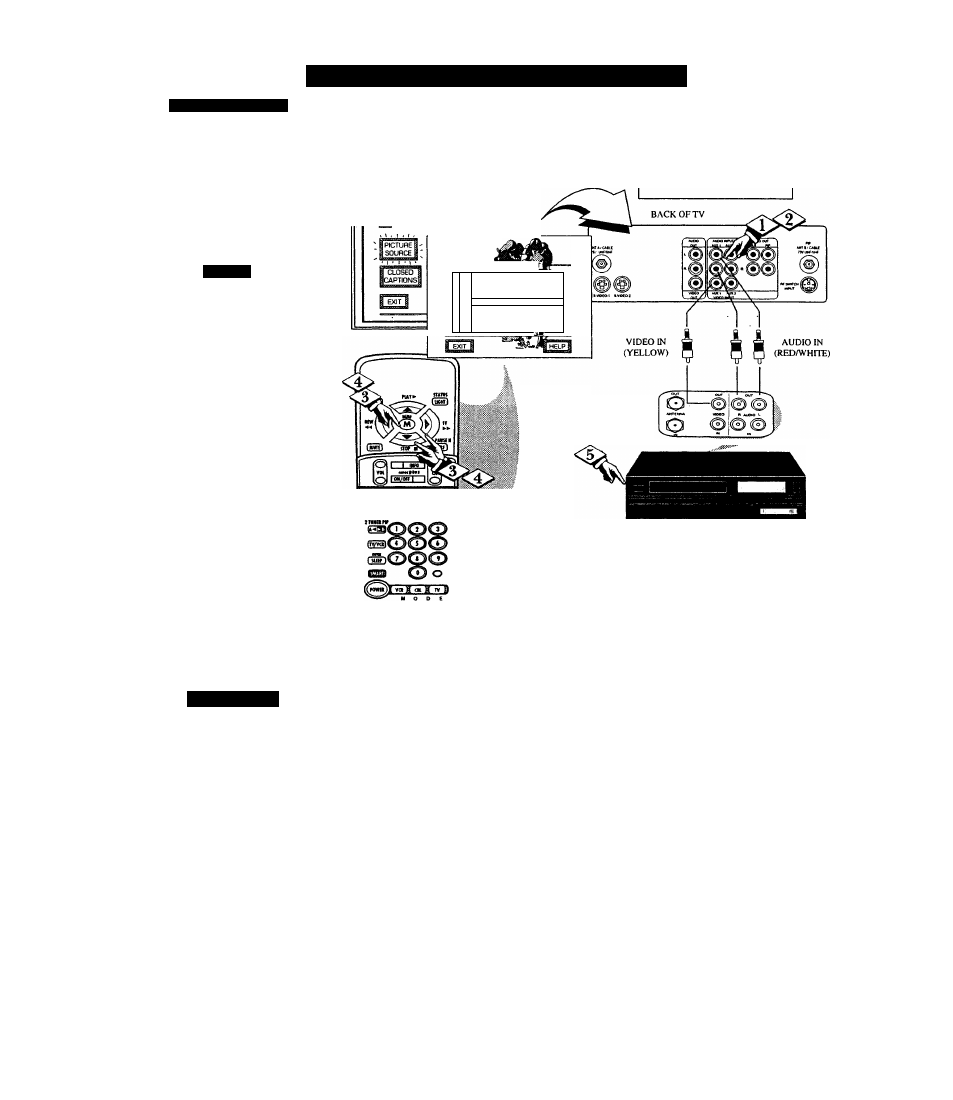

To view the playback of a VCR
tape by using the Audio/Video
Input jacks on the TV:
Connect the VIDEO OUT jack
from the VCR to the AUX 1
VIDEO IN jack on the TV.
<|> Connect the AUDIO OUT
jacks R(ight) and L(eft) from the
VCR to the AUX 1 AUDIO IN
jacks on the TV.
Select the "VCR/AUX 1"
PICTURE SOURCE SELECT
control on the TV.
With the FEATURES MENU on
screen, move the RED highlight
with the MENU (M) buttons.
Then press the MENU button.
<|> Press the MENU AT and
MENU (M) buttons to highlight
and select (v^) the AUX 1 mode.
Turn the VCR ON and press
PLAY to view the tape on the TV.
0
S mart H elp
Remember, after it is
^connected an easy way to
select the AUX 1 mode is to press
the VCR button on the front of the
TV (or the TVA^CR button on the
remote.) Channels 3/4, ANT A/B,
AUX 2/3, and the last channel
viewed can also be selected in this
way.
If you have added AUX 1 to the
TV's channel memory (see page
14), just press the CHANNEL
AT buttons to select the AUX I
mode.
PICTURE AND SOUND FROM
PLAYBACK OF VCR TAPE
NOTE: Connections and use of the
TV’s AUX 2 Audio/Video Input jacks
are the same as for the AUX I jacks
(except ”AUX 2” is selected as the
FEATURE MENU =
■ PICTURE SOURCE SELECT
ANT A
ANT B
✓ rAU)« 1
AUX2
AUX3
AUDIO/VIDEO
OUTPUT JACKS
ON VCR
PIP
¿1
VCR
If you have a single (monaural)
Audio Output VCR, "Y" connectors
are available to complete your
connection. Contact your dealer, or
our Parts Information Center (1-800-
292-6066) to order any optional
accessories.
