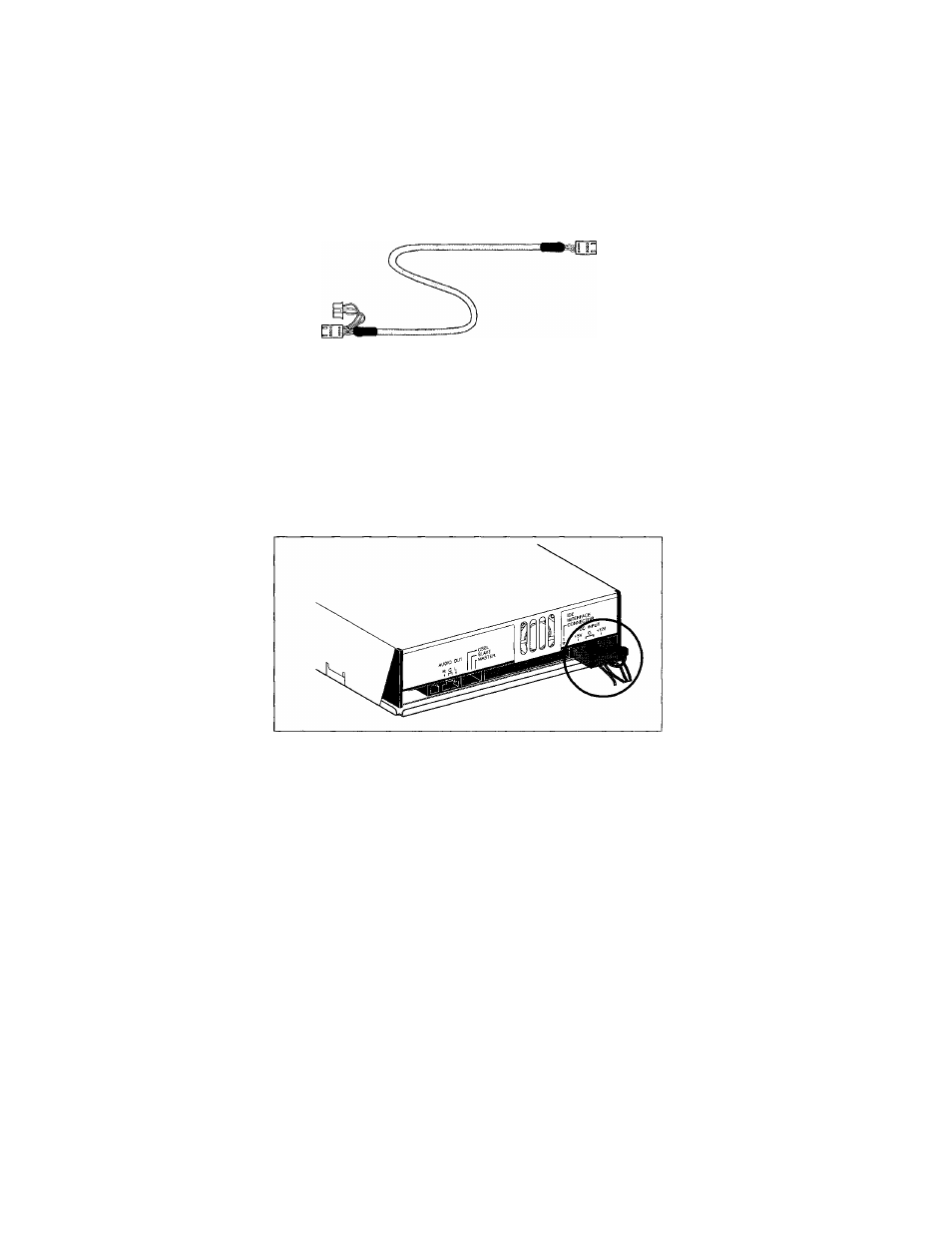

AUDIO cable
Rewriter 4-pin connector
(large)
To the Sound Card (Sound Blaster compatible)
One of the 2 connectors
8. Connect the power supply cable.
Connect the +12V and +5V 4-pin power cable to the power supply interface located on
the rear panel of your Philips CD Rewriter drive.
The shape of the connector makes it impossible to reverse the connections.
If you have difficulty when inserting the connector, try gently wiggling the connector left
and right while inserting it.
