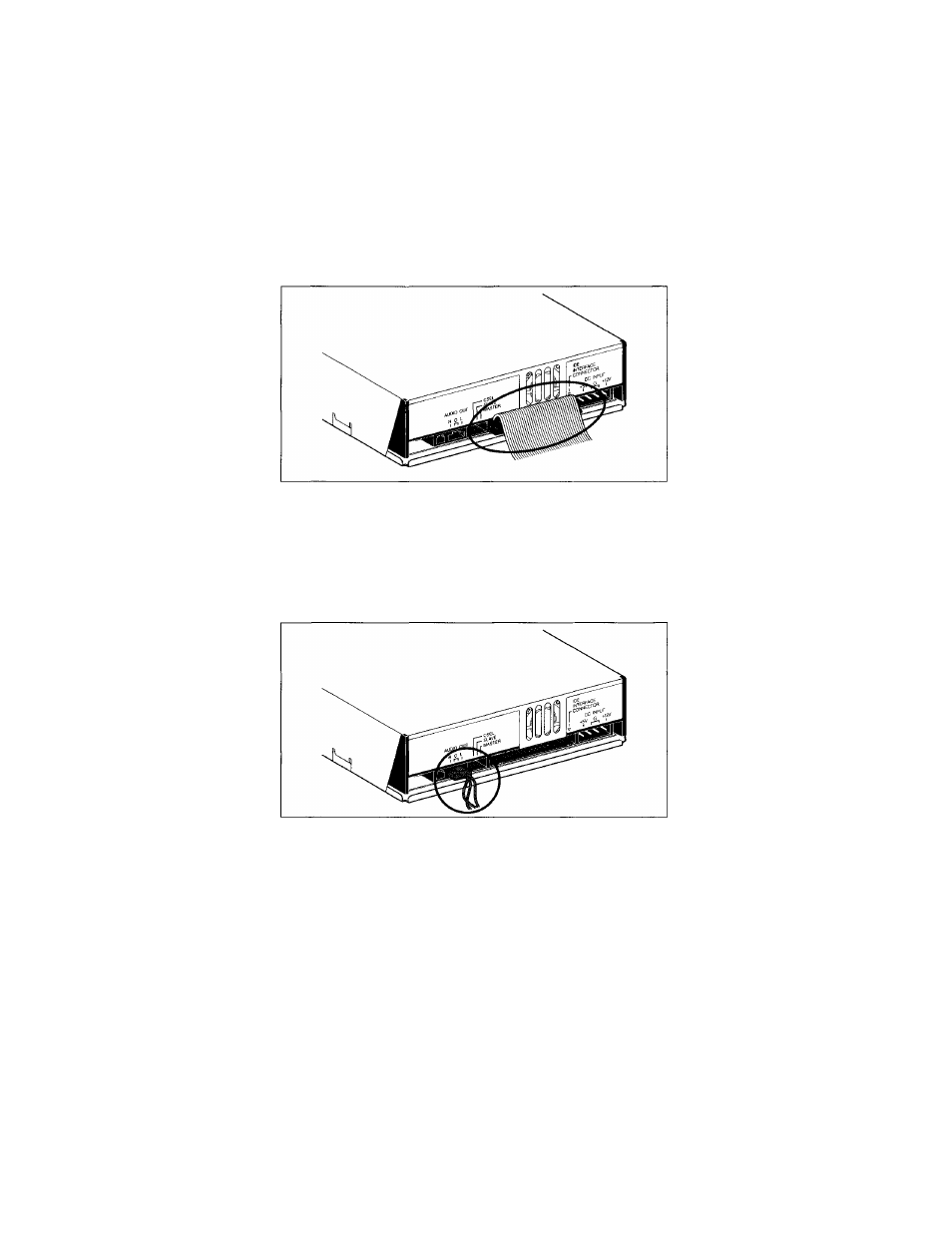

6. Connect the IDE interface connector.

Connect the 40-pin IDE interface connector to the IDE interface located on the rear
panel of your Philips CD Rewriter drive.
Position the connector so that the colored line is at pin 1 (your lower right).

Connect the AUDIO cable.

Connect the single 4-pin connector (Sound Blaster compatible) to the sound card.
Connect the 4-pin connector at the other end of the cable (the larger connector) to the

AUDIO OUT connector on your Philips CD Rewriter drive. The polarizing lug should

be at the top.

Chapter 2 • InstaUing yt»ur Philips CD (tewriter 11
