User Manual 9 EN
TVM-1700/TVM-1900 models
TVM-2200 model

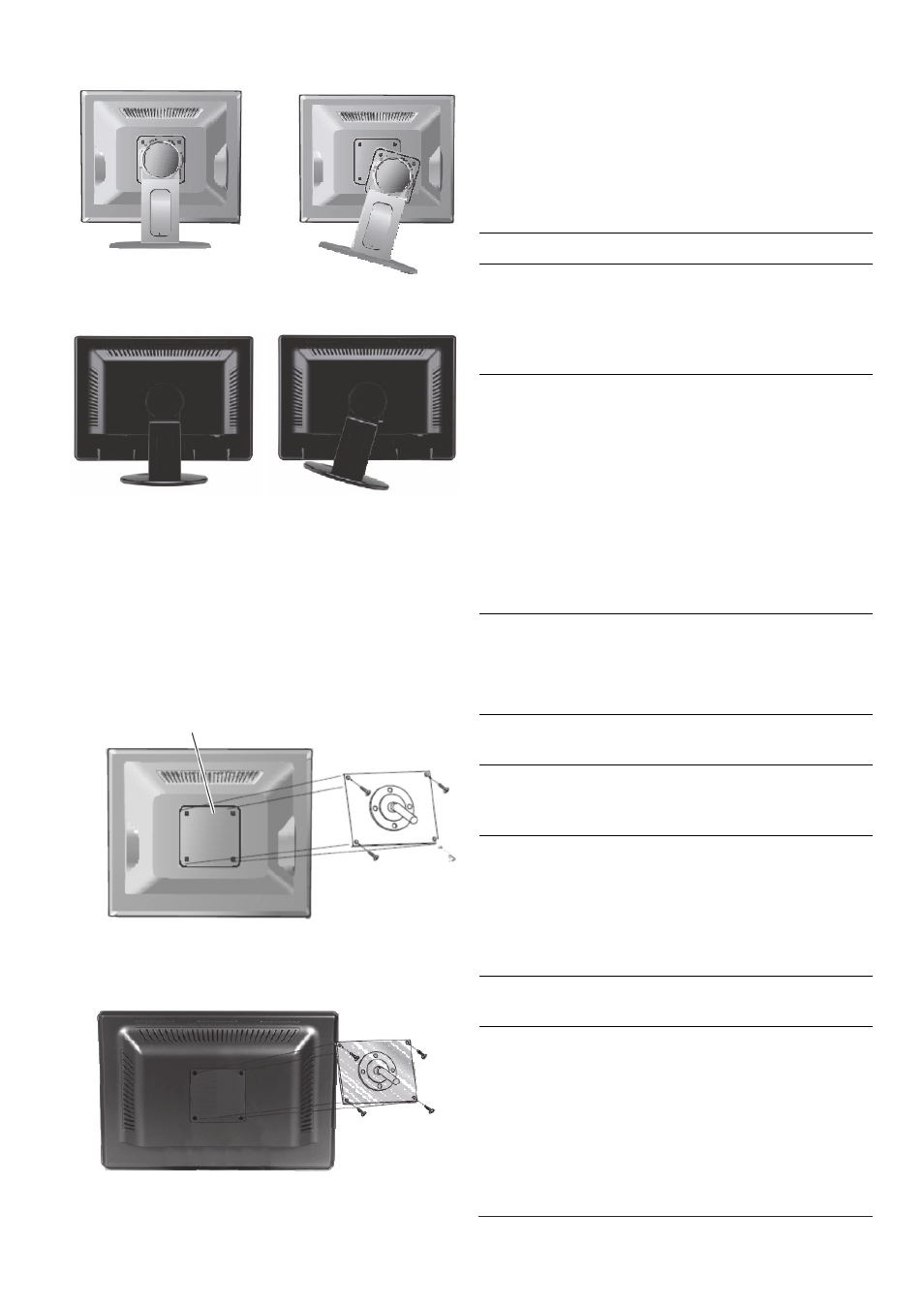

Attaching the monitor stand
Tighten the screws at the locations indicated by
arrows shown in the figures above. See pictures
below.
TVM-1700/TVM-1900 models
Monitor stand attached here
Face of monitor
stand arm
TVM-2200 model
The monitor’s installation surface is compatible with
other types of VESA standard stands.
Hole spacing: 100 x 100 mm
Screw length: 8 to12 mm
Troubleshooting
Symptom Check
Picture is jittery Adjust Clock to set the
screen position and adjust
Clock value carefully until a
noise is no longer
displayed.
No picture Check if the power switch
and computer power switch
are in the On position
Check if the signal cable is
correctly connected to the
video card.
Check if the pins of D sub-
connector are not bent.
Check if the computer is in
the power- saving mode.
POWER LED is
not lit Check if power switch is in
the On position.
Check if the power cord is
correctly connected.
Image is unstable Check if the signal cable is
suitable to the video card
Image is not
centered, too small
or too large Adjust Clock or H&V
Center to get the proper
image.
Picture bounces or
a wave pattern is
present in the
picture Keep the devices that may
cause electrical interference
away from the monitor.
See the FCC information at
the front cover of the
manual.
Picture is blurred Adjust Contrast and
Brightness.
No sound Check the audio cables are
correctly connected to the
computer.
Adjust the volume after
checking the sound is
muted.
Check the audio system in
the computer.
