Interlogix TruVision 360° Installation Manual User Manual
Page 9

Installation Manual
7

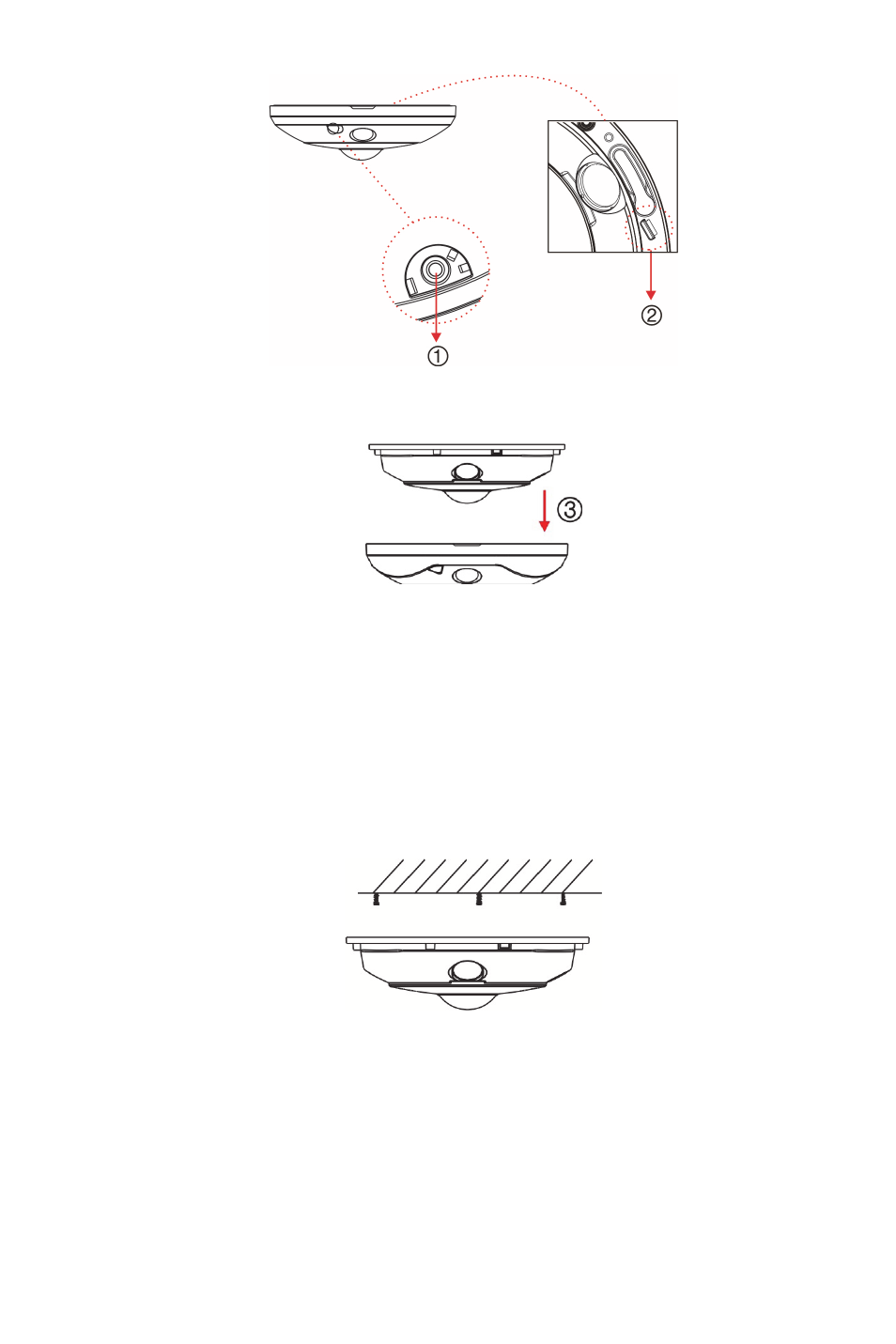

Grasp the opening on the side of the cover, and pull the cover and base
apart to open the camera (3).
Note: For further information on removing the cover ring from the camera,
please refer to the guide, “Instructions to remove the 360° camera cover”.
4. Connect the cables to the camera.
5. Attach
the
camera to the ceiling/wall.
Align the holes on the base of the camera with the three screws in the
ceiling/wall and rotate the camera to lock it into position.
When mounting the camera to a wall, ensure that the ‘TOP’ reference is
pointing up.
6. Tighten the three screws to securely fix the camera to the ceiling/wall.
7. When re-attaching the camera cover ring, ensure that groove/opening near
the cover screw (1) is not up against a wall or ceiling. You will need to have
access to that area when removing the camera cover
