Pin definitions – Interlogix TruVision 360° Installation Manual User Manual
Page 16

14 Installation
Manual

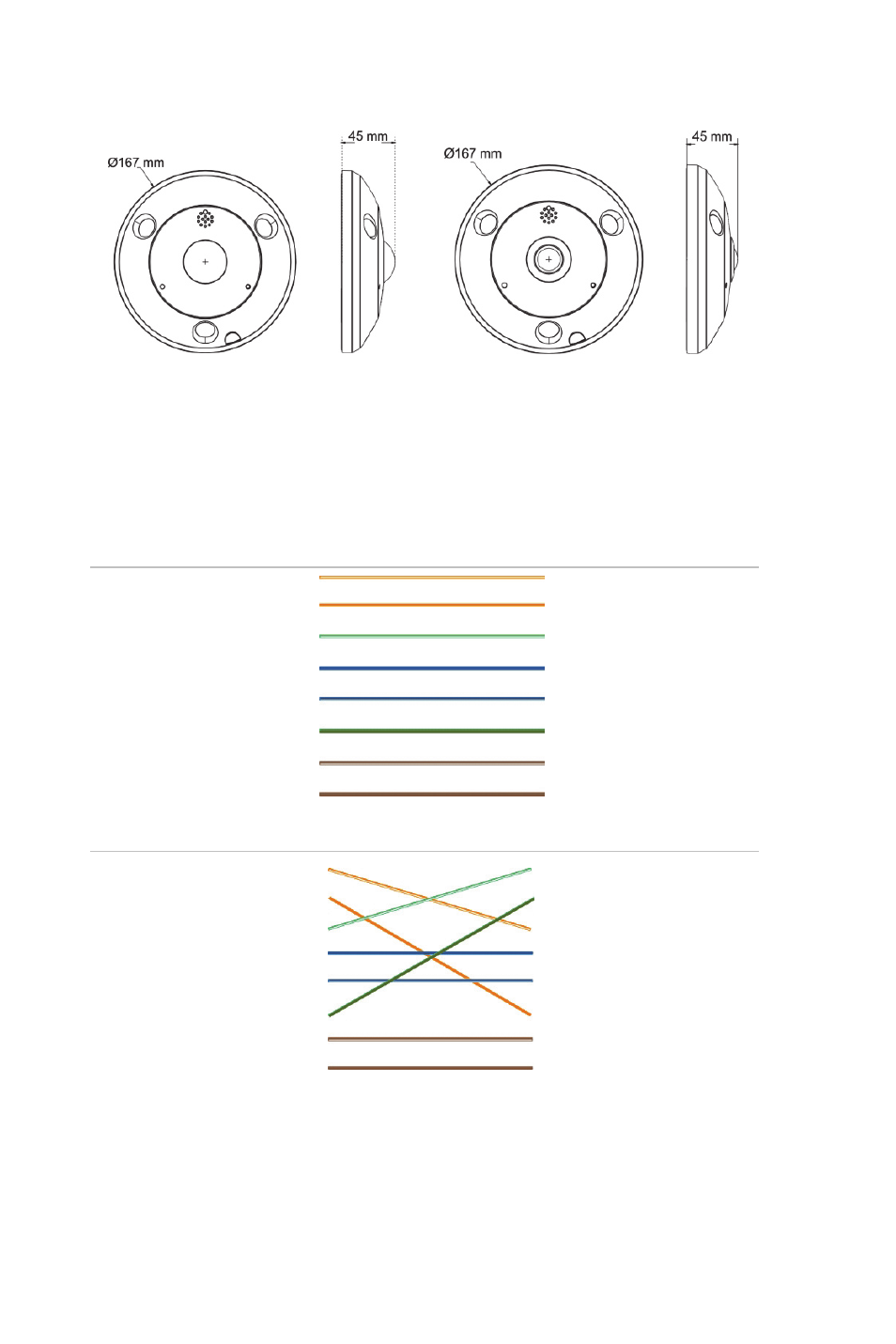

Outdoor camera dimensions:
Indoor camera dimensions:
Pin definitions
There are eight wires on a standard UTP/STP cable and each wire is color-
coded. The following shows the pin allocation and color of straight and crossover
cable connection:
Figure 4: Straight-through cable
1 White/Orange
White/Orange 1
2 Orange
Orange 2
3 White-Green
White-Green 3
4 Blue
Blue 4
5 White/Blue
White/Blue 5
6 Green
Green 6
7 White/Brown
White/Brown 7
8 Brown
Brown 8
Figure 5: Cross-over cable
1 White/Orange
White/Orange 1
2 Orange
Orange
2
3 White-Green
White-Green
3
4 Blue
Blue
4
5 White/Blue
White/Blue
5
6 Green
Green
6
7 White/Brown
White/Brown
7
8 Brown
Brown
8
Please make sure your connected cables have the same pin assignment and
color as above before deploying the cables in your network.
