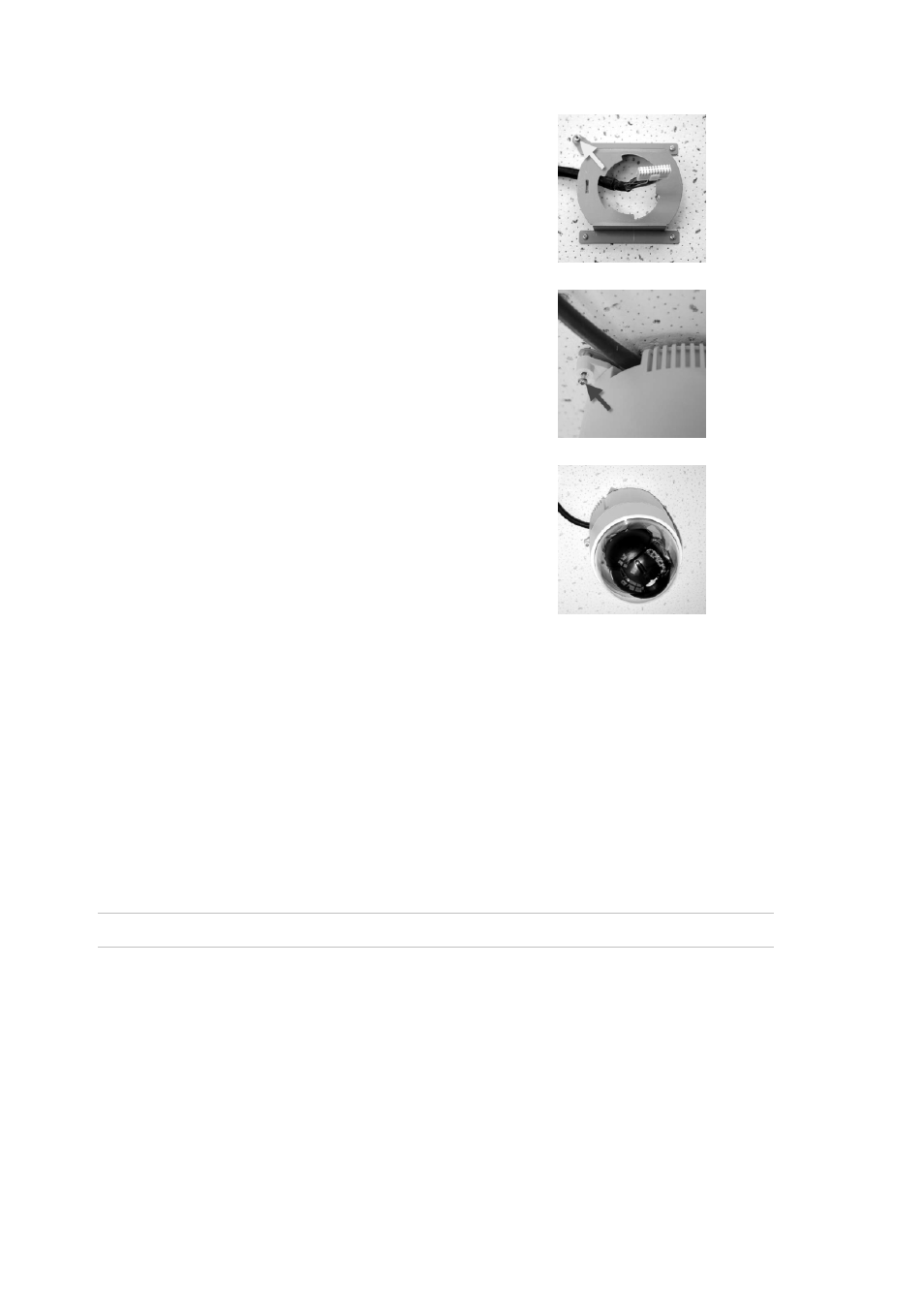

Note: The dome camera’s plastic fixing plate
must align with the mate screw hole on the
mount, as shown.
7. Tighten the fixing screw to securely fix the
dome camera.
8. If the dome camera bubble had been
removed earlier, reattach it now.
The installation is complete.
Mounting the dome camera on a wall
The dome camera can be mounted on a wall using a pendant mount. It is used for
indoor and outdoor use. This mount is ordered separately from the dome camera.
There are two mounting kits available:
 Standard pendant mount (TVP-WM)
 Extended pendant mount (TVP-LWM)
Caution: Complete all installation steps before supplying power to the camera.
Items needed for mounting
A. Dome camera, which is shipped with:
 Outdoor mounting kit (cover and waterproof rubber boot)
 I/O interface cable
 M5 standard/security screws
B. Pendant mount (standard or extended), which is shipped with:
 Sponges
