1BChapter 2: Installation
10 TruVision Mini PTZ 12X Camera User Manual
Setting the dome camera communication
protocol
The TruVision Mini PTZ 12X Camera can use several different protocols for
communication. To select a protocol, you must set the protocol DIP switches to the
correct sequence of 1s (on) and 0s (off).
To set a dome camera protocol using the DIP switches
1. Locate the protocol DIP switch block (A, Figure 3 on page 9).
2. Using Table 3 below, find the DIP switch sequence for the desired protocol and set
the switches accordingly.

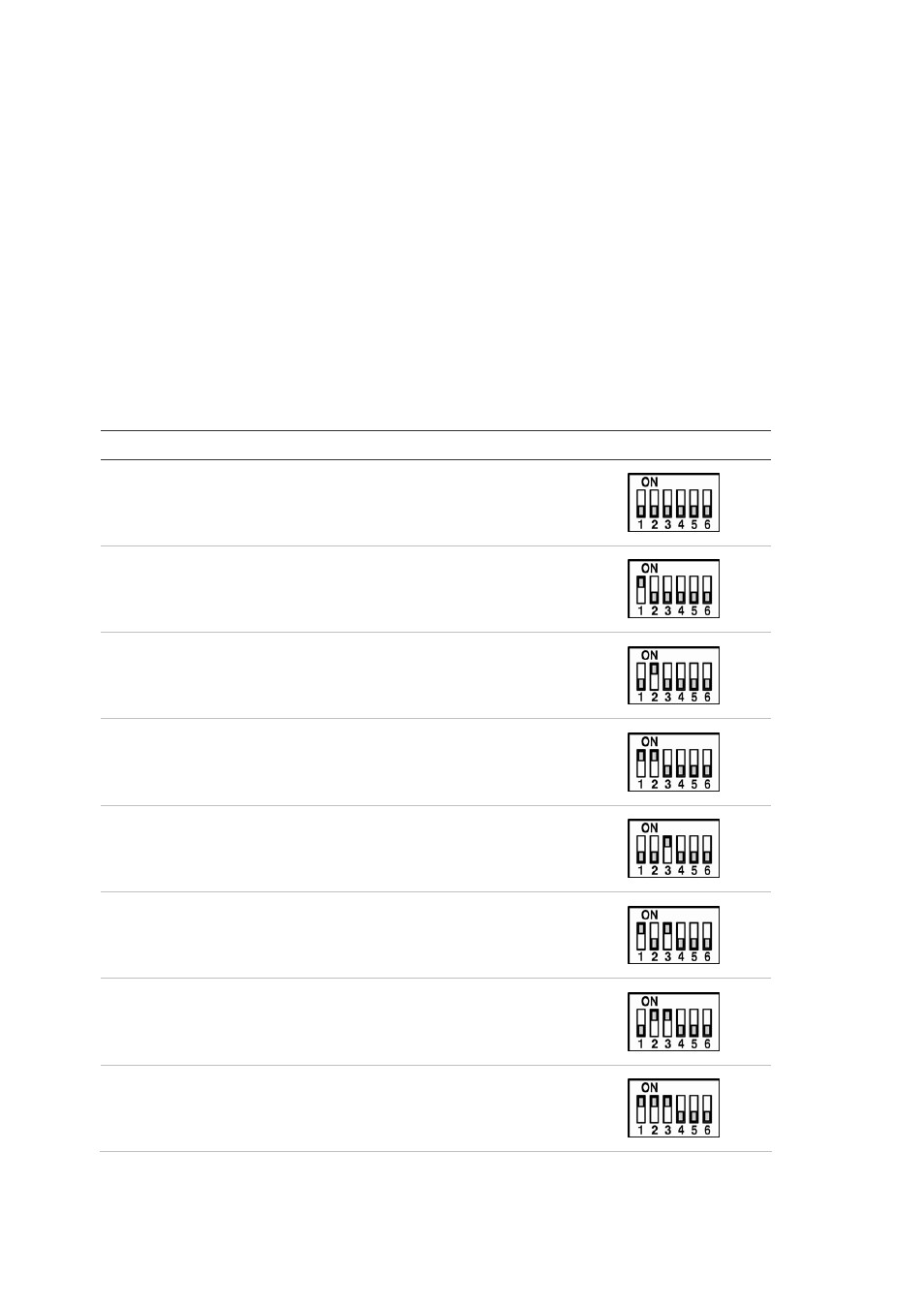

Table 3: Protocols supported
Protocol Baud rate Switch position
GE Impac RS-485 9600 000000
GE Digiplex RS-422 4800 100000
Pelco D 2400 010000
Pelco D 4800 110000
Pelco D 9600 001000
Pelco P 2400 101000
Pelco P 4800 011000
Pelco P 9600 111000
