Exposure, Select the lens – Interlogix TVD-4101 User Manual
Page 10
8
TruVision TVD-2101/4101 Dome Camera User Manual
To access the Main menu:
1. Press the OSD control pad (
Enter
) or Coaxial Control Enter button to access
the Main menu and its submenus.
2. Push the pad up, down, left and right or Coaxial Control TELE, WIDE, NEAR,
and FAR button to move between menu options.
3. Press the OSD control pad Coaxial Control Enter button to select an option.
4. When in a submenu, select
Return
to return to the previous menu.
5. To exit the Main menu, move the cursor to
Exit
at the bottom of the screen
and press
Enter
. All changes are saved.
Select the lens
In the Main menu, go to
Lens
and select the type of lens used with the camera.
Select
DC
to adjust the lens setting manually.

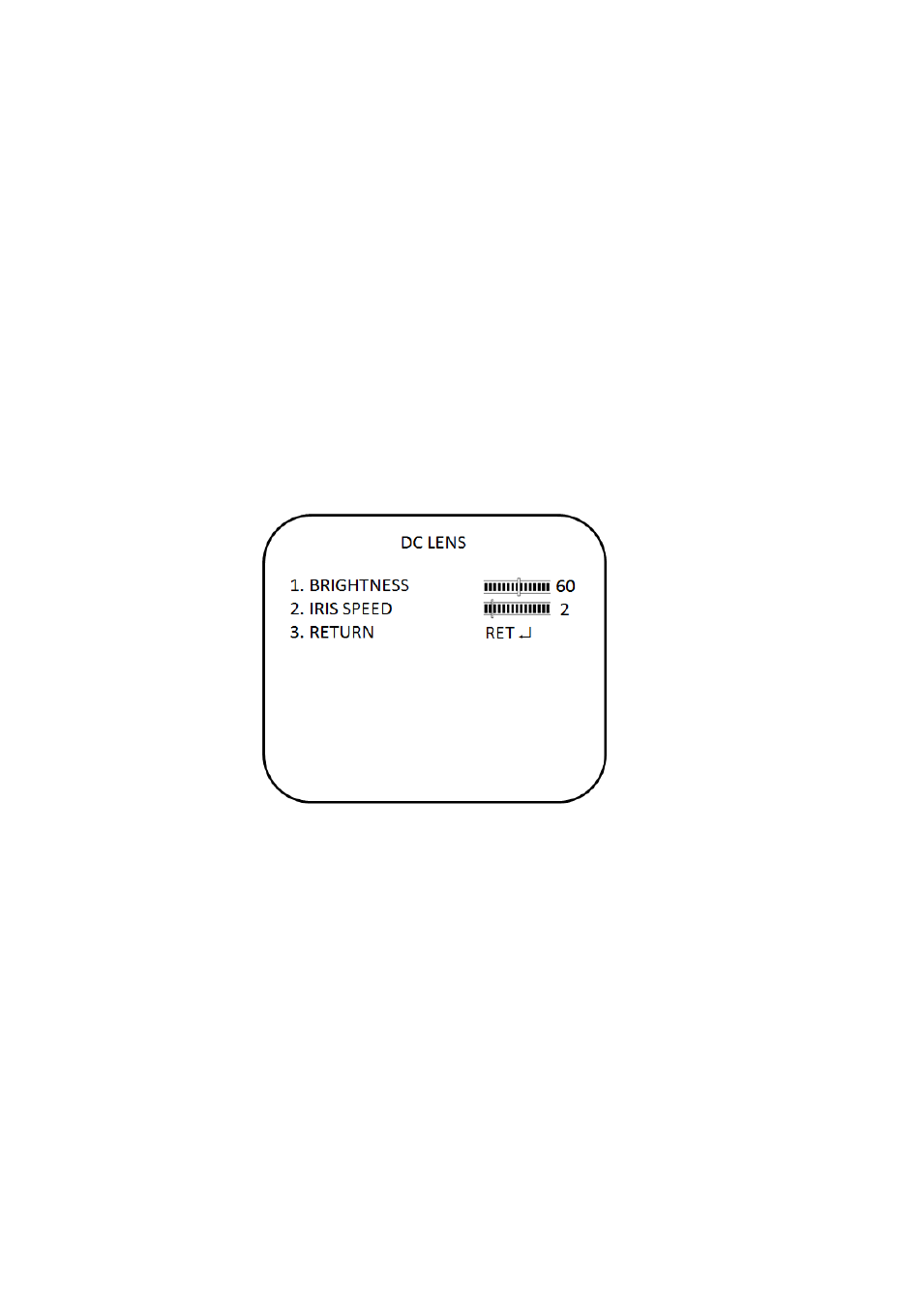

DC Lens menu:
Brightness: Select the Brightness level, value from 1 to 100.
Iris Speed: Select the iris speed, value from 1 and 5.
Exposure
In the Main menu, go to
Exposure
and press Enter. The Exposure menu
appears.
