Fiber optic cable connection specifications, Specifications 13 – Interlogix MC201-1P/1FS User Manual
Page 19
IFS MC201-1P/1FS User Manual 13

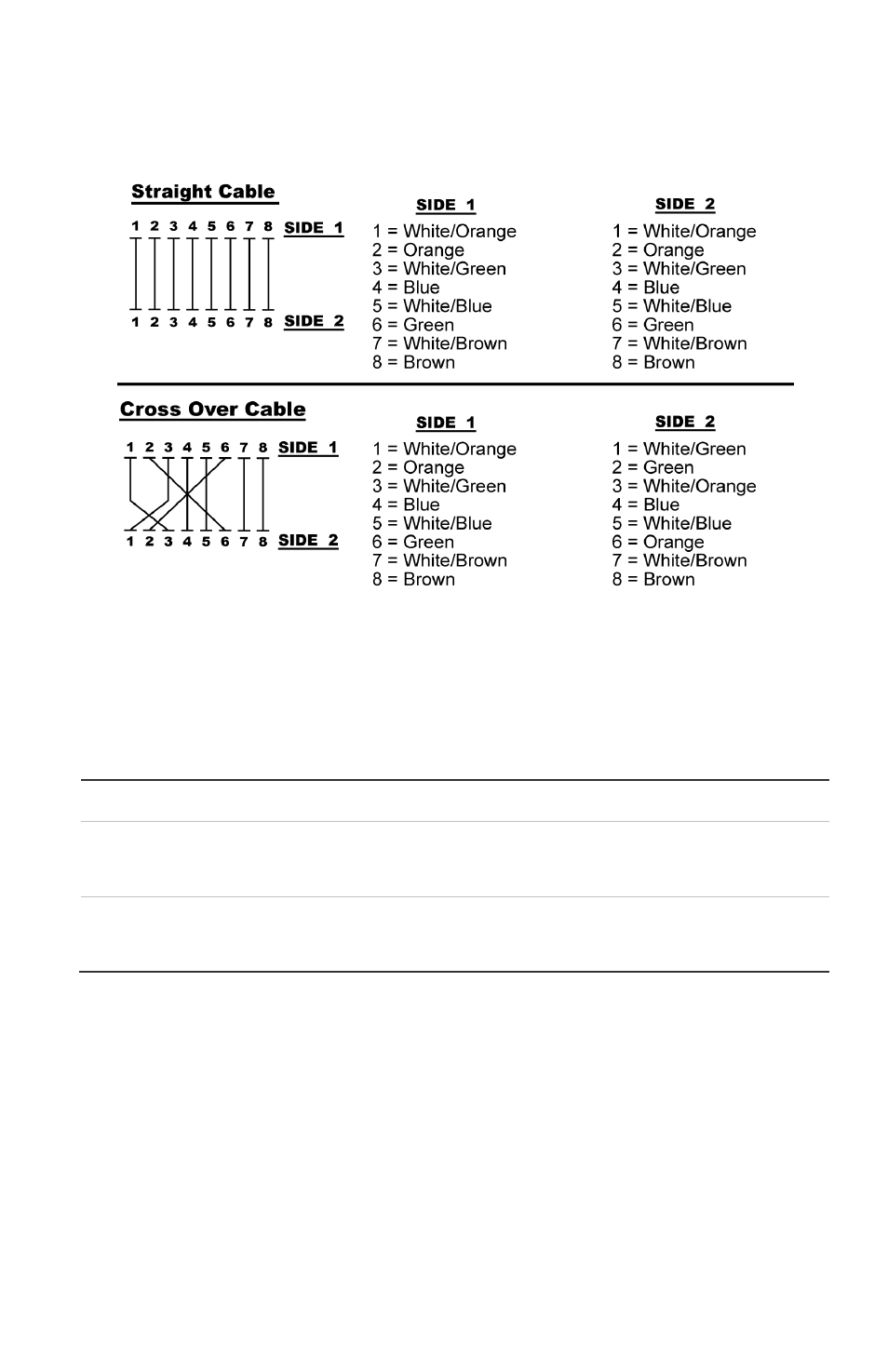

There are 8 wires on a standard UTP/STP cable and each
wire is color-coded. The following shows the pin allocation and
color of straight cable and crossover cable connections:
Fiber Optic Cable Connection Specifications
The optical details are shown below:
Fiber Optical patch Cables:
Standard
Fiber Type
Cable Specification
100Base-FX
(1310nm)
Multi-mode 50/125μm or 62.5/125μm
100Base-FX
(1310nm)
Single-mode 9/125μm
