4 IFS MC201-1P/1FS User Manual

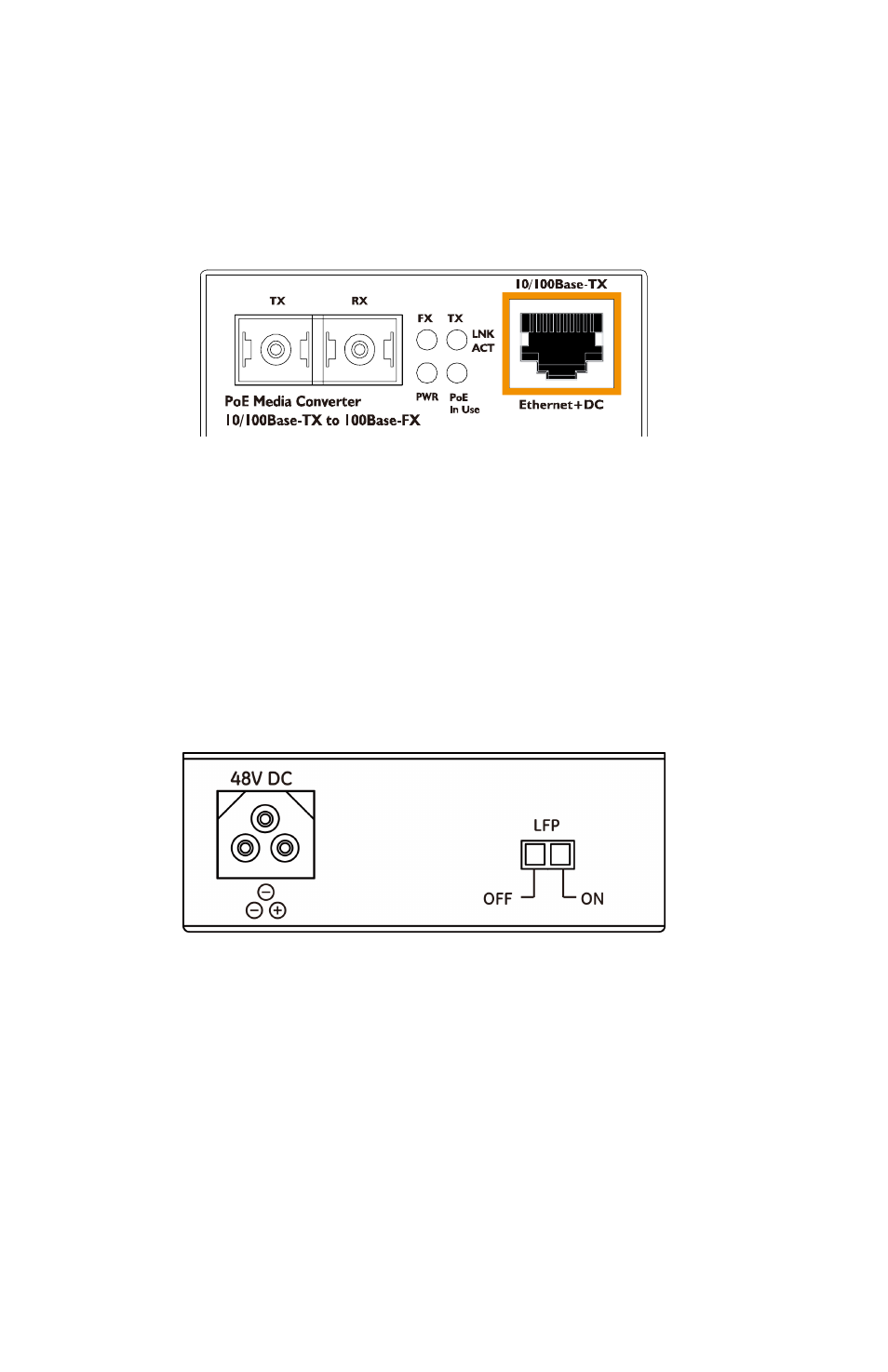

Front Panel

There is one RJ-45 Twisted-Pair jack (Auto-MDI/MDI-X), one
fiber-optic connector and four LED indicators on the MC201-
1P/1S front panel.

Back Panel

There is one DIP switch for turning the Link Fault Pass-
through feature on or off, and 48V DC power input located at
the back panel. The back panel also has one 48 VDC power
socket for the MC201-1P/1S.

Note:

Please make sure that the 48VDC power supply used is

capable to provide 0.32A to support full PoE load.

Link Fault Pass-through (LFP)

The LFP function refers to the Link Fault Pass-through
function (LLCF/LLR) and the DIP Switch design. LLCF/LLR
can immediately notify administrators about a connectivity
problem. The DIP Switch enables or disables the LFP function.
