IFS MCR200-1T-1TW User Guide 7
Hardware Description
The MCR200-1T-1TW provides 2 RJ-11 ports for voice connection (like
telephone) and for network line connection.
The MCR200-1T-1TW also provides 1 RJ-45 port with two different running
speeds –10Mbps and 100Mbps. It can distinguish the speed of an
incoming connection automatically.
This section describes the hardware features of the Ethernet over VDSL2
Converter. For easier control of the converter, familiarize yourself with its
display indicators and ports. Front panel illustrations in this chapter display
the unit LED indicators. Before connecting any network device to the
converter, read this chapter carefully.
Front Panel
The units’ front panel provides a simple interface monitoring the Ethernet
over VDSL2 Converter.

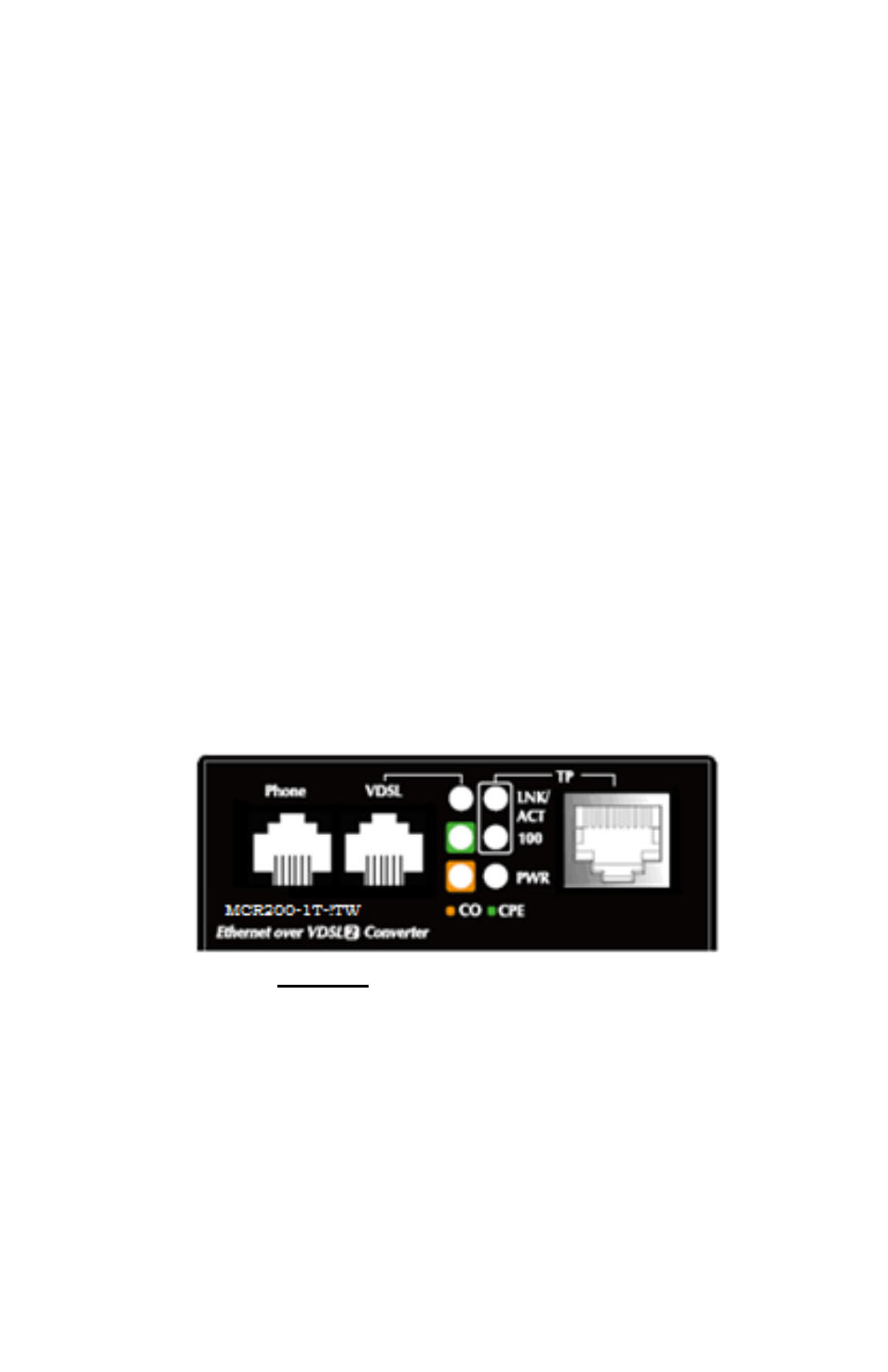

■ MCR200-1T-1TW Front Panel
Figure 1: MCR200-1T-1TW front panel
