2

Port Name

Function

Connection Note

POWER

Power input
port

/

Power port. Input DC 12V or AC 24V.

Please note

z

Connect the DC5.5 round port to 2-pin

converter cable Provided when you are
using AC 24V series product.

z

The DC5.5 round port to 2-pin converter

cable is not included in the accessories
bag if you are using DC 12V series product.


Please refer to the follow sheet for detailed pin information.

Port Name SN

Name

Note

1

ALARM_COM

Alarm output public port.

2

ALARM_NO

Alarm output port. It is to output the alarm signal to
the alarm device.
NO: normal open alarm output port.

3 ALARM_IN1

Alarm input port 1. It is to receive the on-off signal
from the external alarm source.

4

ALARM_IN2

Alarm input port 2. It is to receive the on-off signal
from the external alarm source.

I/O Port

5

GND

Ground port

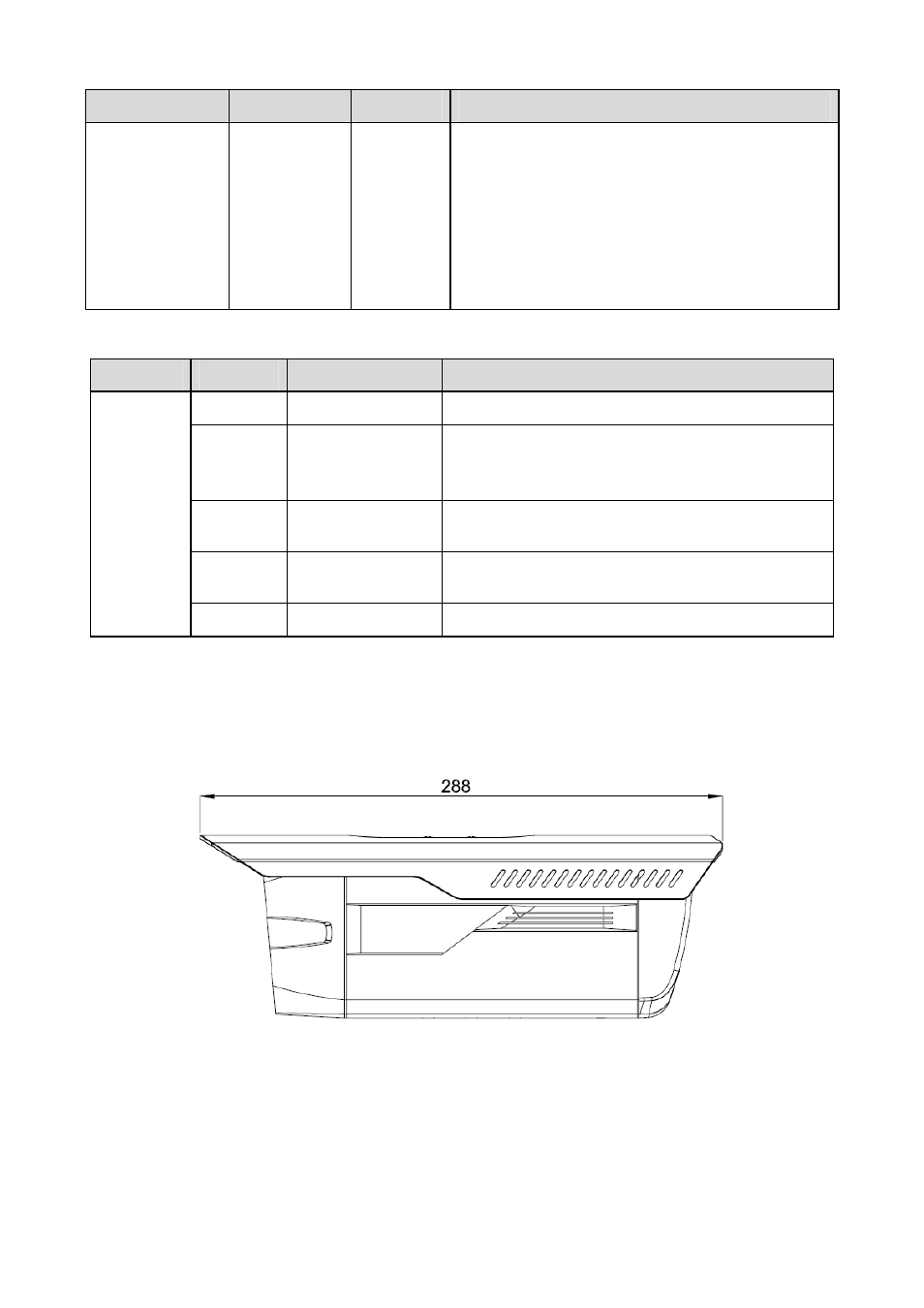

1.2 Framework and Dimension

Please refer to the following figure for dimension information. The unit is mm. See Figure 1-2 and
Figure 1-3.

Figure 1-2
