1
1 Framework

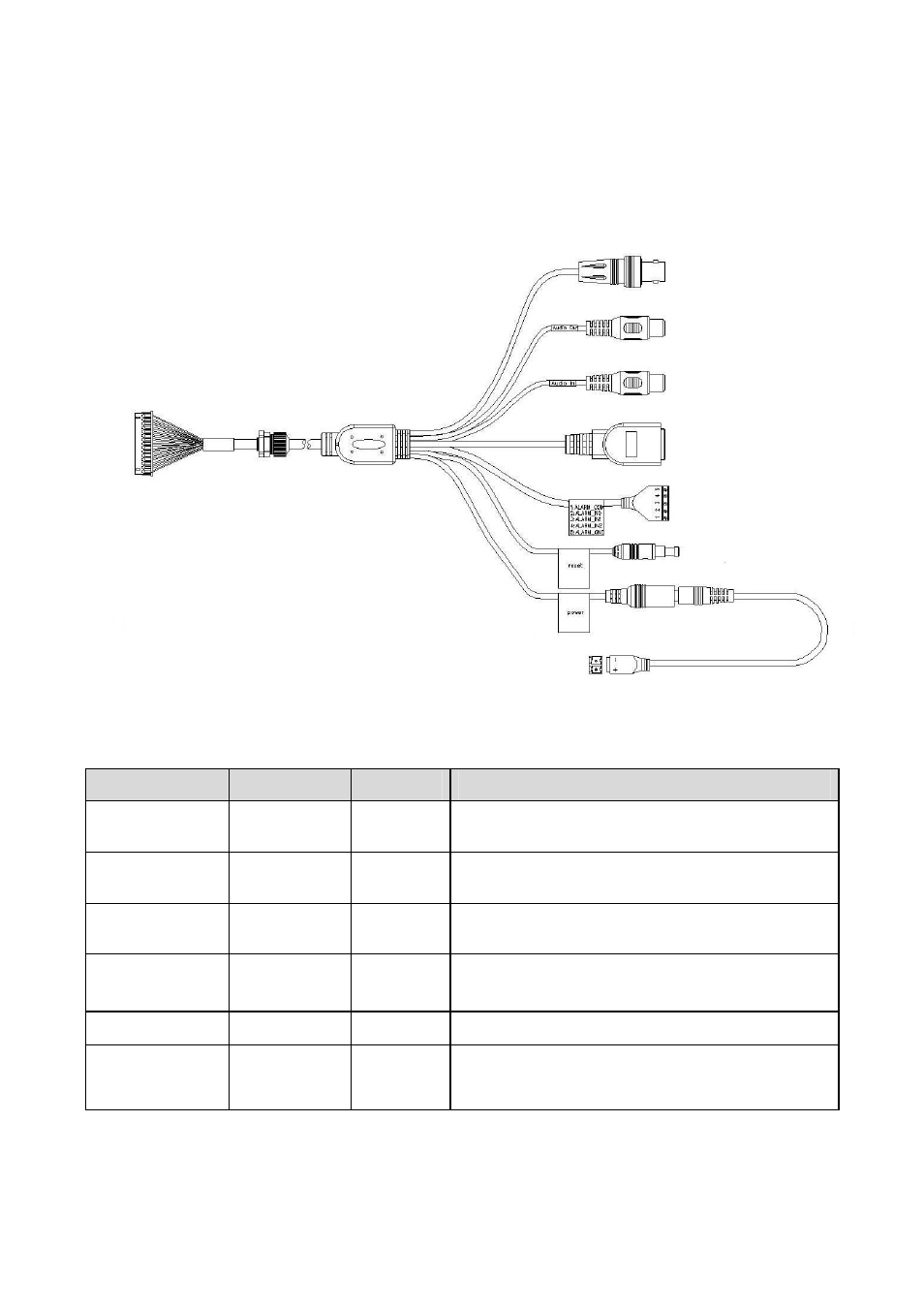

1.1 Multiple-function Combination Cable
You can refer to the following figure for
multiple-function combination cable
information. See
Figure 1-1
.
Figure 1-1
Please refer to the following sheet for detailed information.
Port Name
Function
Connection Note
VIDEO OUT
Video output
port
BNC
Output analog video signal. It can connect to the
TV monitor to view the video.
AUDIO IN
Audio input
port
RCA
Input audio signal. It can receive the analog audio
signal from the pickup.
AUDIO OUT
Audio output
port
RCA
Output audio signal to the devices such as the
sound box.
LAN
Network port
Ethernet
port
z
Connect to standard Ethernet cable.
z
Support
PoE.
I/O
I/O cable port /
Includes alarm input and output.
RESET
Reset button
/
The reset button is to restore device factory default
setup.
