C eptz controls – IC Realtime 2Megapixel HD Network Fish-Eye Camera (ICIPD2360) User Manual
Page 14
I C R E A L T I M E S E C U R I T Y S O L U T I O N S
11
3.c EPTZ Controls
One of the primary features and functions of this series IP Cameras is its virtual Pan/Tilt/Zoom Capabilities. Read on for a step-
by-step guide on how to control the multiple viewing options of the ICIP-D2360.
Before Using the EPTZ function, you must configure the Installation Mode.

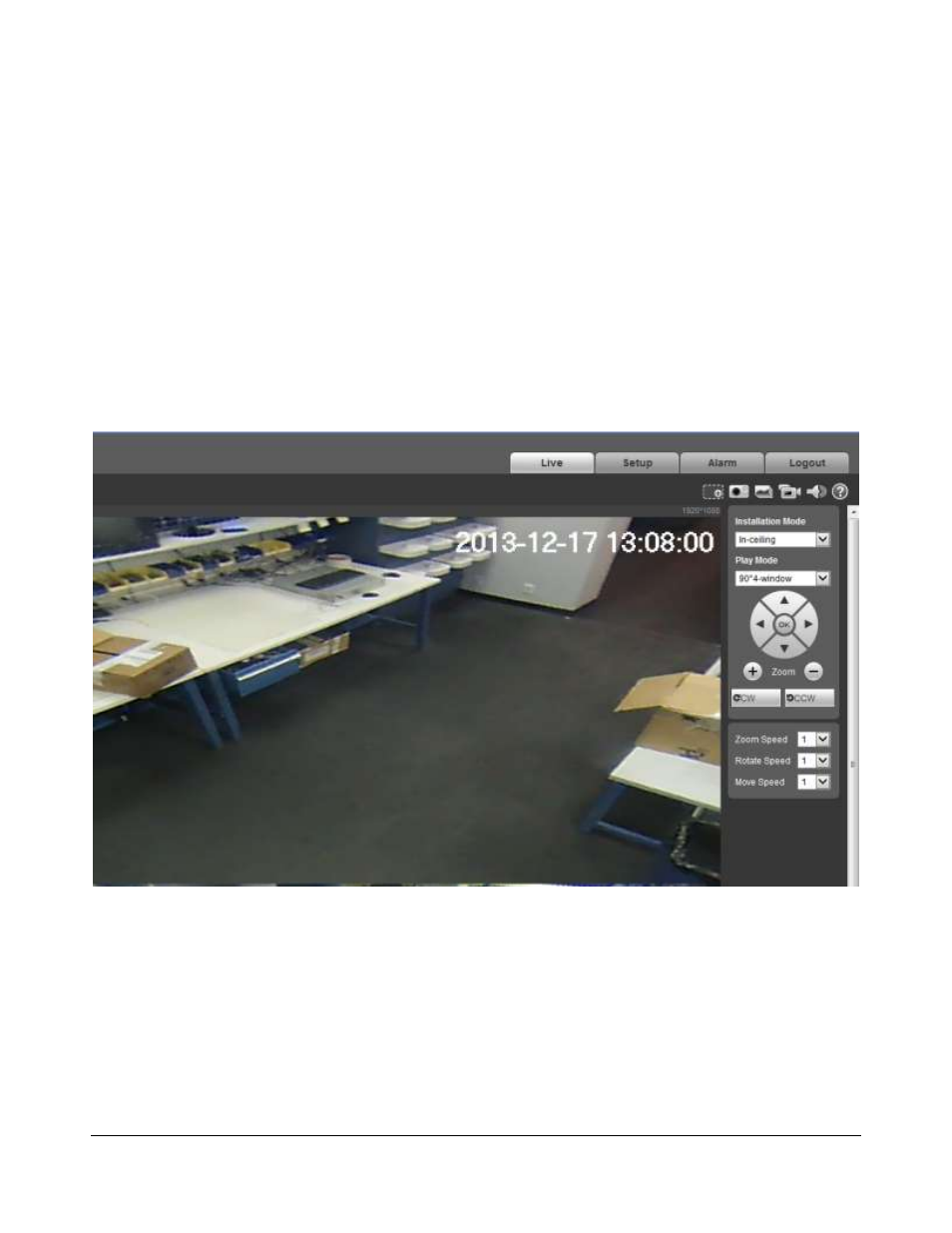

Once logged into the camera, you’ll see options at the top right to choose the Installation mode. Refer to the
image below:
The installation mode has 3 options:
o
Wall Mount: Use this option when the camera has been installed onto a Wall Surface
o
In-Ceiling: Use this option when the camera has been installed in the ceiling, and the camera
is facing down.
o
Ground: Use this option when the camera is mounted or laying on the ground, and the camera
is facing up.
