C sd card installation – IC Realtime 2Megapixel HD Network Fish-Eye Camera (ICIPD2360) User Manual
Page 11
I C R E A L T I M E S E C U R I T Y S O L U T I O N S
8
2.c SD Card Installation
Step 1: Disconnect power source from the IP Camera
SD cards shall not be installed or removed while the camera is powered and operational. Doing so can
potentially result in damage to the camera, and any data stored on the SD card.

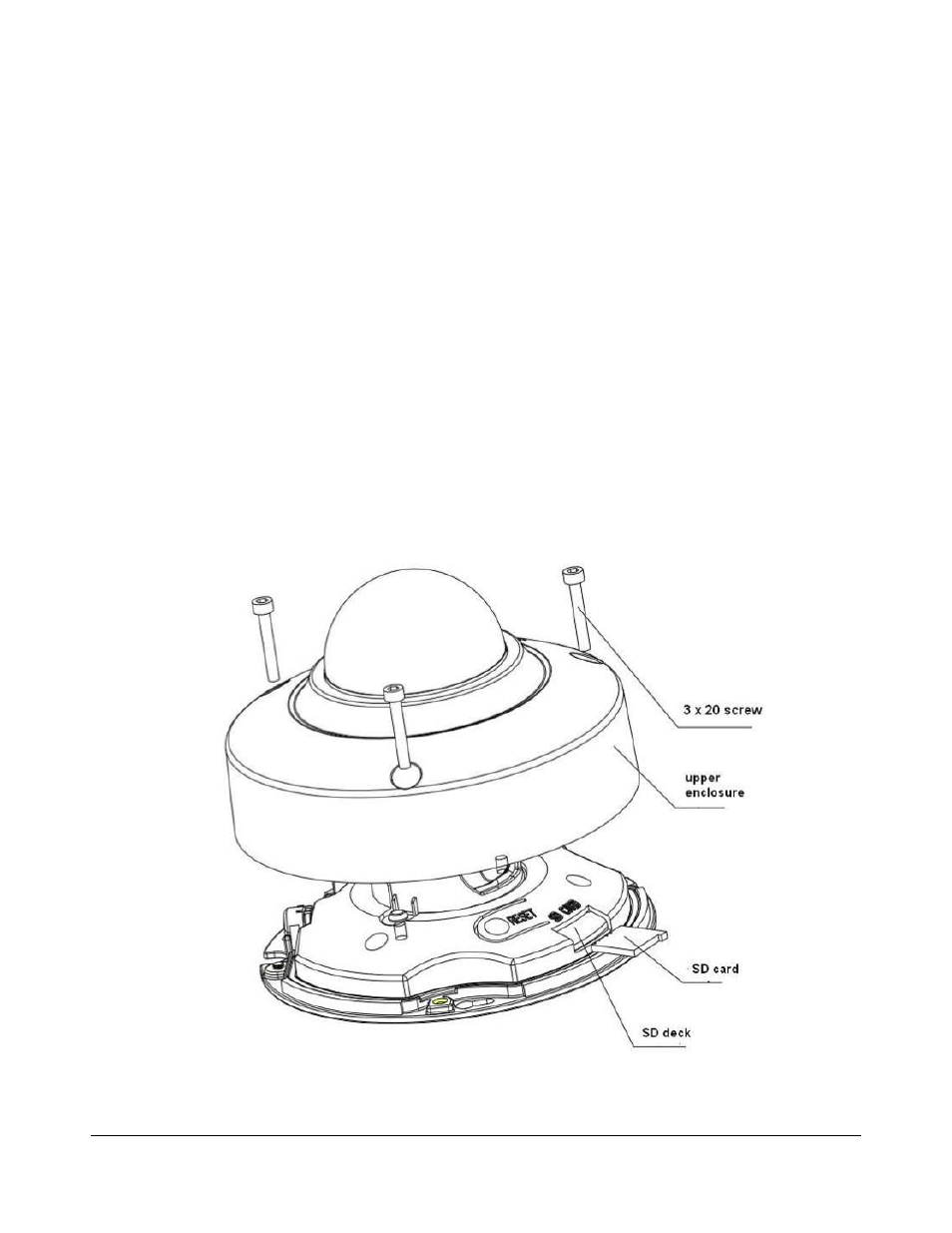

Step 2: Remove the cameras dome cover
Using the included hex wrench from the accessories kit, unfasten the 3 hex screws on the dome camera
enclosure and then remove it..
Step 3: Insert SD card
Look on the base plate of the camera to see the section labeled “SD Card”. Insert your micro SD card (Pin
side down) until it clicks securely into place. At this point you can restore power to the camera, and attache the
dome cover again.
