IC Realtime 1/2/4 Channel H.264 Network Video Server User Manual
Page 29
23

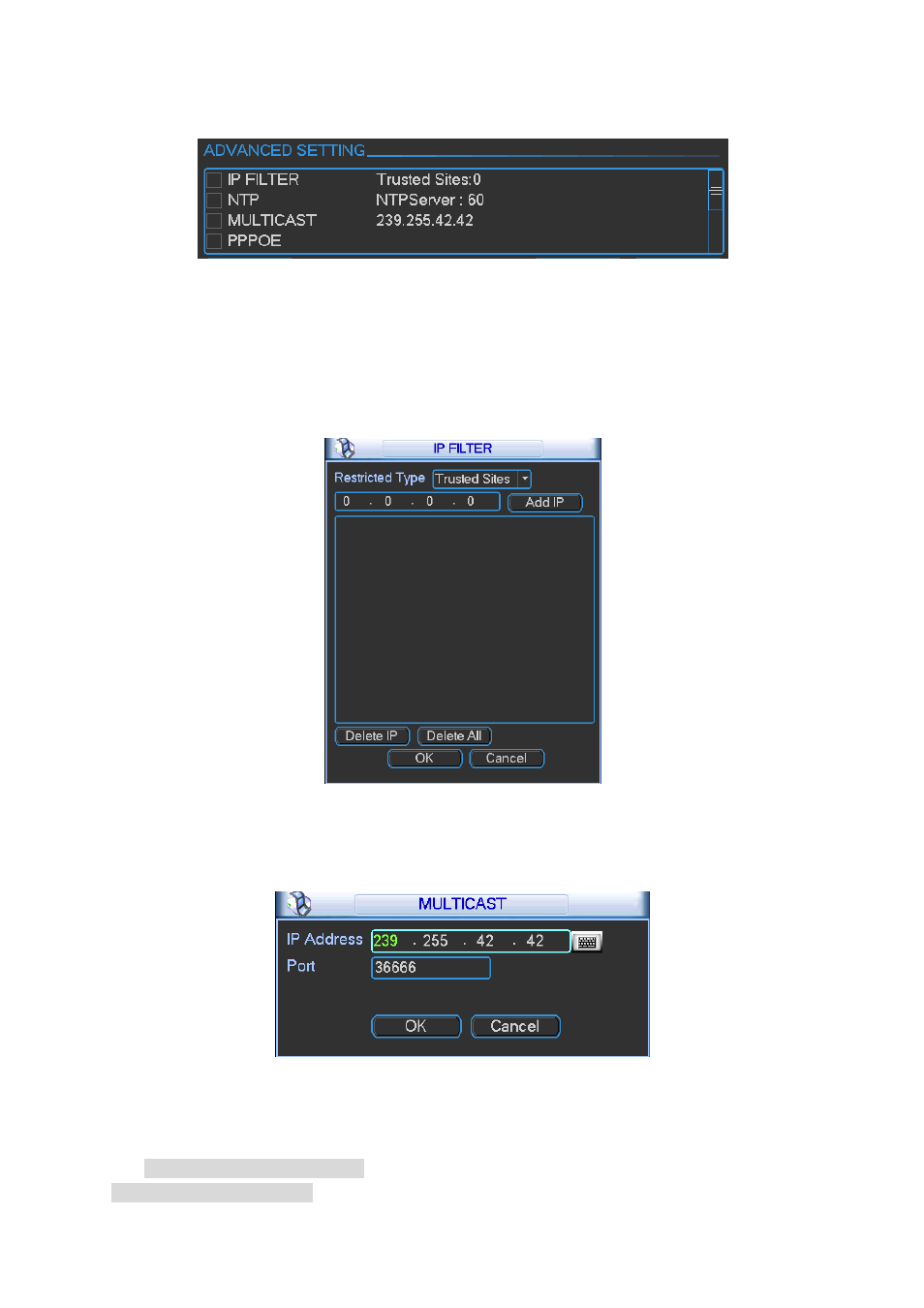

Advanced setup interface is shown as in Figure 4-8. Please draw a circle to enable
corresponding function and then double click current item to go to setup interface.
Figure 4-8
4.4.1.1 IP Filter
IP filter interface is shown as in Figure 4-9. You can add IP in the following list. The list supports
max 64 IP addresses.
Please note after you enabled this function, only the IP listed below can access current NVS.
If you disable this function, all IP addresses can access current NVS.
Figure 4-9
4.4.1.2 Multiple Cast Setup
Multiple-cast setup interface is shown as in Figure 4-10.
Figure 4-10
Here you can set a multiple cast group. Please refer to the following sheet for detailed
information.
IP multiple cast group address
-224.0.0.0-239.255.255.255
