 Resolution: System supports various resolutions, you can select from the dropdown list. For

this model, main stream supports D1 (PAL: 25f/s. NTSC: 30f/s.)/HD1/2CIF/CIF/QCIF. The

extra stream supports CIF/QCIF. Please note the resolution may vary due to different

channels.

 Frame rate: It ranges from 1f/s to 25f/s in PAL mode and 1f/s to 30f/s in NTSC mode.
 Bit rate type: System supports two types: CBR and VBR. In VBR mode, you can set video

quality.

 Quality: There are six levels ranging from 1 to 6. The sixth level has the highest image

quality.

 Video/audio: You can enable or disable the video/audio.
 Overlay: Click overlay button, you can see an interface is shown in Figure 4-4.
 Cover area (Privacy mask): Here is for you to set privacy mask section. You can drag you

mouse to set proper section size. In one channel video, system max supports 4 zones.

 Preview/monitor: privacy mask has two types. Preview and Monitor. Preview means the

privacy mask zone can not be viewed by user when system is in preview status. Monitor

means the privacy mask zone can not be view by the user when system is in monitor status.

 Time display: You can select system displays time or not when you playback. Please click

set button and then drag the title to the corresponding position in the screen.

 Channel display: You can select system displays channel number or not when you playback.

Please click set button and then drag the title to the corresponding position in the screen.

Please highlight icon

to select the corresponding function.

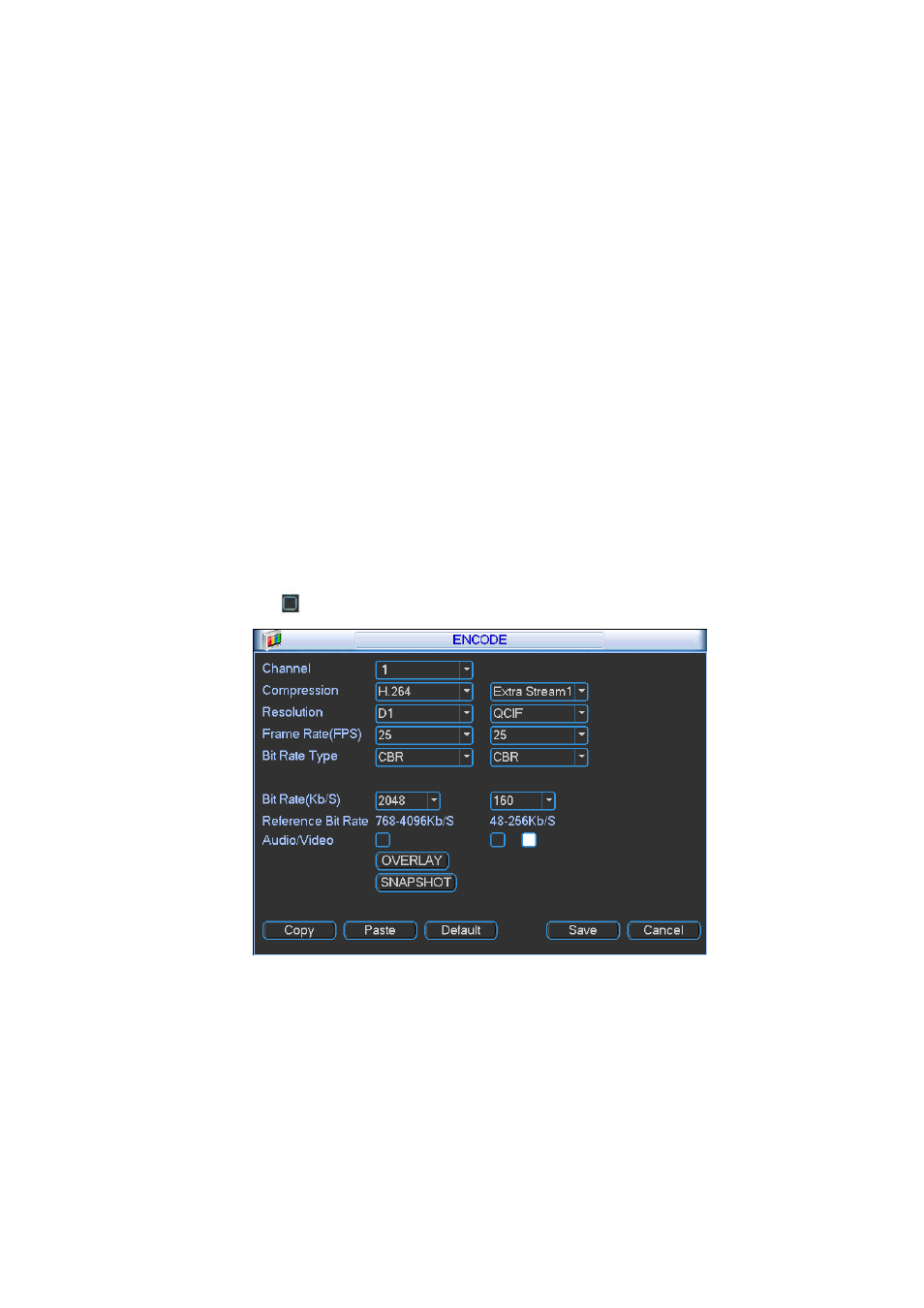

Figure 4-3
