The

Haltech CAN Network

The Haltech CAN network allows for simple and effective expansion in ECU capability
and functionality without having to go to the trouble of wiring in a whole new computer.

Expansion is made possible by the addition of multiple expansion devices that
communicate to the main ECU via a Control Area Network (CAN).

Installation time and costs are kept to a minimum as all expansion devices are
powered up from the main ECU via the pre-terminated connection cable that comes
with each expansion device.
Simply connect the device directly to the 8 pin CAN connector on the rear of the ECU
or connect using an optional Haltech CAN Hub (order as part # HT059990) if multiple
expansion devices are required).

Each expansion device is pre-programmed with a unique ID code which allows it to
be recognised on the network and work correctly first time every time.

For current available expansion devices please go to our website at

www.haltech.com

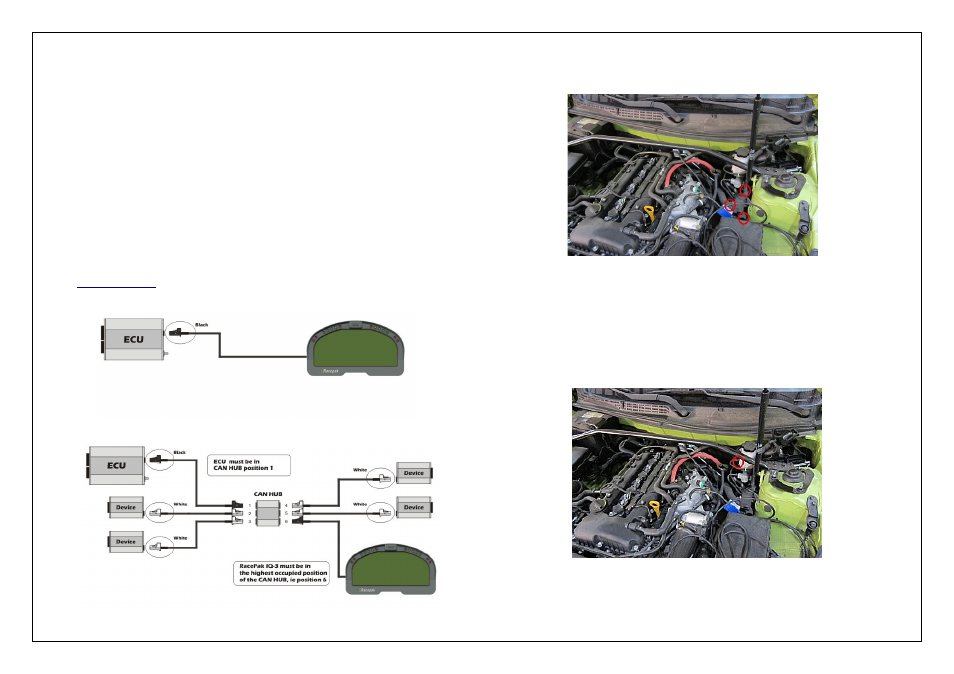

Figure 15– Haltech ECU connected to a Racepak Dash

Figure 17 – Haltech ECU connected to 5 Auxiliary CAN based devices

3.

Cut the two zip ties that are holding the wiring harness to the plastic junction box and
then undo the bolt holding the junction box to the vehicle.

Figure 3 – Factory Harness mounting points

4.

Remove the wiring harness from the plastic junction box and set box aside
(you will no longer require this component).
Remove the brake fluid level sensor wire and install the provided extension harness.

Figure 4 – Brake Fluid Level Sensor Connector
