Guardian Technologies GGU350 - Manual (Page 7)

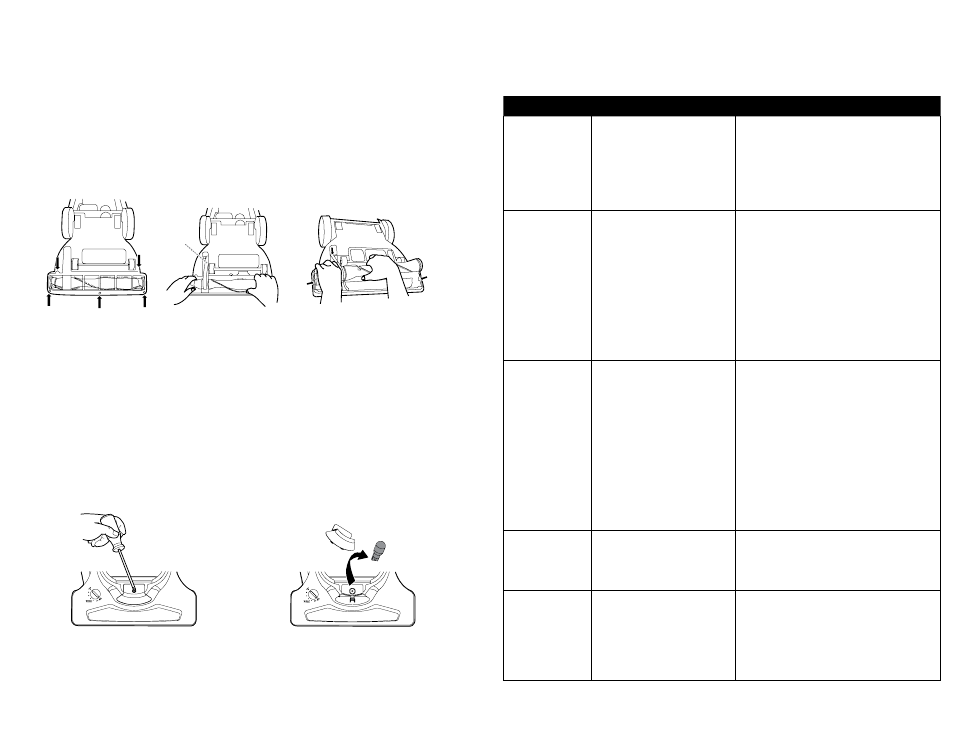

BELT REPLACEMENT
WARNING: BEFoRE REPLACING THE BELT, MAKE SURE THE CLEANER
IS UNPLUGGED FRoM THE ELECTRICAL oUTLET.
• Turn oFF the cleaner and unplug from electrical outlet.
• remove the bottom plate of the base by removing the five (5) screws using a
phillips screwdriver. (Fig. 25)
• Set the new belt over motor pulley. (Fig. 26) use replacement belt: BLT1.
• Slip the brush roll into the belt and reassemble. (Fig. 27)
• replace the bottom plate and secure the 5 screws.
Fig. 25 Fig. 26 Fig. 27
Motor Pulley
HEADLIGHT REPLACEMENT
WARNING: BEFoRE REPLACING THE HEADLIGHT, MAKE SURE THE CLEANER
IS UNPLUGGED FRoM THE ELECTRICAL oUTLET.
• Turn oFF the cleaner and unplug from electrical outlet.
• press the handle release pedal and use the handle to place the body in a flat position.
• remove the headlight cover by removing the screw with a phillips screwdriver. (Fig. 28)
• pull the bulb straight out of the socket. (Fig. 29)
• install the new bulb, model lbu.
• replace the headlight cover and secure the screw.
Fig. 28 Fig. 29
NoTE: Replacement parts can be purchased by calling
1.866.603.5900 or by visiting www.guardiantechnologies.com.
Headlight
Cover
Headlight
TRoUBLESHooTING GUIDE
Please check each item below if you have trouble with your vacuum.
Before checking, always ensure that the vacuum is unplugged from the power supply.
PRoBLEM PRoBLEM SoLUTIoN
Vacuum won't run. 1. Power cord not firmly plugged
into the outlet.
2. Motor protector tripped.
3. Needs service.
1. Plug in unit firmly.
2. Cool down and press the RESET button.
(See page 3)
3. Take to service center or call 1.866.603.5900.
Brush roll won't spin. 1. Vacuum is not in the
UPRIGHT mode.
2. Brush switch is OFF.
3. Brush roll is jammed.
4. Belt is broken or off
motor pulley.
1. The brush only turns on when the handle is
released for vacuuming. The brush does not come
on in the UPRIGHT position even if the switch is
ON. Depress handle for brushroll to start turning.
2. Make sure the brush switch is ON.
3. Remove it and clean debris, hair, etc. off of
brush, then replace.
4. Replace the new belt or correct the belt's securing.
(See page 11)
Vacuum or tool won't
pick up dirt.
1. Incorrect height setting.
2. Hose not attached to:
A. Inlet
B. Base.
3. Clogged hose.
4. Dirt cup is full.
5. Inner filter is blocked.
6. Crack or hole in hose.
1. Rotate height adjustment knob to correct height
setting. (See page 6)
2A. Check hose connection and make sure it is
attached to proper inlet: base inlet on body
(UPRIGHT) or inlet on handle (CANISTER/TOOLS).
2B. Grasp hose tube and firmly push onto base.
3. Try to remove clog by squeezing out of hose.
4. Empty dirt cup (see page 9); if washed, after
dried well, reinsert it.
5. Clean or replace with new. (See page 10)
6. Take to service center or call 1.866.603.5900.
Vacuum is difficult
to push.
1. Incorrect height setting.
2. Brush switch is OFF.
1. Rotate height adjustment knob to correct height
setting. (See page 6)
2. Make sure the brush switch is ON.
Visible dust escaping
from vacuum.
1. Dirt cup is full.
2. Filter missing or incorrectly
installed.
3. Dirt cup installed incorrectly.
1. Empty dirt cup (see page 9); wash it, after dried
well, replace it.
2. Check inner filter and exhaust filter for
correct installation.
3. Pull out and re-insert dirt cup correctly.
