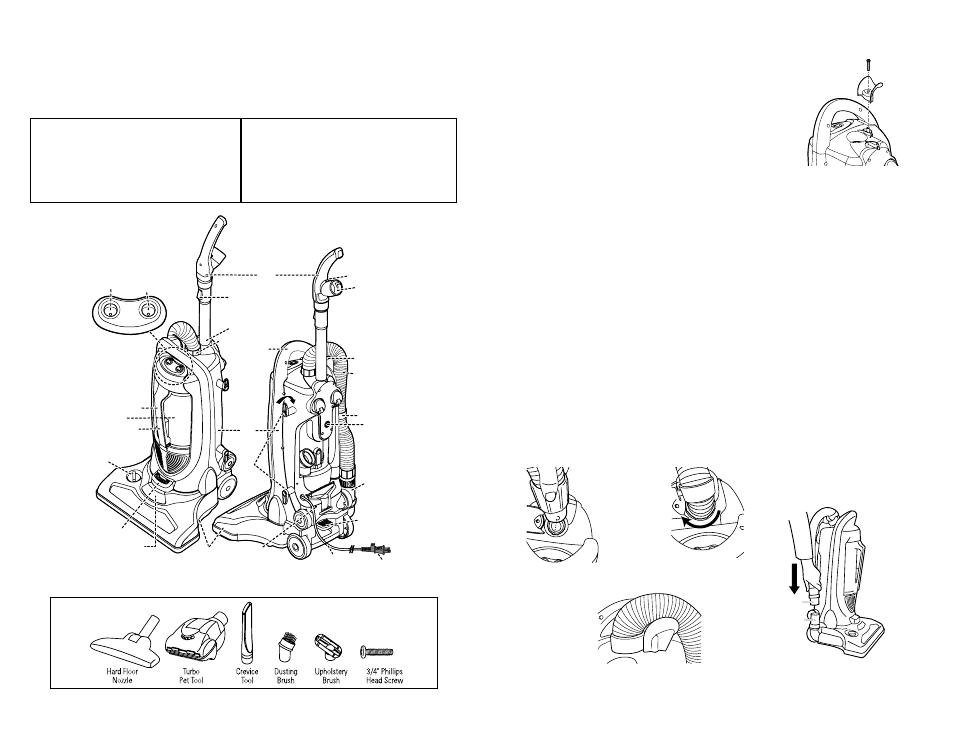

plEaSE rEad all inSTrucTionS bEForE uSing ThiS appliancE
HoSE CRADLE ASSEMBLy
HoSE CRADLE ASSEMBLy
•
Set hose cradle on the top of the cleaner. (Fig. 1)
•
using a phillips screwdriver, secure the 3/4-inch screw.
HoSE ASSEMBLy
•
insert the body end of the hose into the hose inlet on the top of the cleaner. (Fig. 2)
•
line up circular tab on hose cuff with inner groove. (Fig. 2)
•
connect and twist clockwise to secure proper hose connection. (Fig.3)
•
place hose in hose cradle. (Fig. 4)
•
insert the base end of the hose into the hose inlet on the base of the cleaner. (Fig. 5)
IMPoRTANT: hose must be connected to inlet on base of vacuum to work in the uprighT
mode.
E-4
E-5
WARNING! Do not use the Dirt Cup Handle to move the cleaner.
THERMAL RESET BUTToN:
Operates due to overheating, caused by a full dirt cup, clogged filter or blocked pipes.
Unplug the cleaner and remove the blocked materials. To operate again, after
cooling down the cleaner about 30 minutes, press the Thermal Reset Button.
Model .................................................. GGU350TT
Rating .................................................. 120V/60Hz
Amperage ............................................... 12 amps
Weight (Net) .......................................... 20.50 lbs
Dimensions ............................. 15" x 14" x 45.25"
Cord Length .............................................. 32 feet
Inner Filter .......................................... HEPA Filter
Exhaust Filter .................................. Micron Filter
Headlight ......................................................... Yes
Belt .................................................................... Yes
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5
Height
Setting
Control
P
O W
E R
B R
US
H
Main Power
Switch
Brush Power
Switch
Handle
Handle
Extension
Button
Handle Inlet
Hose Connector
Canister
Handle
Body
Dirt Cup
Dirt Cup Handle
Filter
Height Adjustment
Knob
Canister
Release Pedal
Headlight
Base
Thermal Reset
Button
Cord
Plug
Handle Release
Pedal
Base Hose
Connector
(UPRIGHT MODE)
Handle Removal
Button
Hose Clip
Hose
Hose Cradle
Handle Hose Connector
(TOOLS/CANISTER MODE)
Cord Clip
VACUUM ASSEMBLy: UPRIGHT USE
HoSE ASSEMBLy
Cord
Storage
Hooks
Hose
Base Hose
Connector
