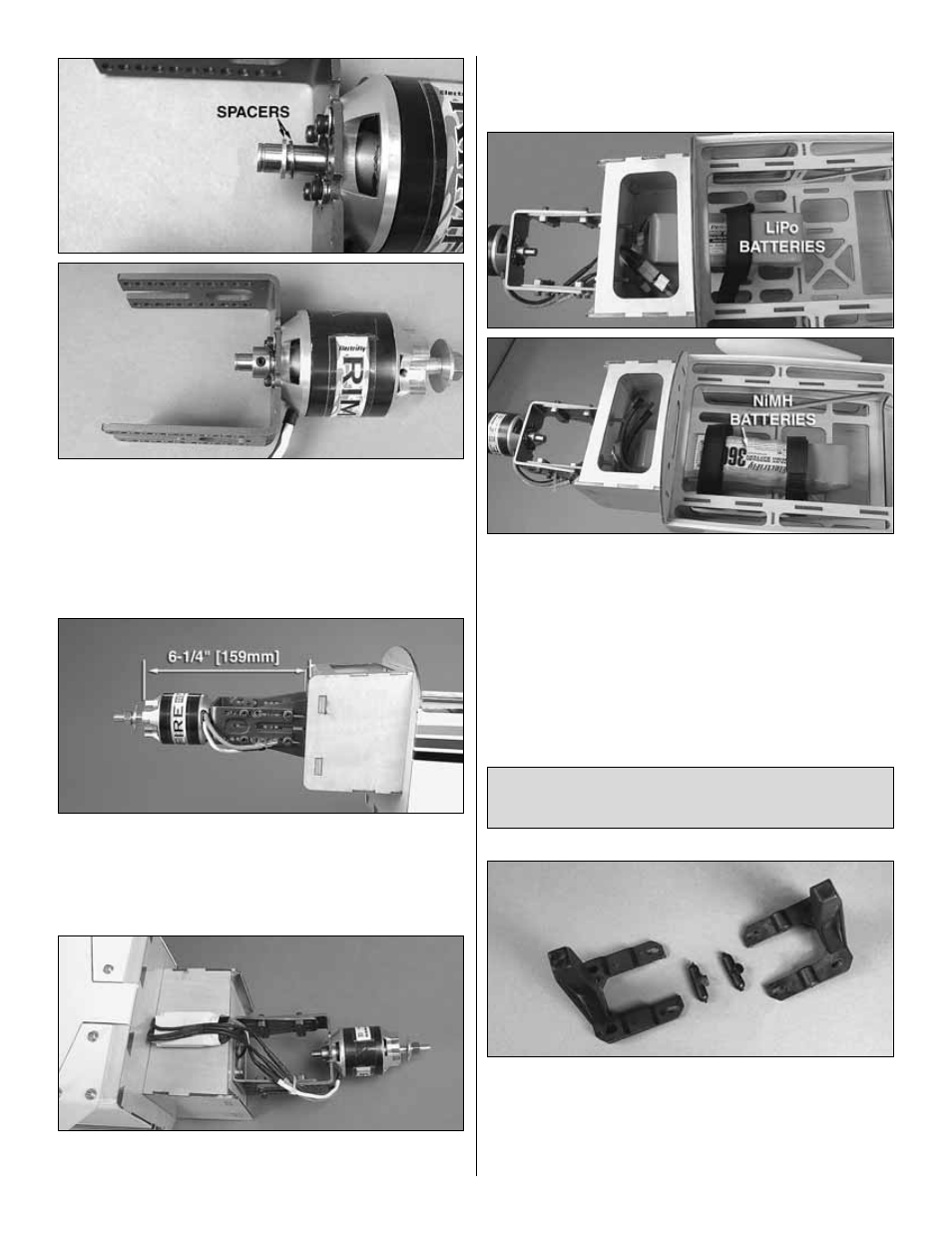

3. Slide two spacers over the motor shaft followed by the
collar. Apply a drop of threadlocker to the set screw, and
then tighten the set screw against the shaft.
❏
4. Mount the rear half of the motor mount to the firewall
with four 8-32 x 1" [25mm] SHCS, #8 flat washers and #8
lock washers.
❏
5. Re-install the front half of the motor mount to the rear
half of the mount that has been installed on the firewall.
Position the motor so the distance from the front of the
firewall to the front of the prop adapter drive washer is
6-1/4" [159mm].
❏
6. Mount the ESC on the bottom of the firewall box
following the instructions that come with the ESC. Note: At
the time this manual was written, changes were being made
to the appearance of the ESC. Your ESC may not look the
same as the one in the photo.
❏
7. When installing the batteries for the motor, you can
hold them in place with the Velcro ® provided in the kit. Note:
If you will be installing the NiMH batteries, you can see that
they extend into the radio compartment area. We have made
provision for this and it will be addressed in the radio
installation section of this manual. Skip ahead to page 16,
step 11.
❏
1. Cut the tabs from the engine mount.
❏
2. Install the engine mount to the firewall using four each,
8-32 x 1" [25mm] SHCS, #8 flat washers and #8 lock
washers. When installing the mount, use your engine to
determine the spacing needed for the mounting rails.
Install the Glow Engine, Fuel Tank
& Throttle Servo
