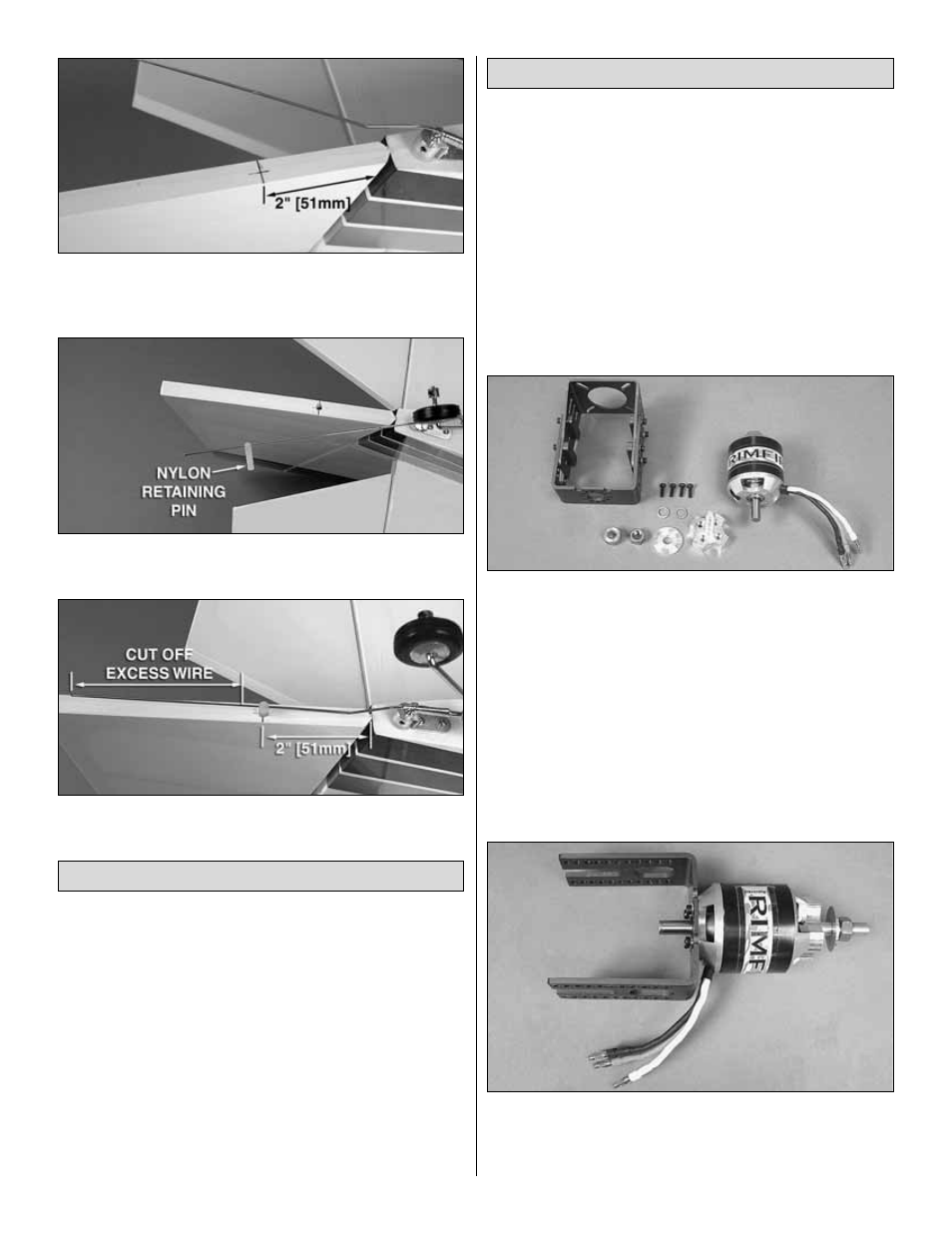

10. From the LE of the rudder measure back 2" [51mm]
and make a mark. Drill a 5/32" [4mm] hole into the rudder on
the mark.
❏
11. Locate the nylon retaining pin and slide it onto the
wire on the end of the tail wheel assembly.
❏
12. Glue the pin into the hole in the rudder. Cut off the
excess wire from the tail wheel assembly.
We are providing instructions for the installation of an
electric motor and ESC as well as the installation of a glow
engine. You should determine which you will be using before
you continue. Though the engine or the motor will mount in
a similar manner, the servos are installed differently for an
electric motor than they are for a glow engine. If you will be
installing a glow engine, skip ahead to “
Install the Glow
Engine, Fuel Tank and Throttle Servo Installation” on
page 14.
Note: The recommended components for this installation
can be found at the
“Electric Motor and Motor Mount
Recommendations” section of this instruction manual on
page 4.
❏
1. Locate the components of the electric power system
including the motor, two spacers, wheel collar, prop adapter,
mounting screws and the motor mount.
❏
2. Remove the front half of the motor mount and install
the motor to the mount and the prop adapter to the front of
the motor with four 3 x 8mm MS (not included). Be sure to
use a drop of threadlocker on each of the bolts.
Electric Motor, ESC & Battery Installation
Electric Motor / Glow Engine Installation
13
