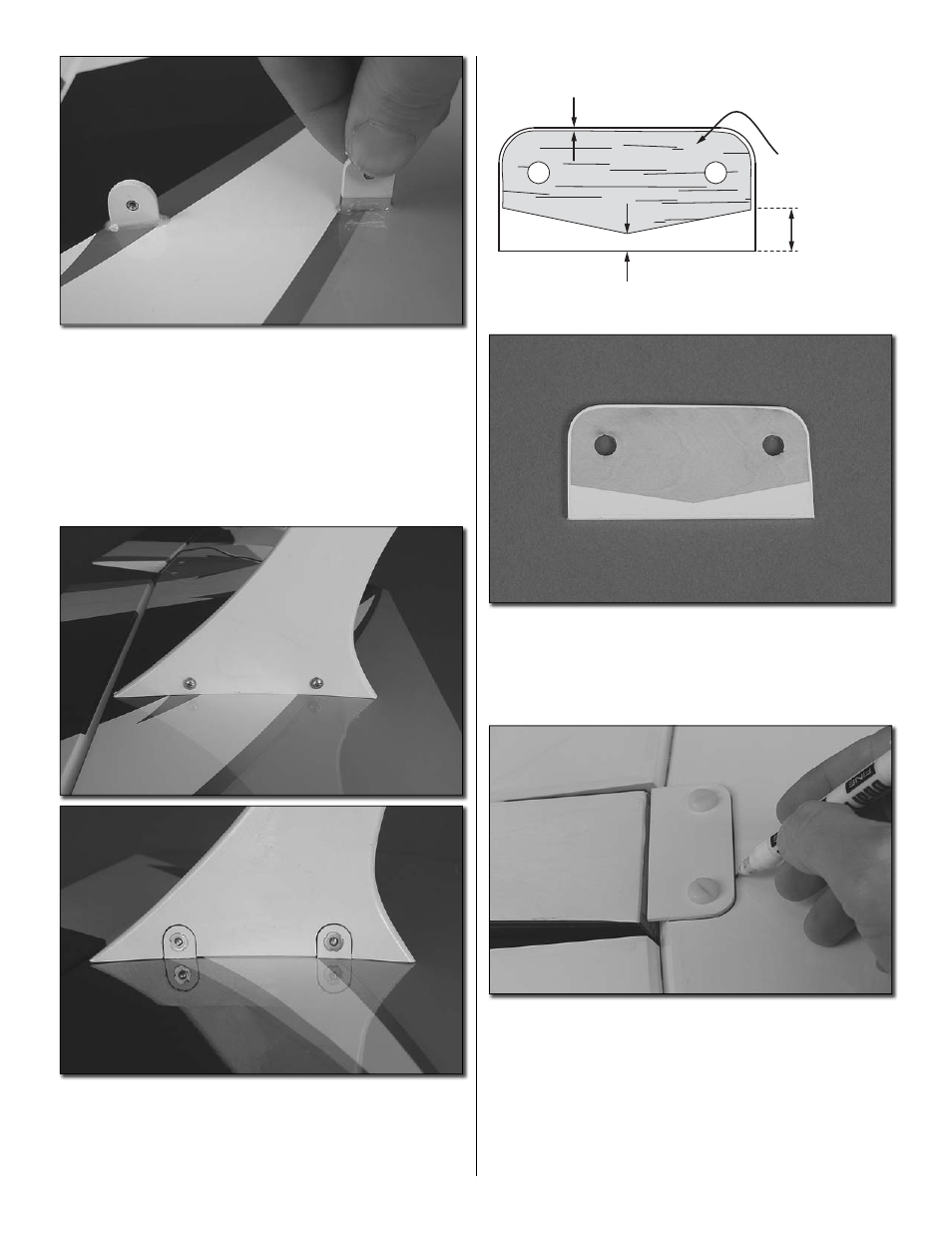

3. Remove the tabs. Apply 30-minute epoxy in the slots
in the wing and to the tabs. Push the tabs into the slots.
Wipe away any excess epoxy that squeezes out. Proceed
immediately to the next step.
❏
4. Temporarily fasten the bottom of the wing struts to
the tabs with four 4-40 x 3/8" [9.5mm] Phillips screws and
#4 fl at washers. Push the wing struts all the way down to the
wing to make sure the tabs are set correctly. Allow the epoxy
to harden.
WING BOLT PLATE
REMOVE THE
COVERING
7/16"
[11.1mm]
1/16"
[2mm]
3/16"
[4.8mm]
❏
5. Cut the covering from one side of the plywood wing
bolt plate as shown.
❏
6. Bolt the bottom wing to the fuselage with the wing bolt
plate. Use a fi ne-point felt-tip pen to mark the outline of the
wing bolt plate onto the bottom of the wing.
