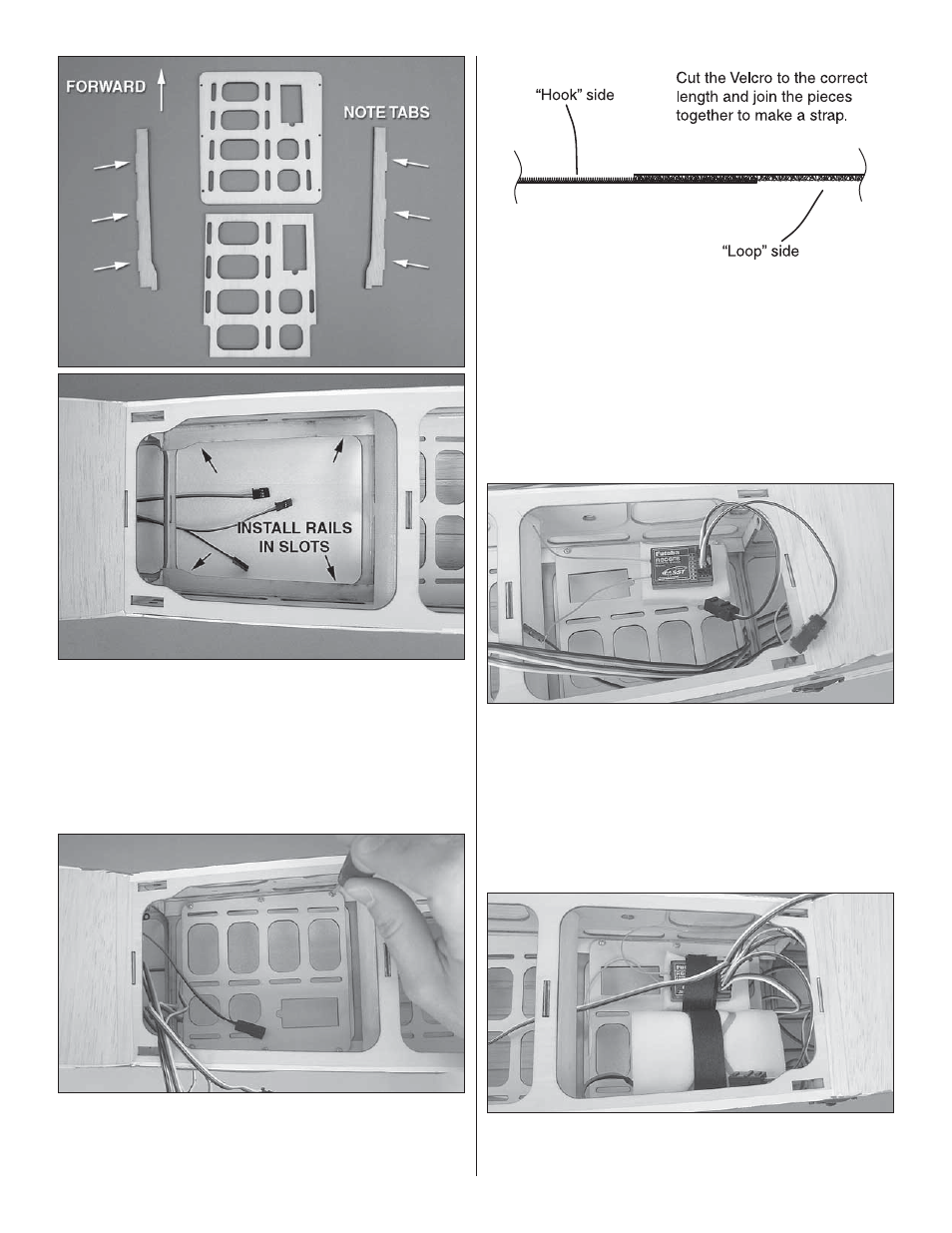

6. Locate the aft equipment tray and the two side rails.
Align the tabs on each rail with the corresponding slots in the
fuselage and glue each rail in place as shown.
❏
7. Position the aft equipment tray in the aft bay and use a
1/16" [1.6mm] drill bit to drill six pilot holes through the side
rails. Use six #2 x 3/8" [10mm] sheet metal screws with six
#2 washers to attach the aft equipment tray.
❏
8. Locate the non-adhesive backed hook and loop
material. Make two sets of straps for your receiver and
battery by joining a piece of “hook” material to a piece of
“loop” material.
❏
9. Connect a Y-connector to each aileron channel.
Connect the other servo leads, the battery switch, and your
ESC signal lead to your receiver.
❏
10. Wrap your receiver and battery pack with 1/4" [6.4mm]
thick latex foam. Use the straps you made to mount your
battery and receiver to the aft equipment tray.
