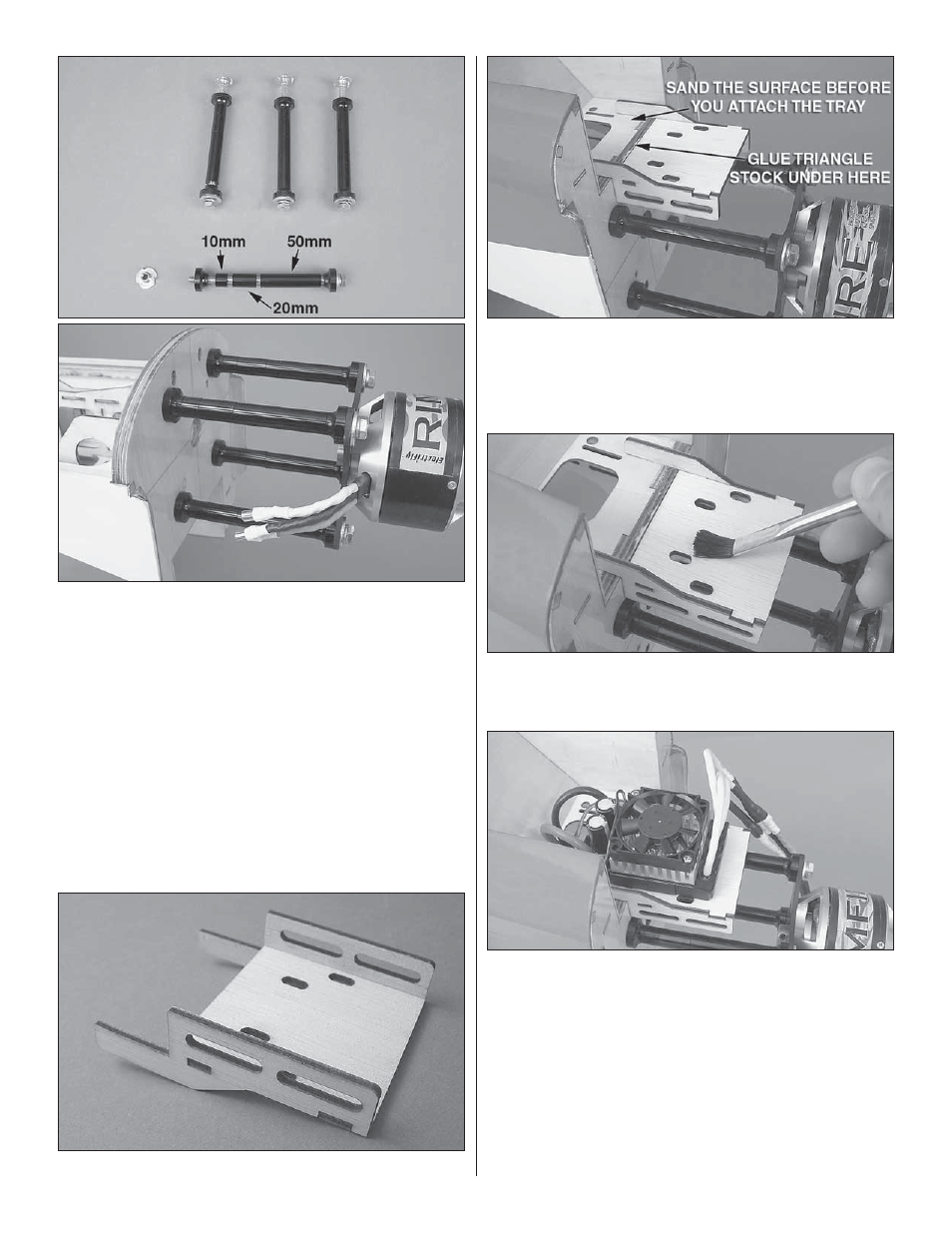

4. Locate four 50mm, 20mm, and 10mm standoff spacers
as well as eight mounting feet, four 1/4-20 x 5" [127mm]
bolts, four fl at washers, and four lock washers. Install the
motor using these parts as shown.
❏
5. Build up the ESC tray as shown.
❏
6. Use 80-grit sandpaper to roughen up the coated surface
of the fi rewall and the equipment tray where the ESC tray will
mount. Use epoxy to bond the ESC tray to the fuselage as
shown. A piece of triangle stock is supplied to help secure the
tray to the fi rewall.
❏
7. If your ESC must be held on with double-sided tape, mix
up some epoxy and thin it down with denatured alcohol. Coat
the bottom surface of the ESC tray. Allow the epoxy to cure.
❏
8. Mount your ESC using double-sided tape or the method
specifi ed by the manufacturer.
Skip to the “Radio System Installation – Electric
Brushless” section.
