21
❏

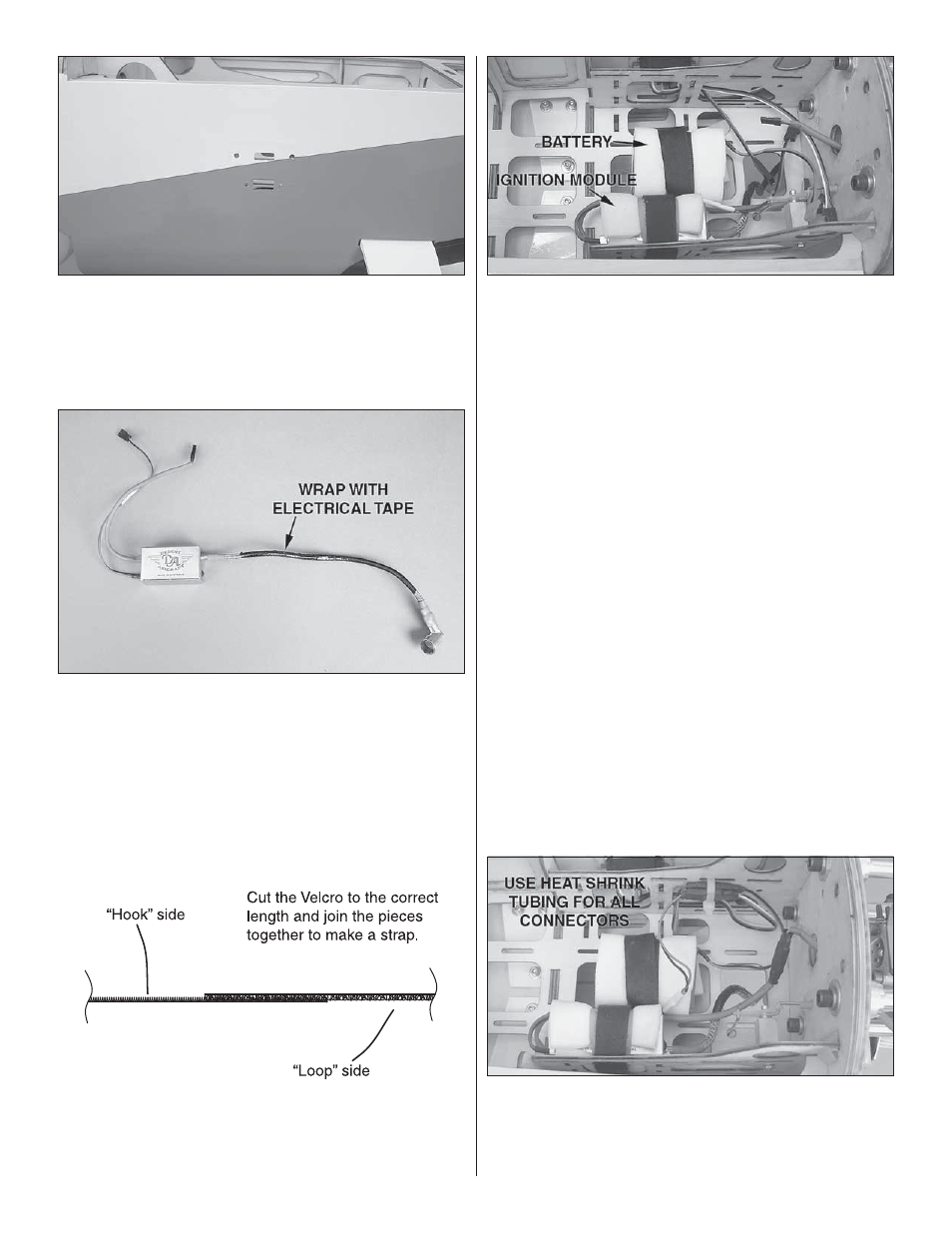

20. Trim the covering from over the switch plate holes and
install the ignition switch and charge jack.
❏
21. Wrap the shielded spark plug lead of the igniter unit
with electrical tape. This will help prevent damage of the
braided shield. Make sure that the battery leads you have
match the leads for your ignition module. We had to splice in
some new Futaba “J” leads to work with our battery.
❏
22. Cut two 5" [127mm] strips of non-adhesive backed
hook and loop material. Make two sets of straps for your
ignition unit and ignition battery by joining a piece of “hook”
material to a piece of “loop” material.
❏
23. Wrap your ignition module in 1/4" [6.4mm] thick R/C
latex foam rubber. Mount the ignition module to one of the
uprights or to the forward compartment fl oor using one of the
straps that you made.
❏
24. Wrap the ignition battery in latex foam rubber. Mount
the battery using the other strap that you made.
❏
25. Connect the ignition module to the ignition switch.
Connect the crank pickup to the ignition module. Connect
the ignition battery to the ignition switch. Use heat shrink
tubing to secure the connectors and a tie wrap to secure
them to the upright.
