5
To order replacement parts for the Great Planes Extra 300S
1.60 ARF, use the order numbers in the Replacement Parts
List that follows. Replacement parts are available only as listed.
Not all parts are available separately (an aileron cannot be
purchased separately, but is only available with the wing kit).
Replacement parts are not available from Product Support, but
can be purchased from hobby shops or mail order/Internet
order firms. Hardware items (screws, nuts, bolts) are also
available from these outlets. If you need assistance locating a
dealer to purchase parts, visit www.greatplanes.com and
click on “Where to Buy.” If this kit is missing parts, contact
Product Support.
REPLACEMENT PARTS LIST
Order
Number Description How to purchase
GPMA2350 Wing Set . . . . . . . . .Contact hobby supplier
GPMA2351 Fuselage w/belly pan Contact hobby supplier
GPMA2352 Tail Surface Set . . . .Contact hobby supplier
GPMA2353 Cowl . . . . . . . . . . . .Contact hobby supplier
GPMA2354 Wheel Pants Set . . .Contact hobby supplier
GPMA2355 Tail Wheel Assembly Contact hobby supplier
GPMA2356 Canopy . . . . . . . . . .Contact hobby supplier
GPMA2357 Landing Gear . . . . . .Contact hobby supplier
GPMA2358 Wing Joiner Tube . . .Contact hobby supplier
GPMA2359 Decal set . . . . . . . . .Contact hobby supplier
Missing pieces . . . .Contact Product Support
Instruction manual .Contact Product Support
Full-size plans . . . . . . . . . . . . .Not available

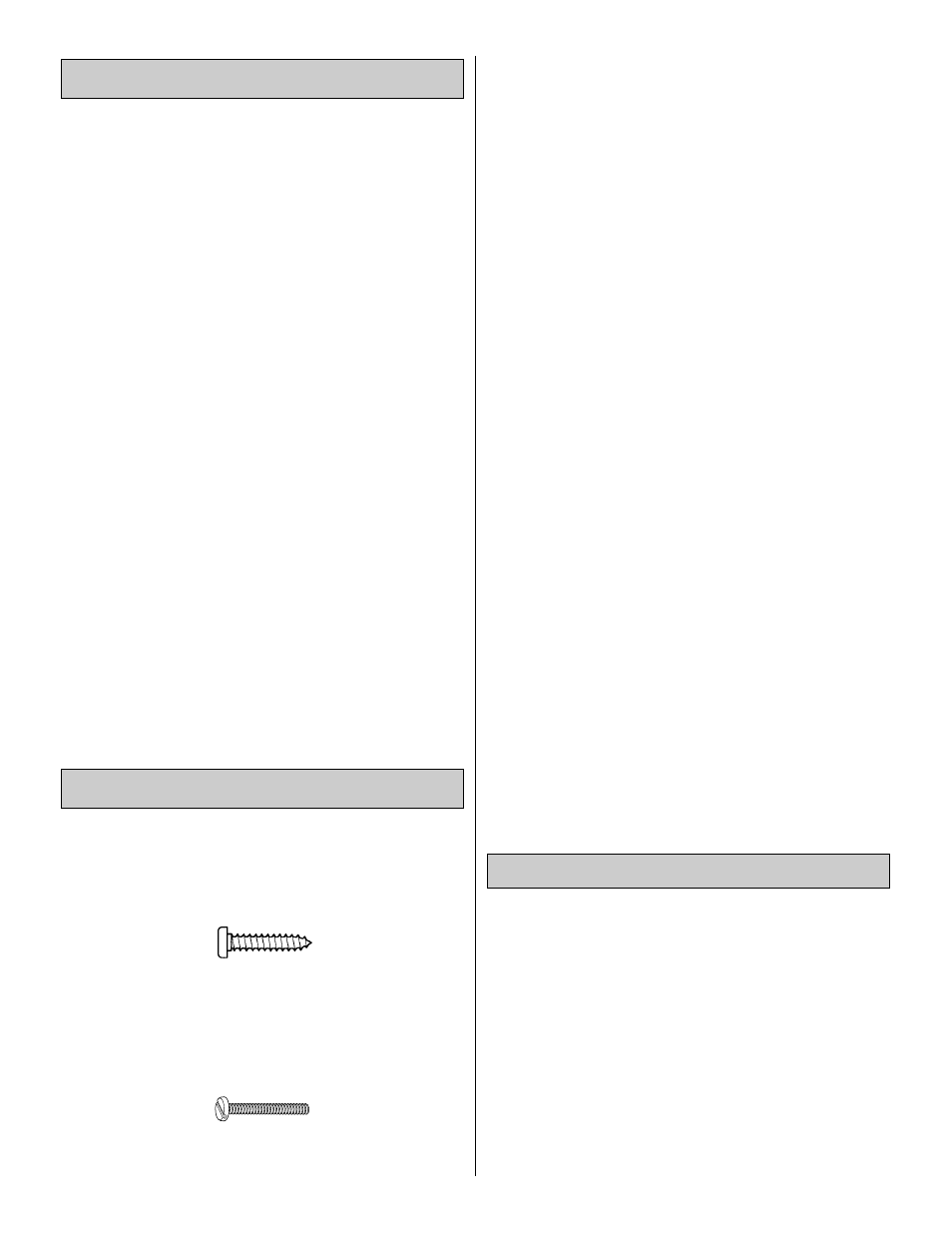

There are two types of screws used in this kit:
Sheet metal screws are designated by a number and a length.
For example #6 x 3/4"
This is a number six screw that is 3/4" long.
Machine screws are designated by a number, threads per
inch, and a length.
For example 4-40 x 3/4"
This is a number four screw that is 3/4" long with forty
threads per inch.
·
When you see the term test fit in the instructions, it
means that you should first position the part on the
assembly without using any glue, then slightly modify
or
custom fit the part as necessary for the best fit.
·
Whenever the term glue is written you should rely upon
your experience to decide what type of glue to use. When
a specific type of adhesive works best for that step, the
instructions will make a recommendation.
·
Whenever just epoxy is specified you may use either 30-
minute (or 45-minute) epoxy or 6-minute epoxy. When
30-minute epoxy is specified it is highly recommended
that you use only 30-minute (or 45-minute) epoxy,
because you will need the working time and/or the
additional strength.
·
Photos and sketches are placed before the step they
refer to. Frequently you can study photos in following
steps to get another view of the same parts.
·
The Extra 300S 1.60 ARF is factory-covered with Top Flite ®
MonoKote ® film. Should repairs ever be required,
MonoKote can be patched with additional MonoKote
purchased separately. MonoKote is packaged in six-foot
rolls, but some hobby shops also sell it by the foot. If only
a small piece of MonoKote is needed for a minor patch,
perhaps a fellow modeler would give you some.
MonoKote is applied with a model airplane covering iron,
but in an emergency a regular iron could be used. A roll
of MonoKote includes full instructions for application.
Following are the colors used on this model and order
numbers for six foot rolls.
Missile Red (TOPQ0201) White (TOPQ0204)
Royal Blue (TOPQ0221) Yellow (TOPQ0203)
Note: The AVEMCO logo on the bottom of the wing is white
Monokote film, not a decal.
1/64" = .4mm
1/32" = .8mm
1/16" = 1.6mm
3/32" = 2.4mm
1/8" = 3.2mm
5/32" = 4mm
3/16" = 4.8mm
1/4" = 6.4mm
3/8" = 9.5mm
1/2" = 12.7mm
5/8" = 15.9mm
3/4" = 19mm
1" = 25.4mm
2" = 50.8mm
3" = 76.2mm
6" = 152.4mm
12" = 304.8mm
15" = 381mm
18" = 457.2mm
21" = 533.4mm
24" = 609.6mm
30" = 762mm
36" = 914.4mm
1" = 25.4mm (conversion factor)
Metric Conversions
Important Building Notes
Ordering Replacement Parts
