Page 4

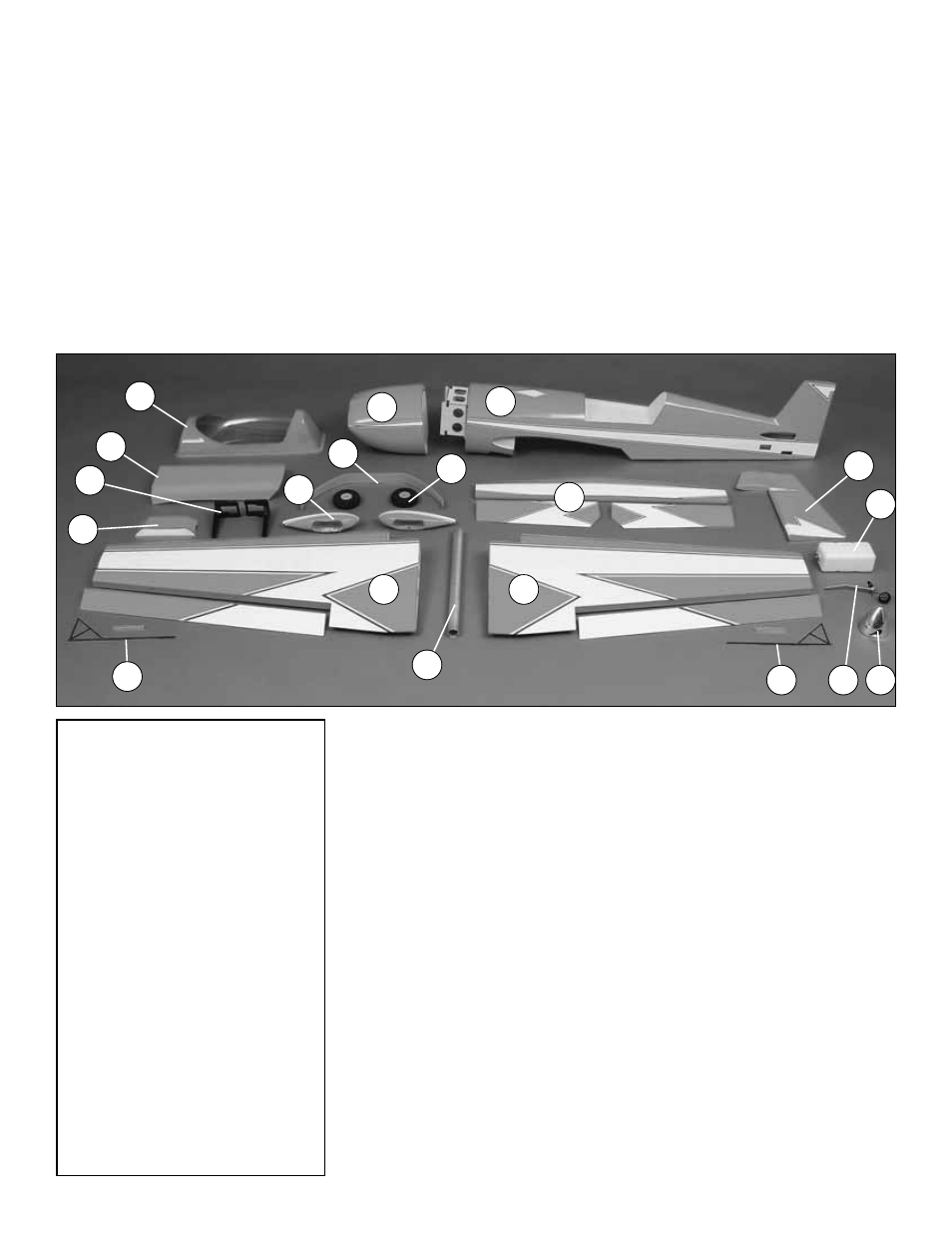

PARTS PHOTOGRAPHED

1. Canopy
2. Cowl
3. Fuselage
4. Belly Pan
5. Engine Mount
6. Landing Gear Cover
7. Wheel Pants
8. Landing Gear
9. Wheels

10. Horizontal Stab & Elevators
11. Rudder
12. Fuel Tank
13. Spinner & Backplate
14. Tail Wheel Assembly

15. Sighting Gauges & Mounting Plates

16. Right Wing & Aileron
17. Aluminum Wing Joiner Tube
18. Left Wing & Aileron

Qty

2 Decal Sheets
1 2-56 Threaded Clevis
5 4-40 Threaded Clevises
5 4-40 Solder Clevises
1 2-56 Solder Clevis
2 3/16" x 2" Axles
1 EZ Connector
5 4-40 nuts
1 6-32 Blind Nut
9 8-32 Blind Nuts
1 2-56 nut
2 5/16 x 24 Axle Nuts
2 1/4" x 20 Blind Nuts
2 1/4-20 Wing Bolts
1 2-56 Nylon Clevis
5 Heavy Duty Control Horns
1 Retainer
1 2 x 9 Hinge Material
1 4-40 Torque Rod Horn
1 Outer Plastic Tube, 11-3/4"

13 Silicone Clevis Keepers

Qty

#4 x 1/2" SMS

4 6-32 x 1/4" SHCS

22 #4 x 5/8" SMS

1 4-40 x 1/4" SHCS

12 #2 x 3/8" SMS

5 8-32 x 3/4" SHCS
1 6-32 x 5/8" SHCS
4 8-32 x 1-1/4" SHCS
4 8-32x1" SHCS
4 3/16" Wheel Collars
1 2-56 x 17-1/2" Threaded One End
1 2-56 x 12" Threaded one End
5 4-40x 4-1/2" Threaded One End
6 #4 Flat Washers
8 #2 Flat Washers
8 #8 Lock Washers

13 #8 Flat Washer

1 3" Medium Fuel Tubing
4 20x20x15mm Cowl Mounting Blocks
4 Nylon Anti-Rotation Pins
1 25mm Velcro

strip

Parts Layout

KIT INSPECTION

Before starting to build, take an inventory of this kit to make sure it is complete, and inspect the parts to make sure they
are of acceptable quality. If any parts are missing or are not of acceptable quality, or if you need assistance with assembly,
contact Product Support. When reporting defective or missing parts, use the part names exactly as they are written in
the Kit Contents list on this page.

Great Planes Product Support:

3002 N Apollo Drive, Suite 1

Champaign, IL 61822

Telephone: (217) 398-8970, ext. 5

Fax: (217) 398-7721

E-mail:

PARTS NOT PHOTOGRAPHED
