13
❏

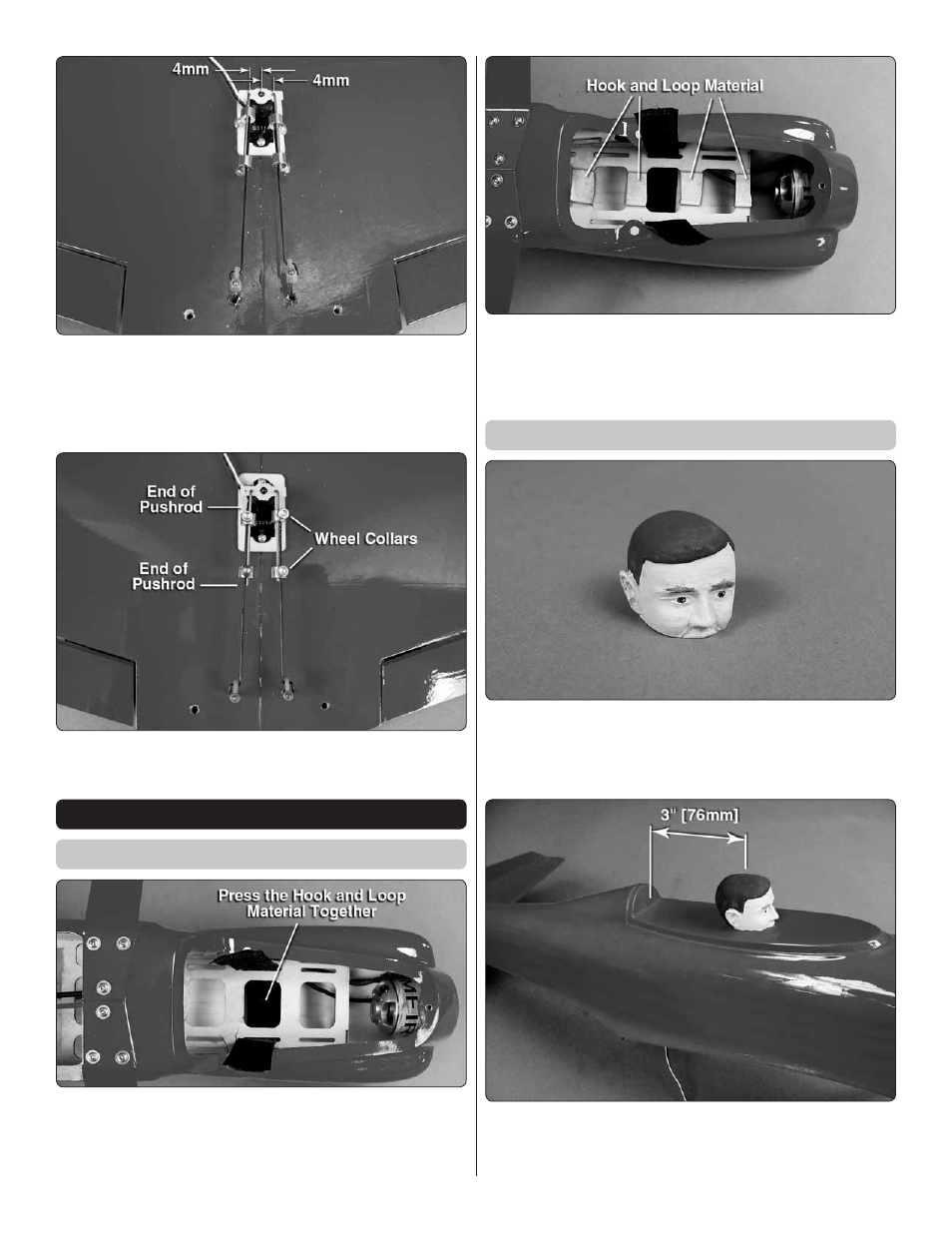

6. Apply a drop of threadlocker to the threads of four cap
screws. Thread the cap screws into four wheel collars. Slide
the wheel collars over the aileron pushrods. Insert the two 1 ×
25 mm pushrods 4mm from the center of the servo arm. Slide
the wheel collars over the 1 × 25 mm pushrods.
❏
7. Center the aileron servo arm and the ailerons. Tighten the
cap screws against the pushrods at the end of the pushrods.
FINISH THE MODEL
Install the Battery Straps
❏
1. Insert the piece of hook material in one of the slots of
the battery tray. Insert the loop material in the opposite slot.
Press the hook and loop material together under the battery
tray to make a battery strap.
❏
2. Cut and attach several pieces of the included adhesive
backed hook or loop material to the top of the battery tray.
Attach the opposite piece of the hook and loop material to
the back of your fl ight battery.
Install the Canopy
❏
1. For our model we used the head from the Williams
Brothers 1/6 Scale Sportsman Pilot #18400 [WBRQ1140].
The pilot head had to be trimmed just under the nose to fi t
under the canopy.
❏
2. Clean the cockpit surface with denatured alcohol
and a clean paper towel. Glue the pilot head in the cockpit,
approximately 3" [76mm] from the back of the cockpit.
