12

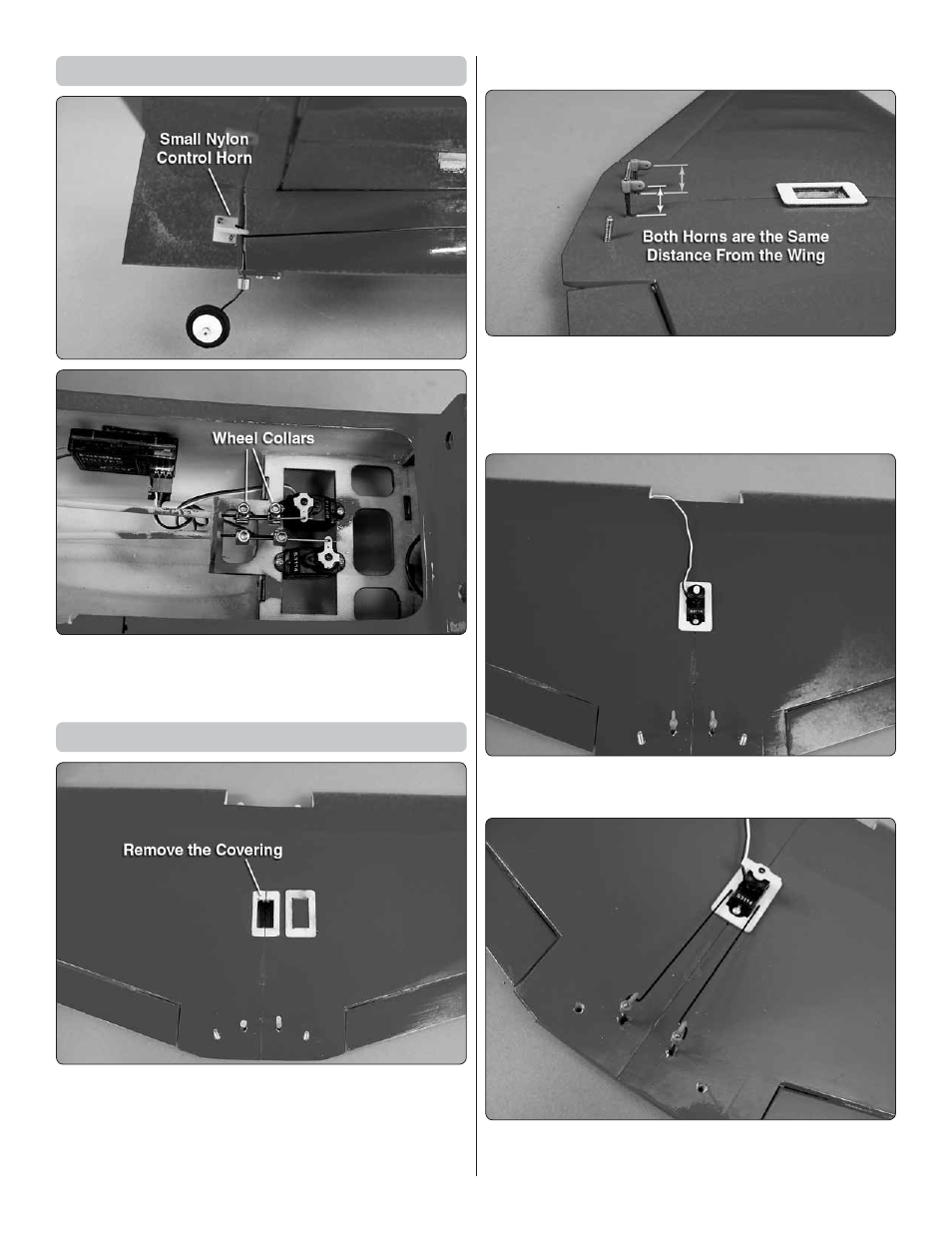

Install the Rudder Servo
❏
1. Install the rudder servo following the same procedure
used to install the elevator servo. Note: Use the small nylon
control horn on the rudder.
Install the Aileron Servo
❏
1. Place the aileron servo tray over the aileron servo
opening in the top of the wing. Use a fi ne tip marker to mark
the outline of the aileron tray on the top of the wing. Remove
the tray and use a sharp hobby knife to remove the covering
from inside the marks. Be careful not to cut the balsa sheeting.
❏
2. Glue the aileron servo tray over the aileron servo opening.
❏
3. Remove the rubber aileron torque rod thread protectors.
Thread an aileron torque rod horn on to both aileron torque
rods so that the threads are fl ush with the top of the torque
rod horns. Adjust the horns so that both of them are the same
distance from the wing.
❏
4. Attach the aileron servo to the servo tray either with glue
or 2 × 6 mm self tapping screws.
❏
5. Insert the Z-bend of the 1× 70 mm aileron pushrod
wires in the two aileron torque rod horns.
