10
❏

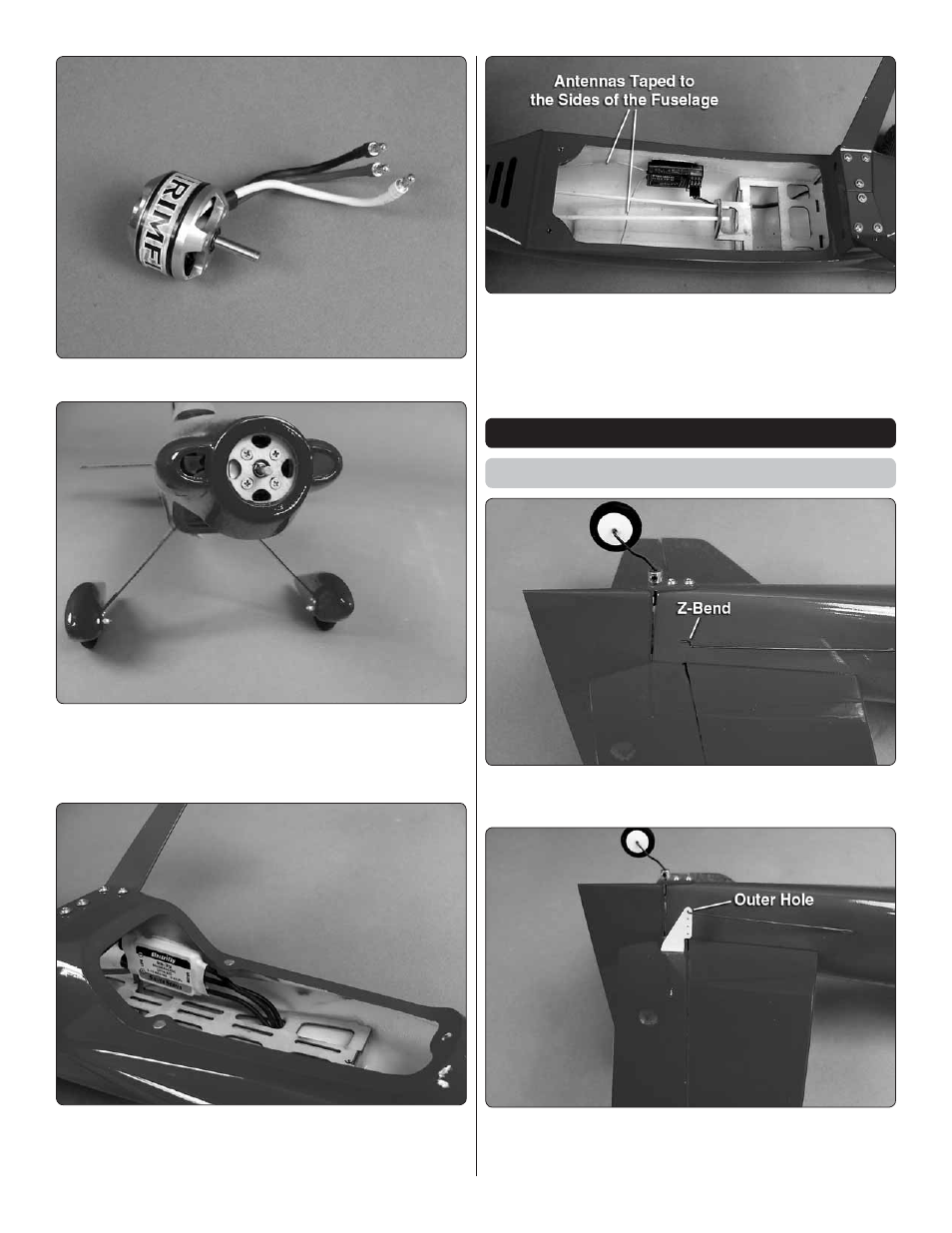

1. Remove the brass wheel collar from the RimFire .10 motor.
❏
2. Install the RimFire .10 motor using the four 3
×9mm
machine screws and 3mm fl at washers. Before installing each
screw, apply a drop of threadlocker to the threads of the screw.
Make sure the motor is centered on the plywood motor mount.
❏
3. Connect the ESC to the motor. The ESC can be attached
to the side of the fuselage with adhesive backed hook and
loop material .
❏
4. Use adhesive backed hook and loop material to mount
the receiver to the side of the fuselage. Tape the two antennas
to the sides of fuselage. If using a 72 MHz receiver, route the
antenna out the cooling exit holes and tape it to the bottom
of the fuselage.
INSTALL THE RADIO SYSTEM
Install the Elevator Servo
❏
1. Insert one of the long 1 mm wire pushrods in the left
pushrod tube so that the Z-bend is at the aft end of the fuselage.
❏
2. Use a sharp hobby knife to remove the backplate from
the large nylon control horn . Insert the elevator pushrod
wire in the outer most hole of the control horn.
