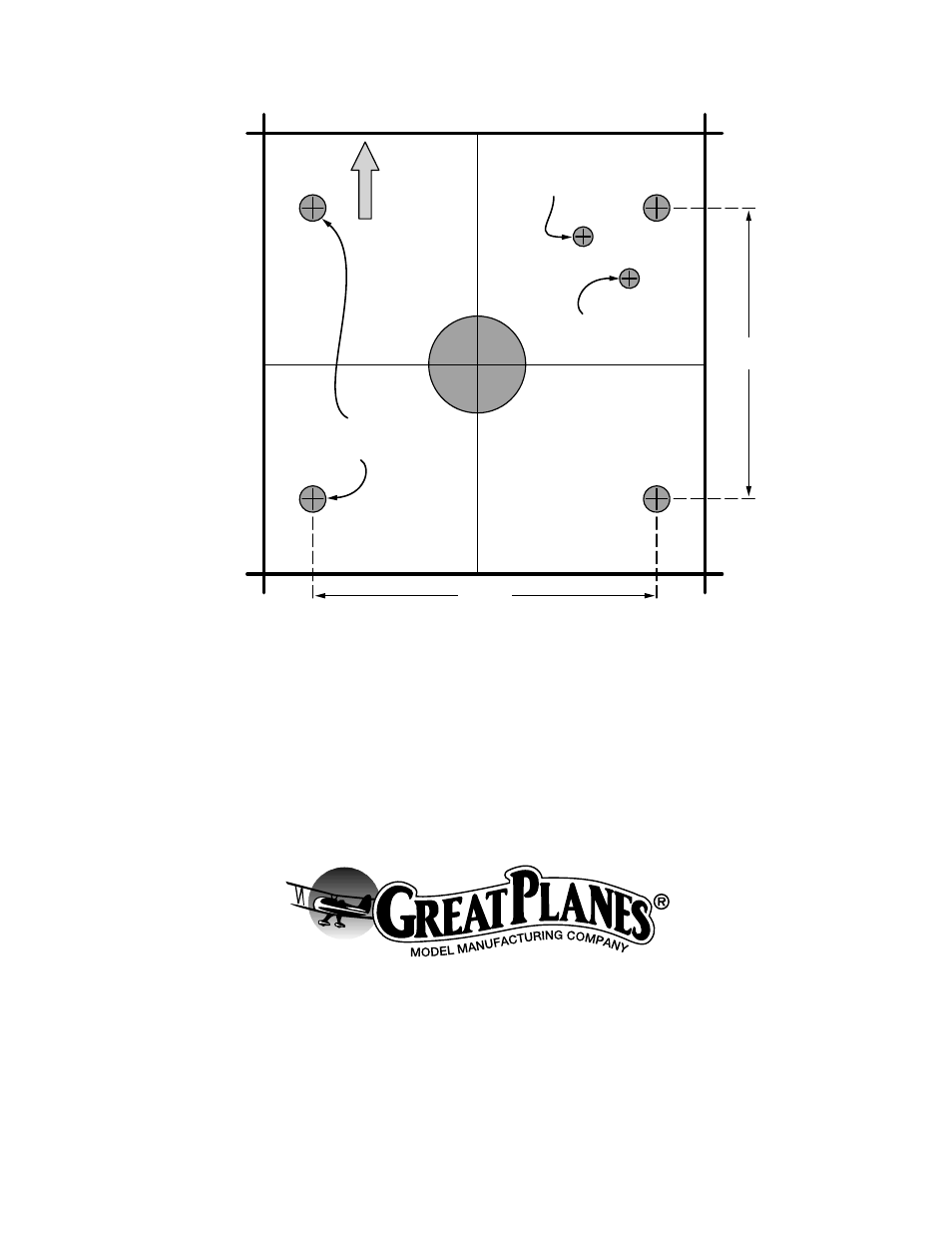

DA-50-R 50cc GASOLINE ENGINE

W/REAR MOUNTED CARBURETOR

UP

3/16" [4.8mm]

THROTTLE PUSHROD

3/16" [4.8mm]

CHOKE PUSHROD

DRILL 1/4" [6.35mm] HOLES

FOR MOUNTING BOLTS

66mm

78mm
