14
❏

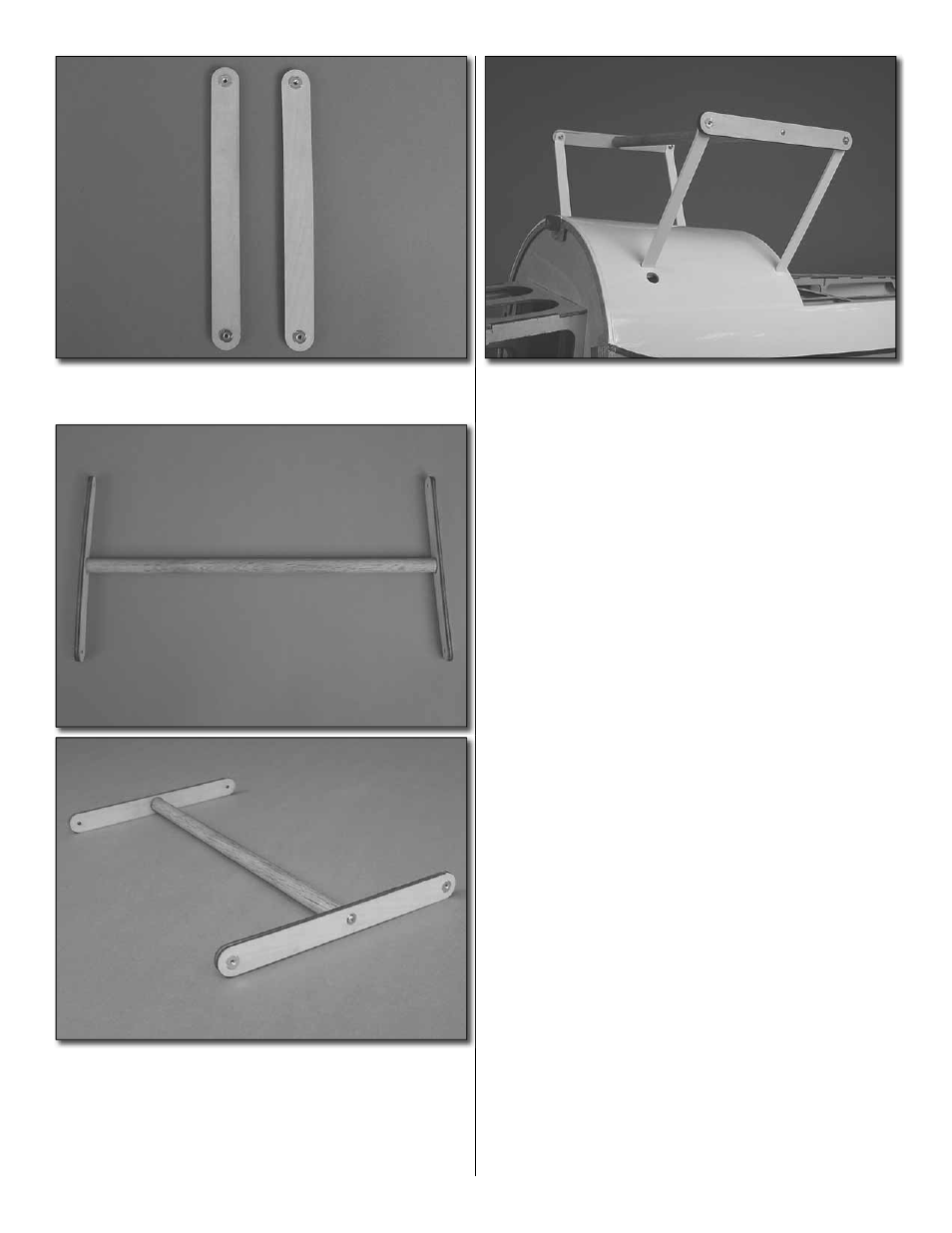

2. Place the side piece with the hole facing the bench.
Insert a 4-40 blind nut into each corner of the parts.
❏
3. Glue the hardwood handle into the hole as shown. Drill
a 3/32" [2.4mm] hole through the end of each end, through
the handle and then screw a #4 x 1/2" [12.7mm] screw with
a #4 fl at washer into the hole you drilled.
❏
4. Secure the handle to the cabane with a 4-40 x 1/2"
[12.7mm] socket head cap screw and a #4 fl at washer.
