32
❏

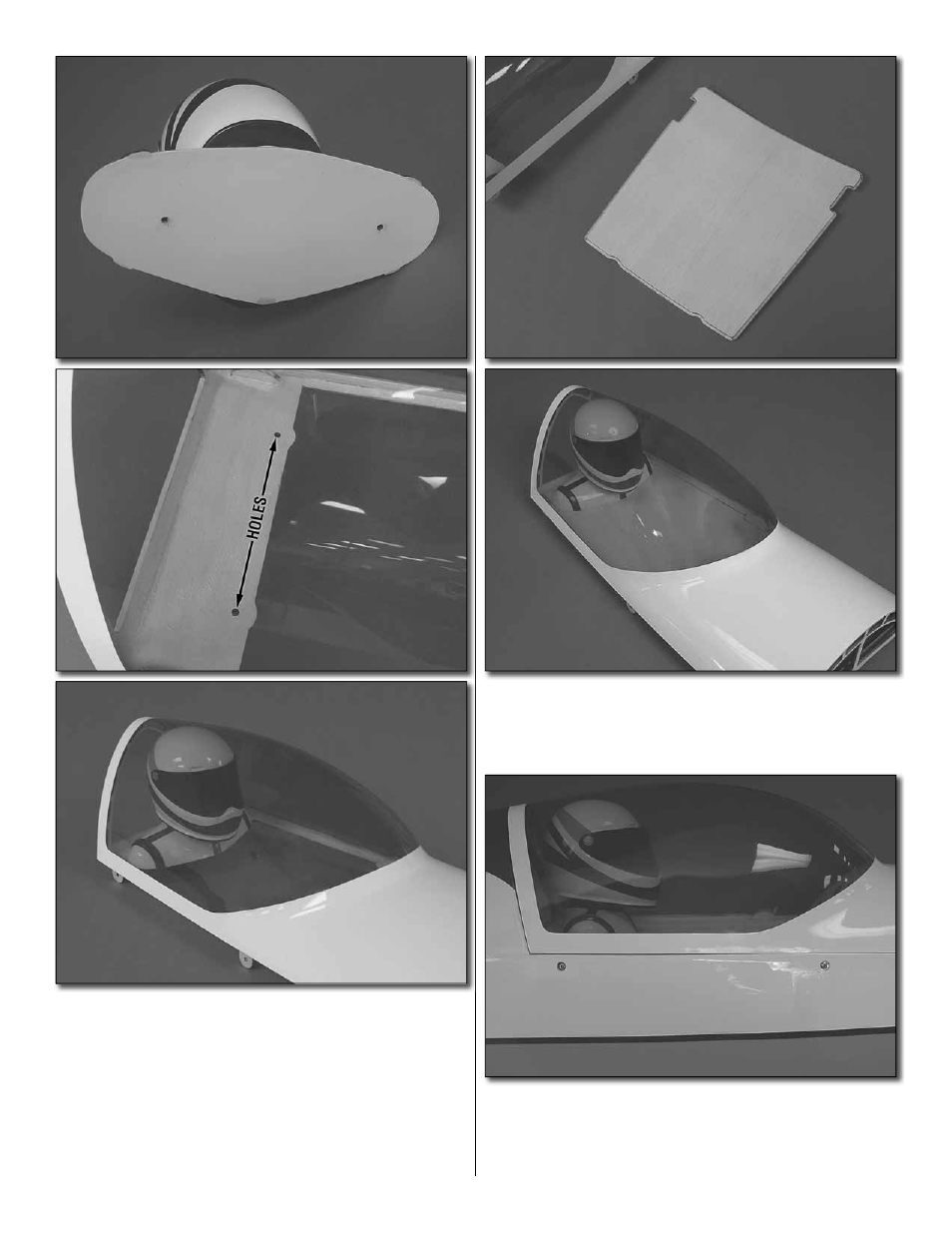

2. On the bottom of the pilot are two holes and inside
the pilot there are blind nuts to secure the pilot. Align the
holes on the bottom of the pilot with the holes located at
the back of the cockpit. Secure the pilot to the cockpit with
4-40 x 1/2" [12.7mm] machine screws, #4 fl at washers and
#4 lock washers.
❏
3. Included in the kit is a cockpit fl oor. To keep some of the
weight down you might choose not to install it. Installation is
completely optional. If you wish to install the fl oor, glue it in
place on the bottom of the cockpit canopy.
❏
4. Install the canopy to the fuselage. Secure the canopy
with four 4-40 x 3/4" [19.1mm] and four #4 fl at washers. Be
sure to use threadlocker on the screw.
