16
❏

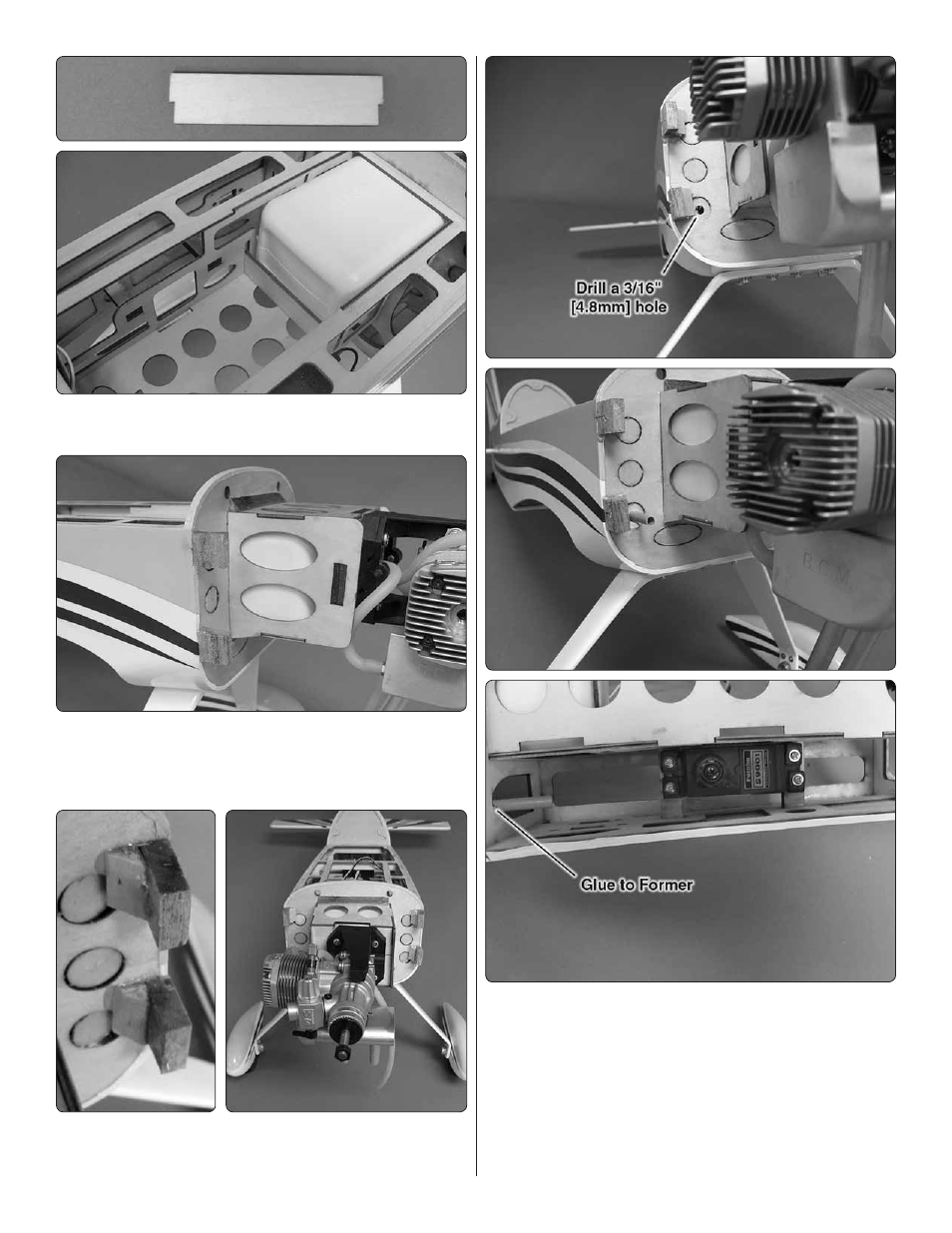

9. Locate the plywood fuel tank stop. Glue it in place in
the slots in the fuselage just behind the fuel tank.
❏
10. Glue four 1/4" x 5/8" x 5/8" [6mm x15mm x15mm] cowl
mounting blocks to the fuselage, two on each side as shown
in the photo. The block should be mounted fl ush to the side
of the fuselage.
❏
11. Locate the 1/4" x1/4" x 2" [6mm x 6mm x 51mm] triangle
stock. Cut off four 5/8" lengths and epoxy them to the fi rewall
and the cowl mounting blocks as shown.
❏
12. Drill a 3/16" [4.8mm] hole through the fi rewall in line
with the engine throttle arm and the throttle servo inside of
the fuselage. Cut the plastic 12" [305mm] pushrod tube to a
length of 4" [102mm]. Insert it into the hole, passing through
the fi rewall into the fuselage. Glue the tube to the fi rewall and
the former inside of the fuselage.
