Assemble the fuel tank – Great Planes Escapade MX 30cc ARF - GPMA1210 User Manual
Page 22
22
❏
26. Install the throttle pushrod using the same procedure
as used on choke pushrod. We recommend that a throttle
cutoff also be set up on the transmitter to close the throttle
completely, stopping the engine.

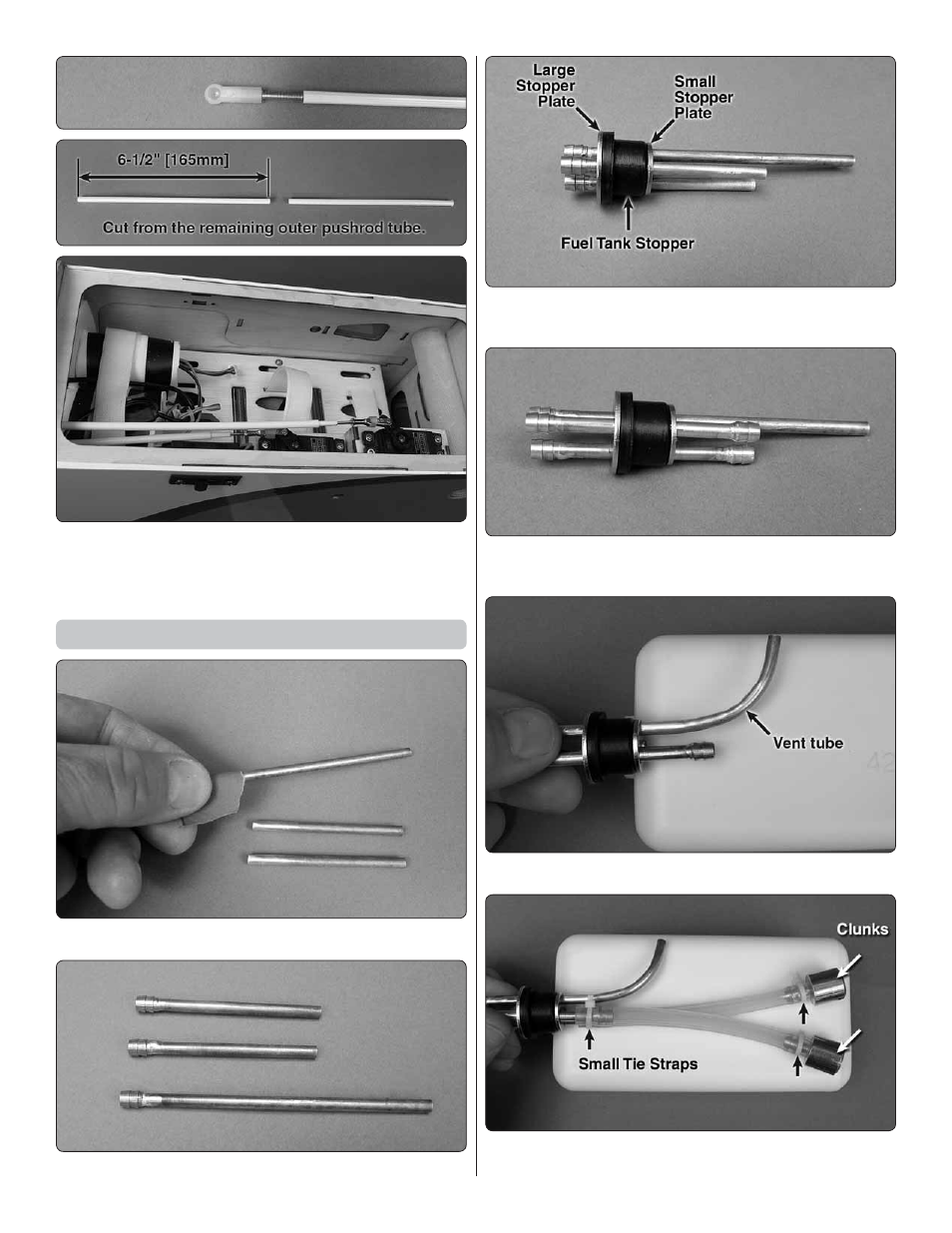

Assemble the Fuel Tank
❏
1. Clean both ends of the brass tubes with sandpaper.
❏
2. Solder fuel line barbs onto one end of the brass tubes.
❏
3. Insert the brass tubes in the fuel tank stopper and
stopper plates.
❏
4. Solder the barbs on the other end of the two shorter
brass tubes.
❏
5. Bend the vent tube.
❏
6. Install the two fuel pickup lines and clunks so they
move freely.
