Great Planes Escapade MX 30cc ARF - GPMA1210 User Manual
Page 14
14
❏

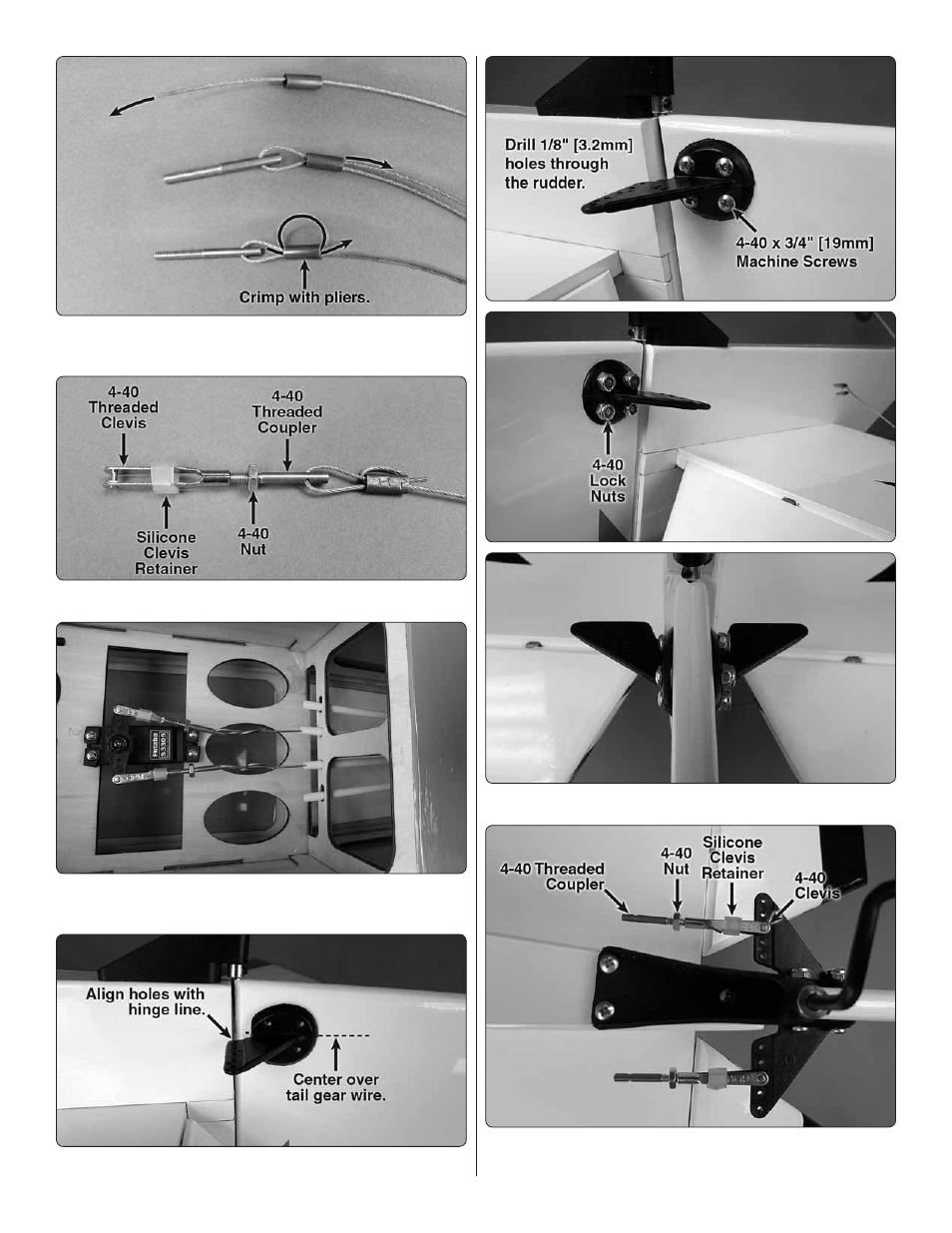

4. Install a 4-40 threaded coupler to the end of both pull-
pull cables.
❏
5. Install a 4-40 nut and threaded clevis on the coupler.
❏
6. Insert the pull-pull cables in the pushrod guide tubes.
Attach the clevises to the servo arm.
7
❏
. Position the rudder control horn.
❏
8. Attach rudder control horns.
❏
9. Attach a second set of clevises, 4-40 couplers, 4-40
nuts and silicone clevis retainers to the rudder control horns.
