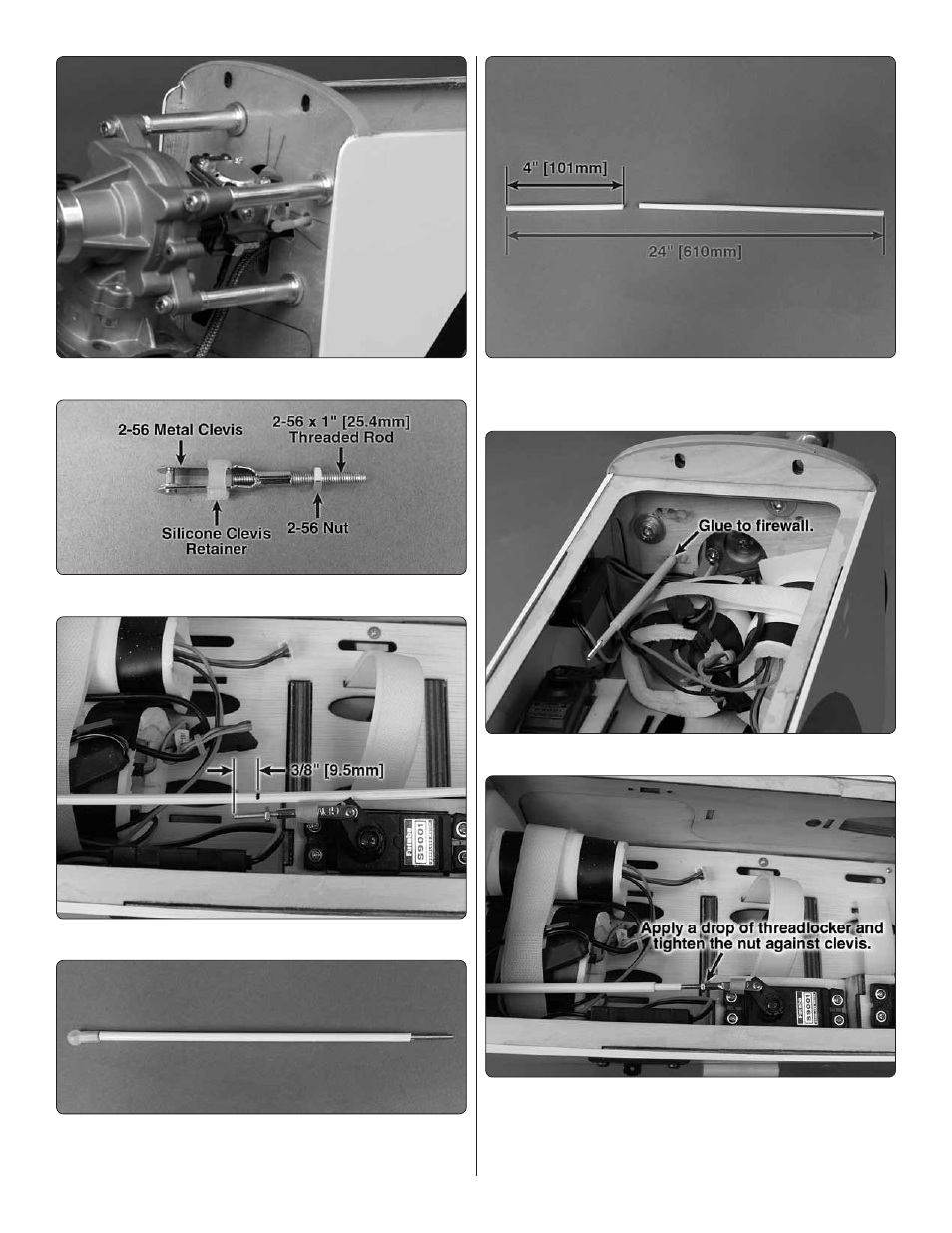

18. Install the choke pushrod.
❏
19. Assemble the choke clevis.
❏
20. Install the clevis on the choke servo.
❏
21. Attach the 2-56 x 1" threaded rod to the choke pushrod.
It is easier to remove the pushrod from the choke to install
the threaded rod.
❏
22. Cut the outer pushrod tube.
❏
23. Roughen the outer pushrod with sandpaper.
❏
24. Install the outer pushrod.
❏
25. Reinstall the clevis and adjust it so that the choke
opens and closes completely.
