9

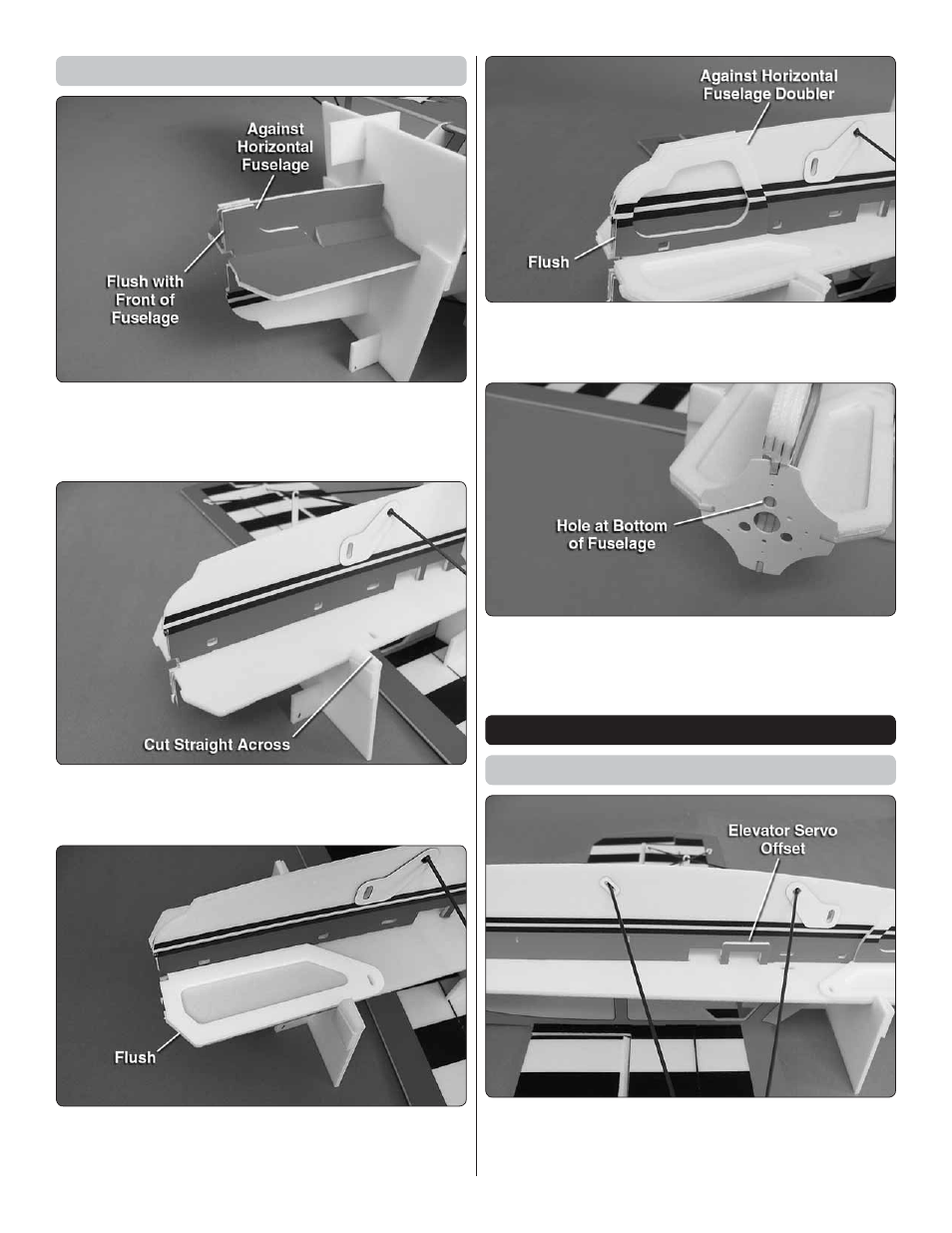

Install the Fuselage Doublers
❏
1. Remove the motor mount and glue the upper motor
doubler to the front of the vertical fuselage. The front of the
upper motor doubler should be fl ush with the front of the
fuselage.
❏
2. Turn the plane upside down. Use a sharp hobby knife
to carefully cut the #1, #2 and #3 bottom crutches from the
top crutches.
❏
3. Glue the two horizontal fuselage doublers to the front
of the fuselage. Make sure they are fl ush with the front of the
fuselage and against the vertical fuselage.
❏
4. Glue the two vertical fuselage doublers to the front of
the fuselage. Make sure they are fl ush with the front of the
fuselage and against the horizontal fuselage doubler.
❏
5. Glue the ABS motor mount to the front of the fuselage.
Apply a bead of glue to the joint on all sides of the fuselage
and motor mount. Take note of the orientation of the three
large holes.
RADIO INSTALLATION
Install the Rudder & Elevator Servos
❏
1. Use foam-safe CA to glue the elevator servo offset
around the forward servo mounting hole on the left side
of the fuselage.
