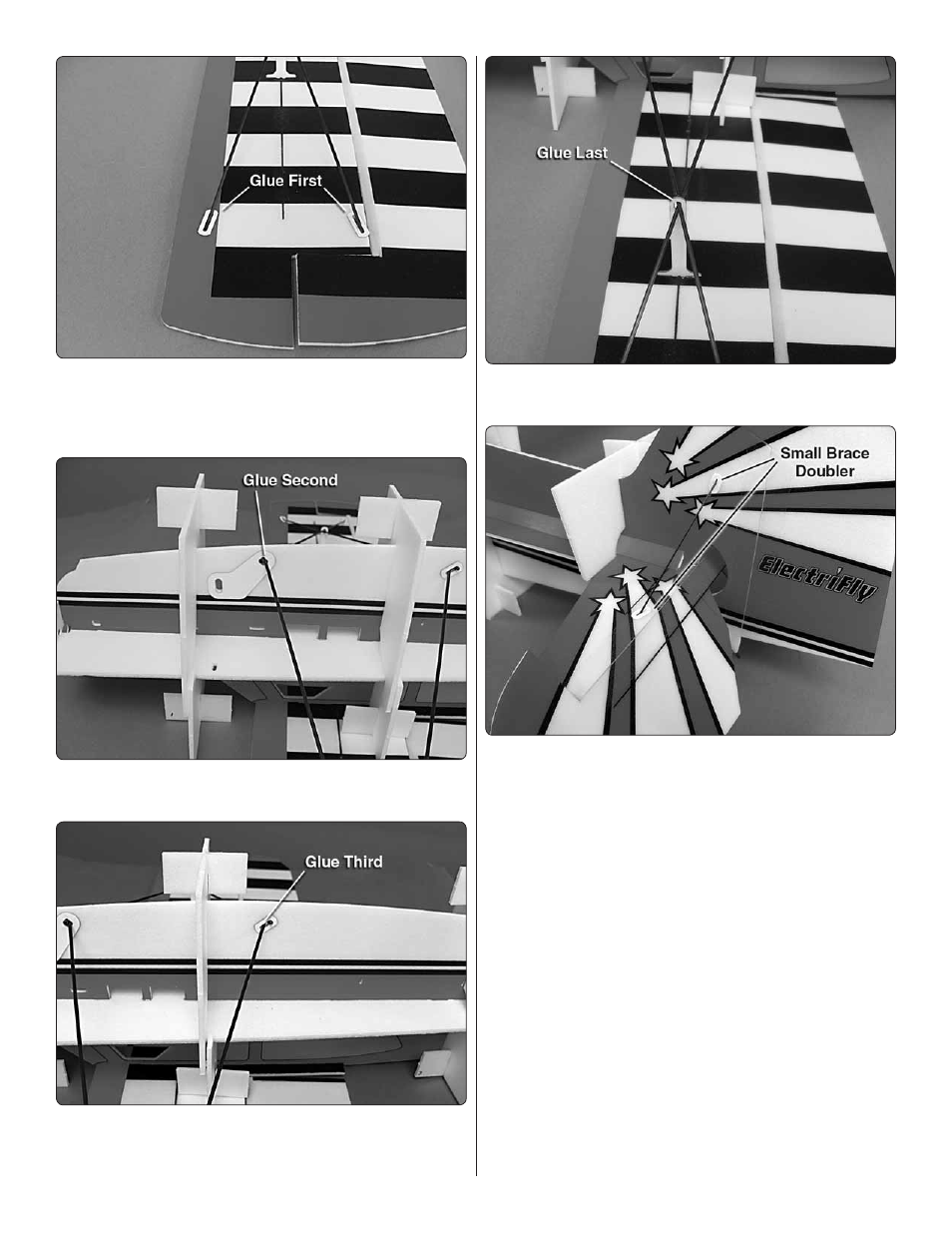

6. Check that all the carbon rods and brace doublers are
in position and straight and the crutches are in position and
fl at on the building table. Start by gluing the carbon rod and
the long brace doubler to the wing at the wing tip.
❏
7. Next check that everything is still straight and glue the
carbon rod to the landing gear support.
❏
8. Position the medium brace doublers so that both carbon
rods pass through the brace doubler. Glue the brace doubler
and carbon rod to the vertical fuselage.
❏
9. Once the glue has cured, glue the carbon rods to the
brace supports.
❏
10. Turn the fuselage upright and position it on the crutches.
Slide two ABS small brace doublers onto a 1 x 90mm
carbon rod . Insert the carbon rod in the slot in the top of the
stabilizer and the side of the vertical fi n.
❏
11. Insert the carbon rod and brace doublers on the other
side of the fi n and stabilizer.
❏
12. Check that the stabilizer and fi n are perpendicular to
each other. Glue the carbon rods and brace doublers to the
stabilizer and fi n.
