31082 V3
TBT-T100IN
Page 5
Operating Manual
www.grantinstruments.com
4.0 Operating instructions
4.1
Unpacking instructions
Standard equipment includes:
Immersion thermostat (T100IN)
Tank (TBT) and bridge plate (TB-BTSIN)
Tray
Quilt
Blanket
Mains cord with plug (T100IN US has a fixed mains cord)
Operating manual
Remove packing materials carefully and retain them for future shipment or storage of the
equipment.
4.2

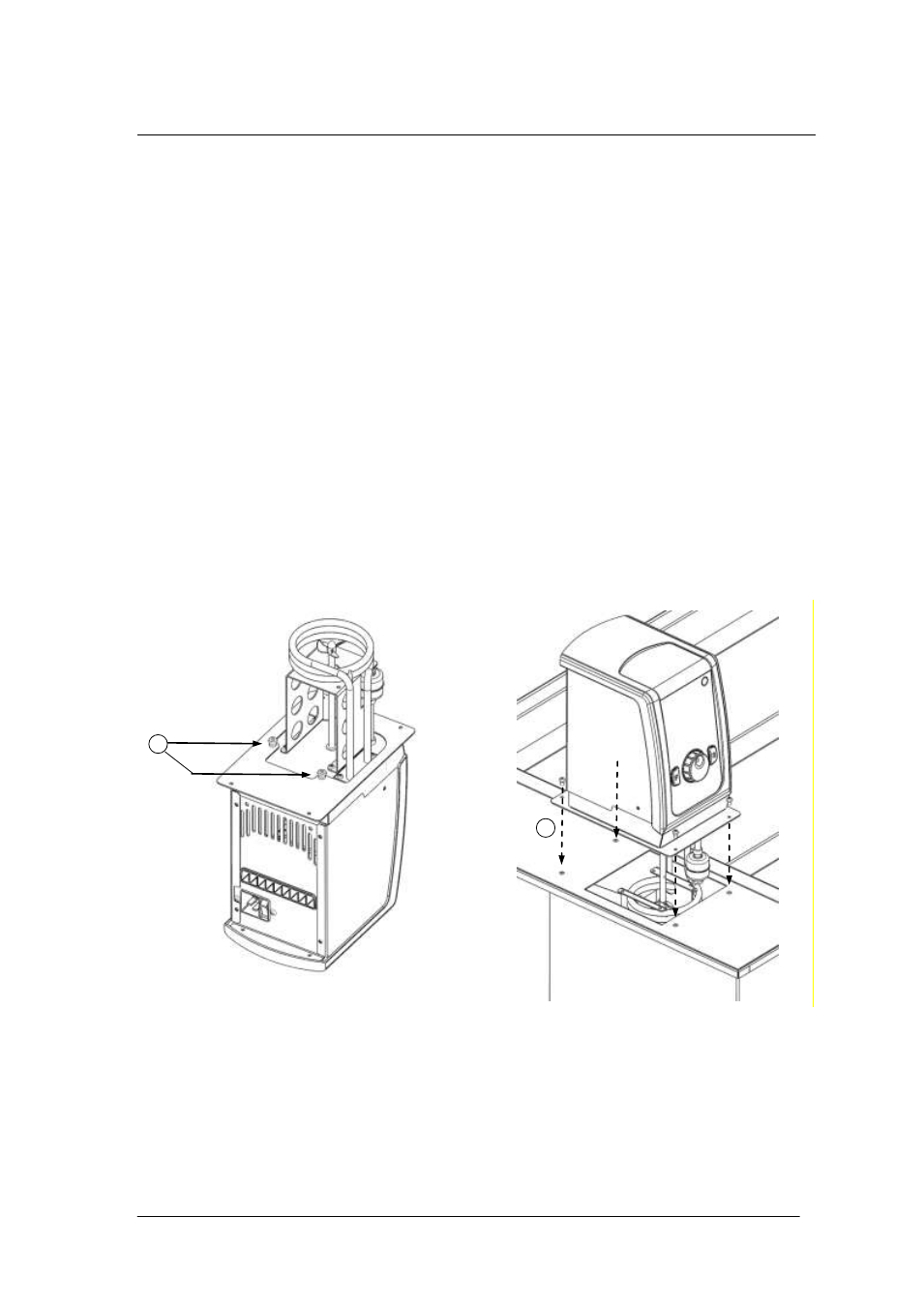

Fitting controller to the tank
1. Fit the T100IN through the hole in the bridge plate and align using the locating
threads. Secure using the retaining nuts (1). Hand tighten only.
2. Turn the unit over and fit through the square hole in the top of the bath. Fasten in
place using the 4 screws provided (2).
3.
Fit the circulation tray in the base of the TBT tank.
4.3
Removing the controller from the bridge plate
Allow the working liquid to cool before removing the T100IN from the tank. Remove the
4 fixing screws and carefully remove the T100IN and bridge plate together from the tank.
Undo the retaining nuts and remove the bridge plate. Attach the retaining nuts to the
locating threads for safe keeping.
A
B
1
1
2
