The TX3200 is supplied with a slim, slide-on
mounting cradle. The cradle can be screwed
or bolted in any convenient location in your
vehicle (under or above the dash, on the centre
console, etc) using the mounting slots provided
in the base. For maximum sound output from
the internal speaker, we recommend the cradle
be mounted above the radio to minimise any
obstruction of the speaker.
For console mounting, a flush mounting DIN
adapter MBD001 is available as an optional
accessory. The adapter includes mounting
brackets and a specially designed front panel
escutcheon to suit most vehicle installations.
See your nearest GME dealer for details.
When installing the cradle, avoid mounting
close to heaters or air conditioners. Screw the
mounting cradle to a firm surface and slide
the TX3200 into the cradle from the front until
it clicks into place. Finally, connect the power
lead and antenna cable to the sockets provided
at the rear of the radio.

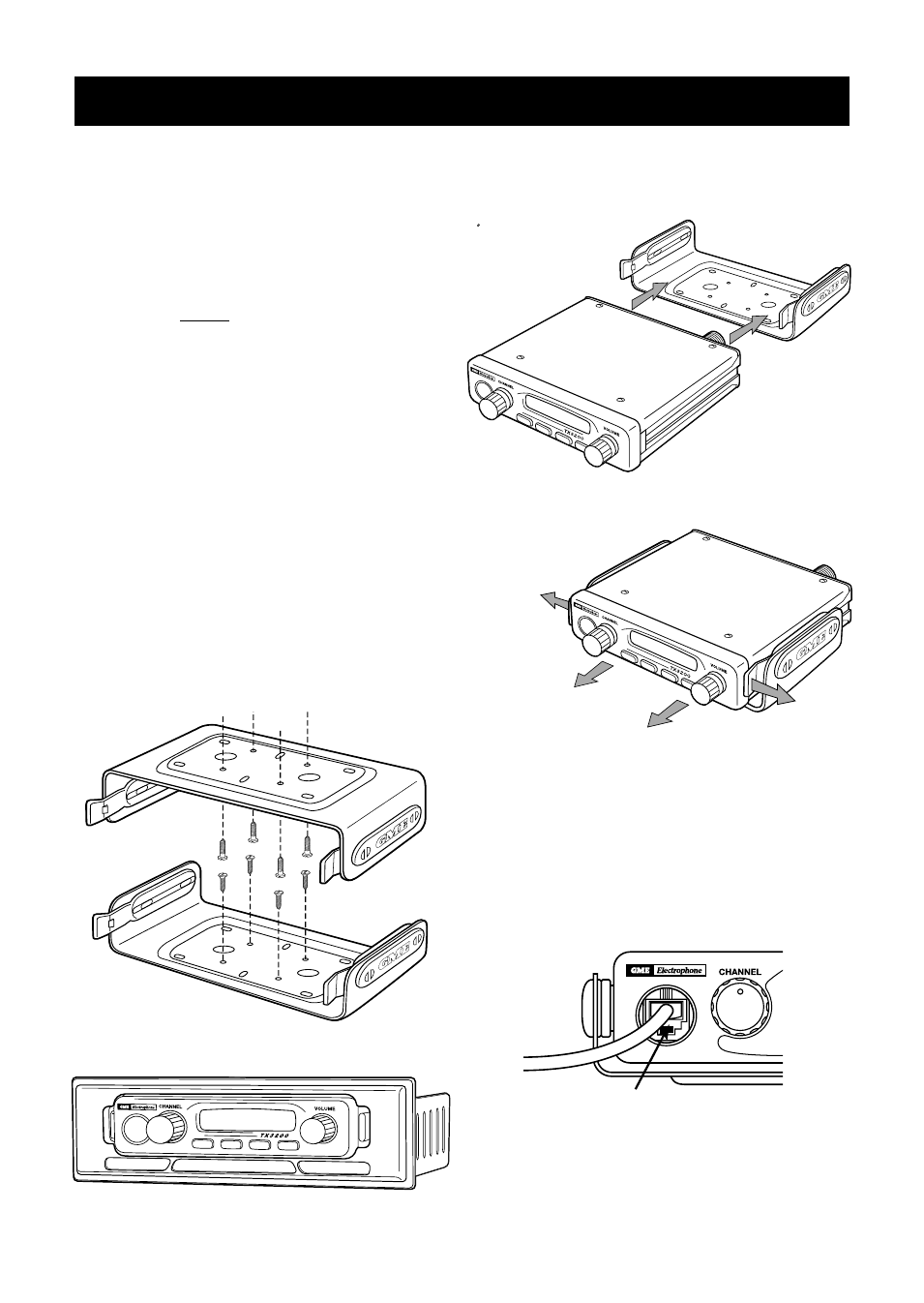

Mounting the Cradle
Din Adapter MBD001
Fitting the Radio
Slide radio fully into
cradle until it clicks
into place.
Removing the Radio
Fitting the Microphone
The microphone uses a miniature 6 pin
telephone style plug and socket. To fit the
microphone:
1. Position the microphone plug so the plastic
tab faces downwards, and press the plug
into the socket until it “clicks”.
INSTALLATION
Slide radio
from cradle
Gently
spread
tabs
Gently
spread
tabs
Plastic tab
SQL
