t X 4 5 0 0 s I n s t r u c t I o n m A n uA l PA G E 5

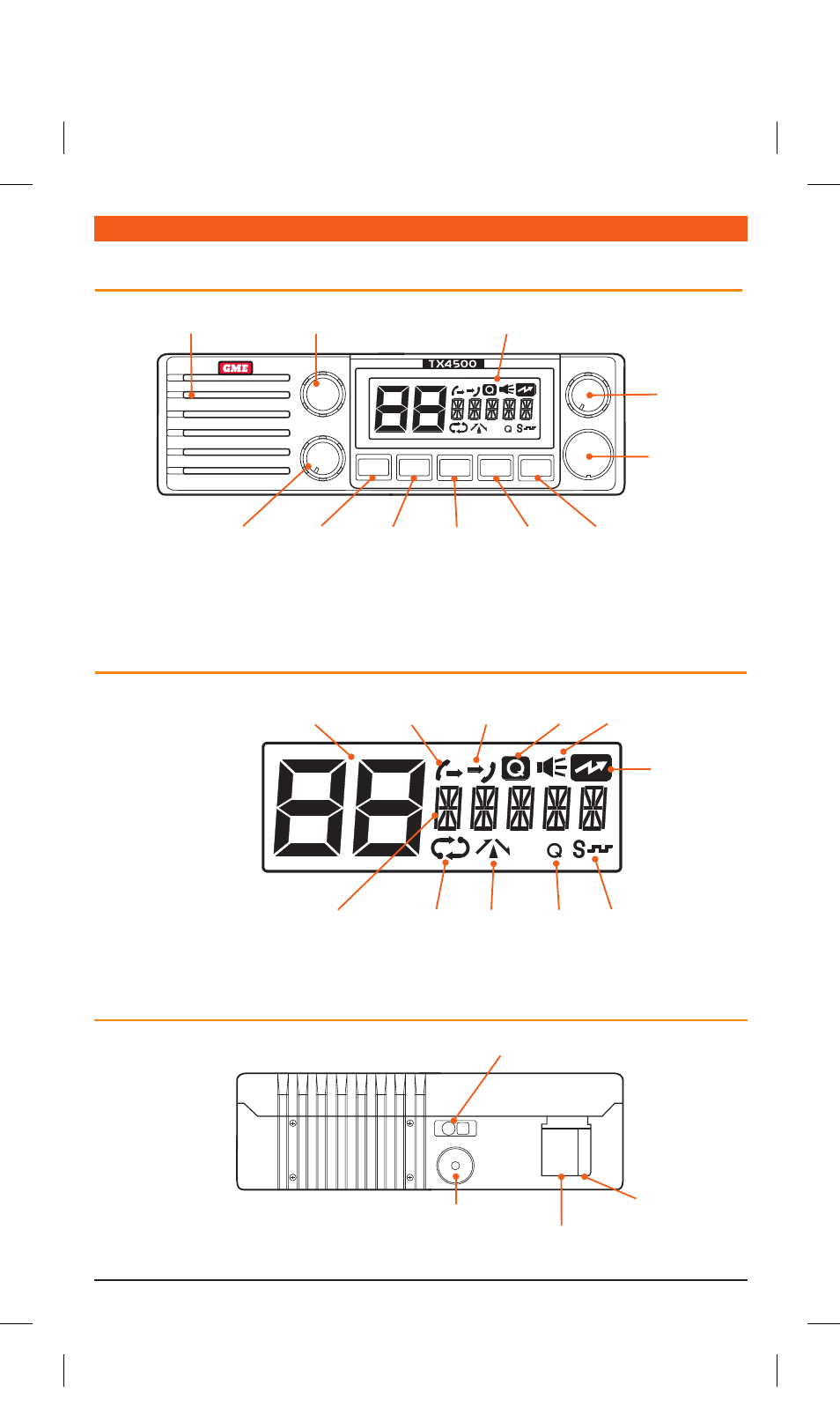

rEAr PANEL
FrONT PANEL CONTrOLS
GENErAL OPErATION
SILENT
QUIET
DUP
ALPHA
VOLUME
SQUELCH
CHANNEL
PRI 1
PRI 2
SCAN
OS/GS
MENU
F
Volume
control
liquid crystal Display channel control speaker
squelch
control
menu/
Function
scan/
os-Gs
Priority 1/
Priority 2
Duplex/
Alpha
silent/
Quiet
Front mic
socket
LCD PANEL
scan
Quiet Busy
transmit
channel Display
selcall/Alpha Display/
signal meter/Battery
repeater
(Duplex)
Quiet
tag
ctcss/Dcs
selcall rX selcall tX
13.8V
DC
ANTENNA MIC SPK
Extension speaker
socket
13.8 V Dc socket
Antenna socket
rear mic socket
