T X 3 1 2 0 S I N S T R U C T I O N M A N UA L PA G E 2 7
Finally, plug the microphone, power lead and
antenna cable into the sockets provided on the
radio’s rear panel.

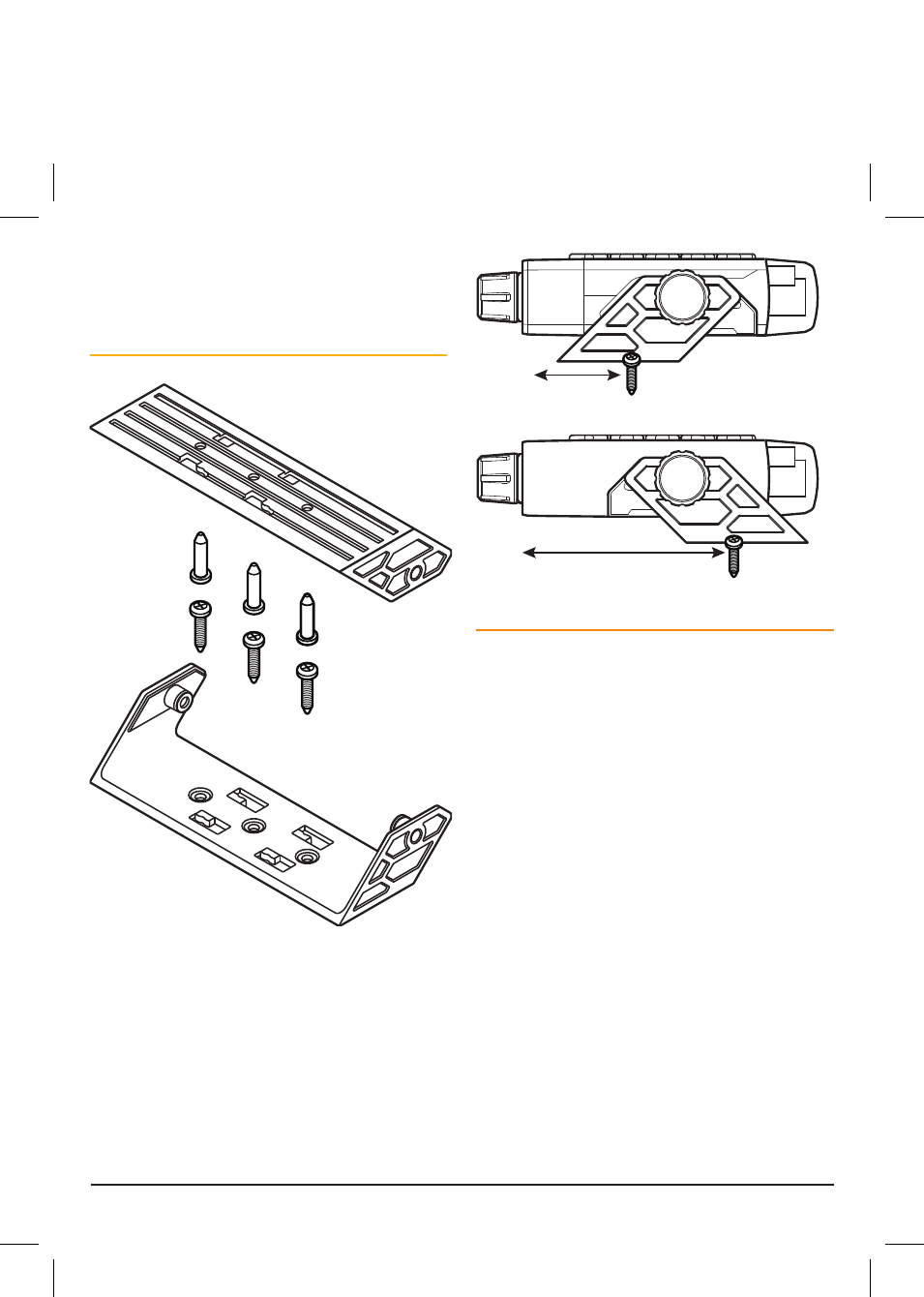

Mounting
The mounting bracket can be oriented with the
arms extending either forward or backwards
to adjust the position of the front panel with
reference to the mounting point.
29mm
63mm
FITTING THE RADIO
Microphone Cable Clip
As the microphone connects to the rear panel, a
cable clip is provided to route the cable towards
the front. The cable clip is designed to be held
against the side of the radio using the gimbal
knob. The cable clip can be installed on either side
of the radio with the cable clamp in the upper or
lower position.
To install the cable into the cable clip
1. Determine which way up your radio will be
installed and which side of the radio you
will mount the clip. This will determine the
orientation of the cable when you insert it into
the clamp.
2. Press the cable into the clip taking into account
the length of cable required to reach the
microphone socket.
