Sealed Beam Headlamps
To replace the headlamp capsule, do the following:
1. Remove the four retainer screws and the retainer.
2. Pull the headlamp capsule toward you and
unplug the electrical connector from it.
3. Remove the old headlamp capsule.
4. Plug the electrical connector into the new headlamp
capsule.
5. Reverse Steps 1 and 2 to reinstall the headlamp.

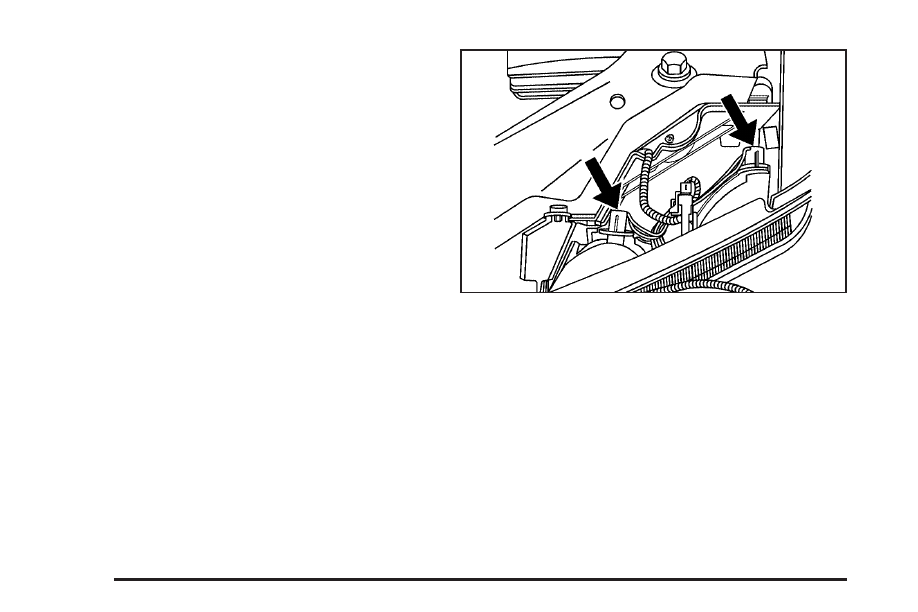

Front Turn Signal, Parking and
Daytime Running Lamps (DRL)
To replace one of these bulbs, do the following:
1. Open the hood. See Hood Release on page 5-11
for more information.
2. Reach in to access either one of the bulb sockets.
3. Turn the bulb socket counterclockwise and
remove it from the lamp assembly.
4. Remove the old bulb from the bulb socket.
5. Insert the new bulb into the bulb socket.
6. Insert the bulb socket into the lamp assembly and
turn it clockwise until it is tight.
5-50
