Garelick 75016 UNIVERSAL BOAT SEAT SWIVELS - Manual (Page 2)

Mounting Instructions & Template – Model 75019 Quick Release Track
Form 12.169
4. Cock locking handle back as illustrated in Fig. 4. Now,
tighten nut (G) as shown in Fig. 3.
5. Secure swivel to seat with screws supplied on seat bottom.
Use instructions given with model 75018 swivel.
6. Rotate swivel so locking handle is in the right front position
and then slide swivel ends into grooves of plastic track as
indicated in Fig. 5. As locking handle hook nears the slide,
cock handle back to allow complete entry of swivel and
then slide swivel in until handle locks in notch of track. Seat
is now locked in.
7. Reverse procedure to remove seat.
8. Periodically grease swivel and slide for easy operation.
TEMPLATE FOR
SECURING POINTS
TEMPLATE FOR
SECURING POINTS
10 1/16"

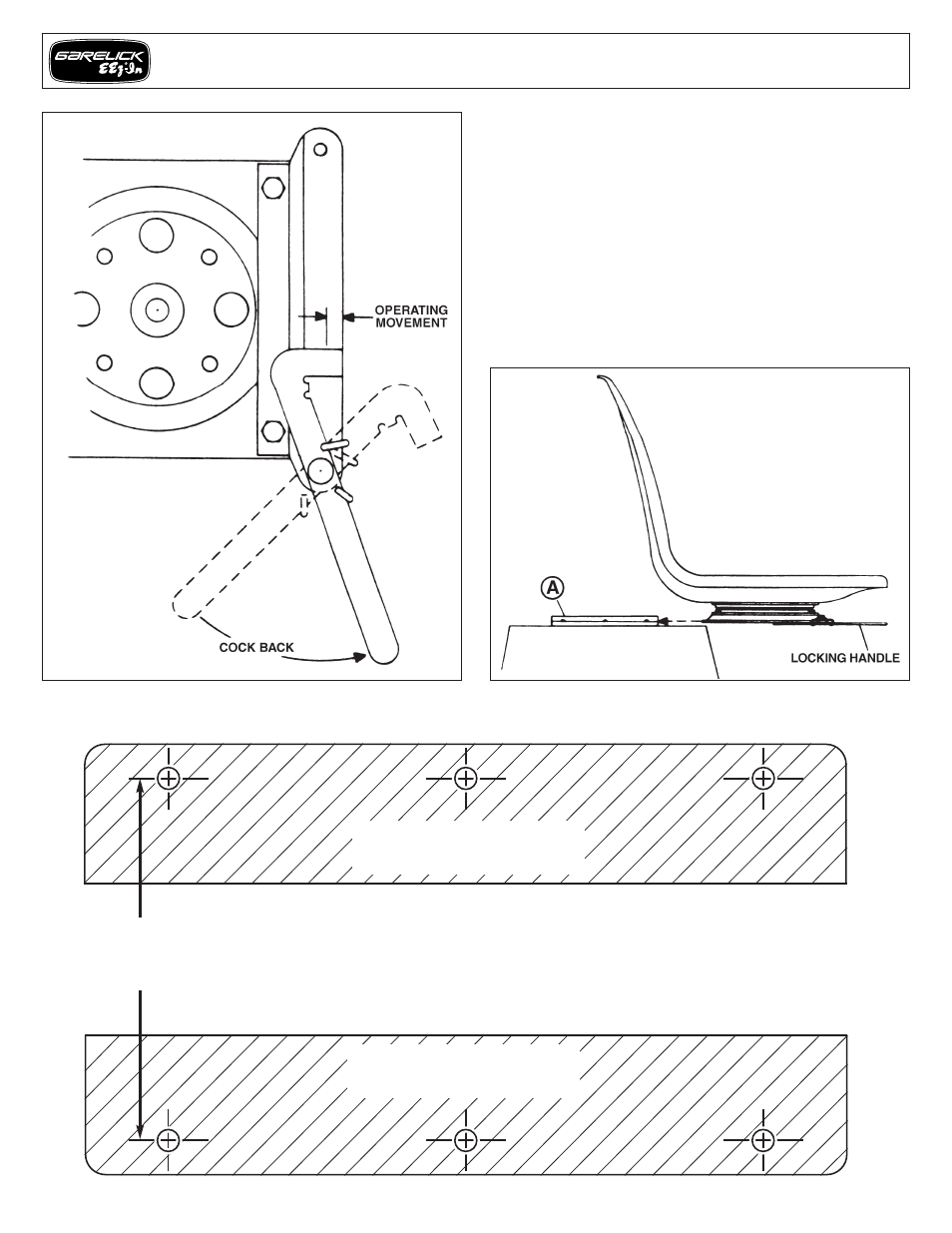

FIG. 4
FIG. 5
