MODEL-90 DETACHABLE PEDESTAL PLATE INSTRUCTIONS

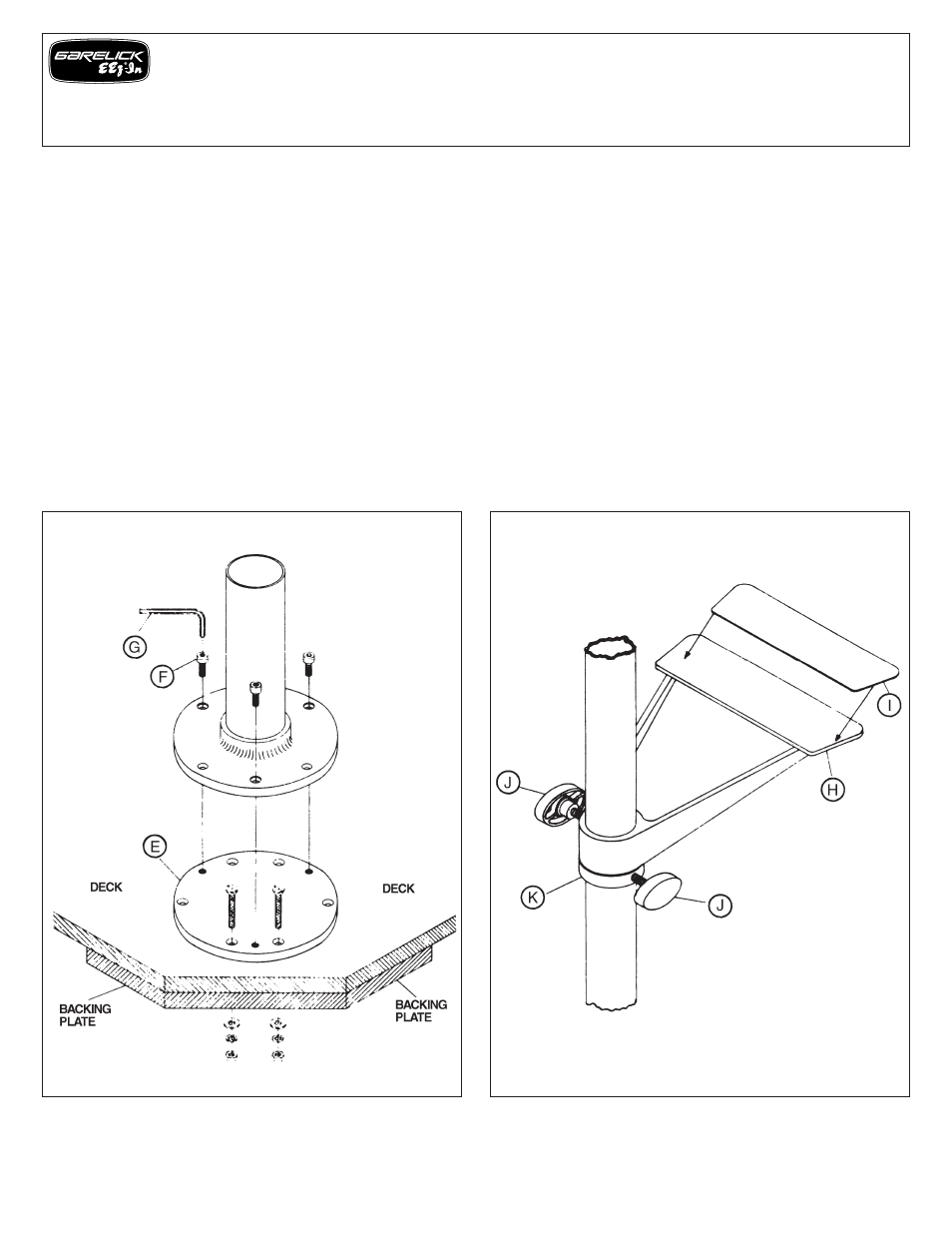

Refer to Fig. 3
1. Secure detachable plate (E) to boat deck. This deck area
should be adequately reinforced. Use a backing plate if
necessary to make a secure attachment. It is recommended
that the flat-headed fasteners used go through both deck
and backing plate for best results (see illustration). Six holes
are drilled in the plate for attachment but fasteners are
NOT provided for this application as the type needed may
vary.
2. Place seat base on plate and align the three pre-threaded
holes in the plate with the three large diameter holes in the
seat base.
NOTE: It may be necessary to drill these three aligning holes
in the seat base with a 13/32" or larger drill bit.
3. Insert the three allen bolts (F, provided) into the holes and
secure in position with the allen wrench (G, provided).
MODEL 75004 SWIVEL STANCHION FOOT REST INSTRUCTIONS
Refer to Fig. 4
1. Clean foot rest surface (H), peel backing off no slip pad (I)
and adhere it to foot rest as indicated.
2. Screw locking knob (J) into collar (K) and slide it over
stanchion tube. Lock collar at foot rest’s desired height.
3. Screw locking knob (J) into foot rest (H) and slide it over
stanchion tube. Lock foot rest at its desired position.
FIG. 4 FIG. 3
Assembly Instructions – Seat Bases,
Model-90 or Model 75056 Detachable Pedestal Plate,
and Model 75004 Swivel Stanchion Foot Rest
Form 12.146
