Page 2
4. Secure the brackets to the seat bottom by aligning the
holes and using screws (C).
5. Position U-mounting bracket (A) on seat bottom so it is
centered on the seat’s side and at least 1" from edge.
Align the U-mounting bracket so that the walls of it face
fore and aft (see fig. 2). Mark the 2 holes and drill them
with a 1/8" bit. Secure the bracket in position with 2
screws (C).

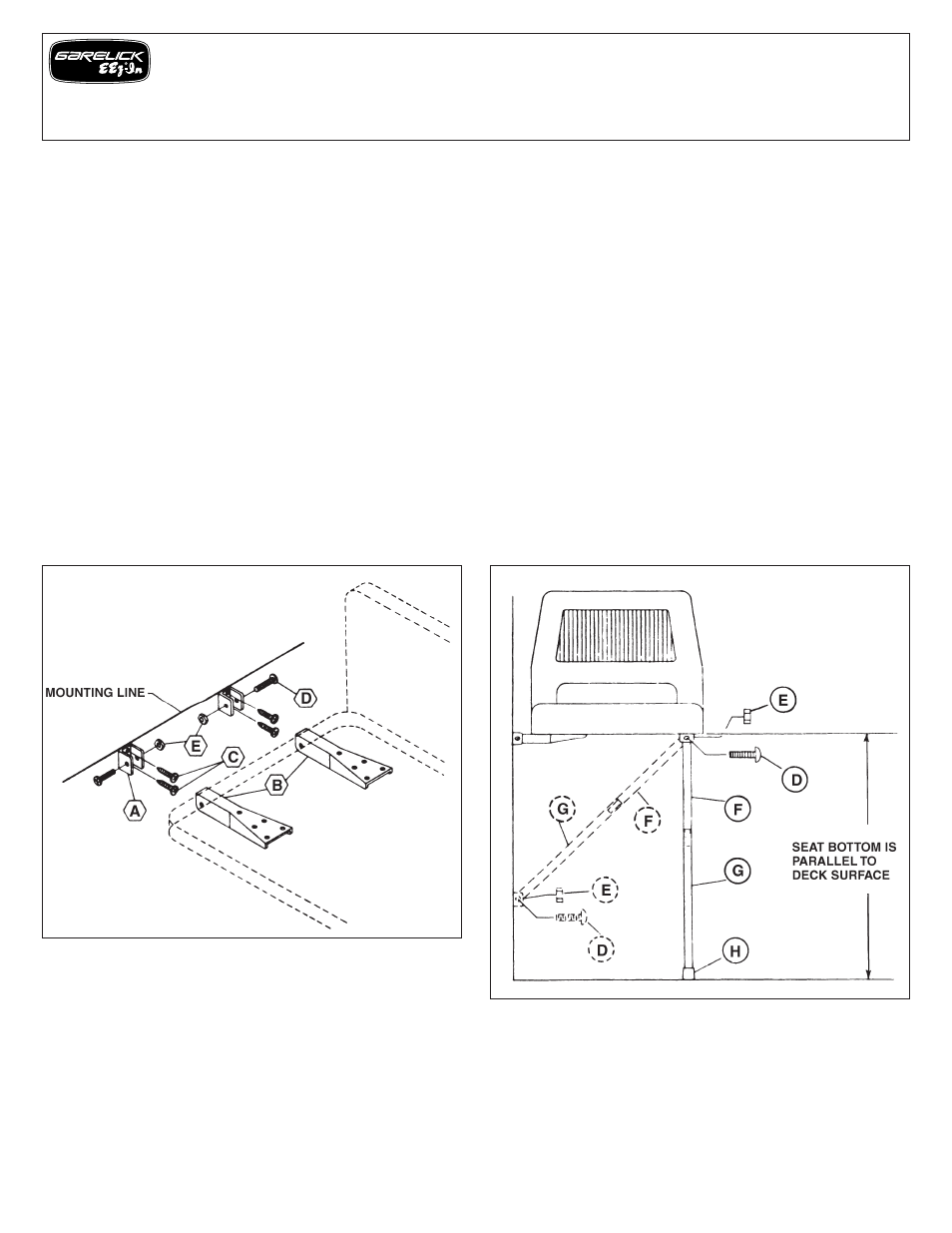

6. Attach 2 U-mounting brackets (A) to support brackets (B)
by aligning their holes and inserting bolts (D) as in fig. 3.
Secure with locknuts (E). Fingertighten only. These nuts will
have to be removed in step 8.
7. Position the attached U-mounting brackets (A) against the
line drawn in step 1. Mark the brackets’ hole locations on
the side bulkhead and drill all 4 with a 1/8" bit (see fig.
3).
8. Remove the 2 U-mounting brackets from the support
brackets and align them with the drilled holes on the side
bulkhead. Secure with 4 screws (C).
9. Attach seat to boat by aligning support brackets’ and U-
mounting brackets’ holes, inserting bolts (D) and securing
with locknuts (E) as in fig. 3.
10. Determine method of seat support to be used as illustrated
in fig. 4.
For angled leg mount: Attach stanchion leg (assembled)
to U-mounting brackets by using bolts (D) and locknuts (E).
Position and mark U-mounting brackets’ location on side
bulkhead at the position where seat is parallel to deck
surface. Drill the 2 bracket holes with a 1/8" bit and
secure it in position with 2 screws (C).
For straight leg mount: Attach leg (assembled) to U-
mounting bracket on seat bottom using bolt (D) and
locknut (E). Check to see that seat bottom is parallel to
deck surface. If not, cut off the appropriate length of
tubing with a hacksaw and slip poly tip (H) on the end of
stanchion leg. NOTE: Tip will go on more easily after
being heated in warm water.
11. If fore and aft adjustment of seat is desired, then seat may
be adapted by using Model 75005 side slide assembly.
Also, for boats used in rough water or by heavy people,
an H-type stanchion leg – Model 75014 – is available.
FIG. 3
FIG. 4
Assembly Instructions – Models 40016, 40018, 40020, 40021,
40022, 40024, 40028 Seats with Folding Helmsman Hardware
and Model 75044 Side Mount Helmsman Seat Hardware
Form 12.117
