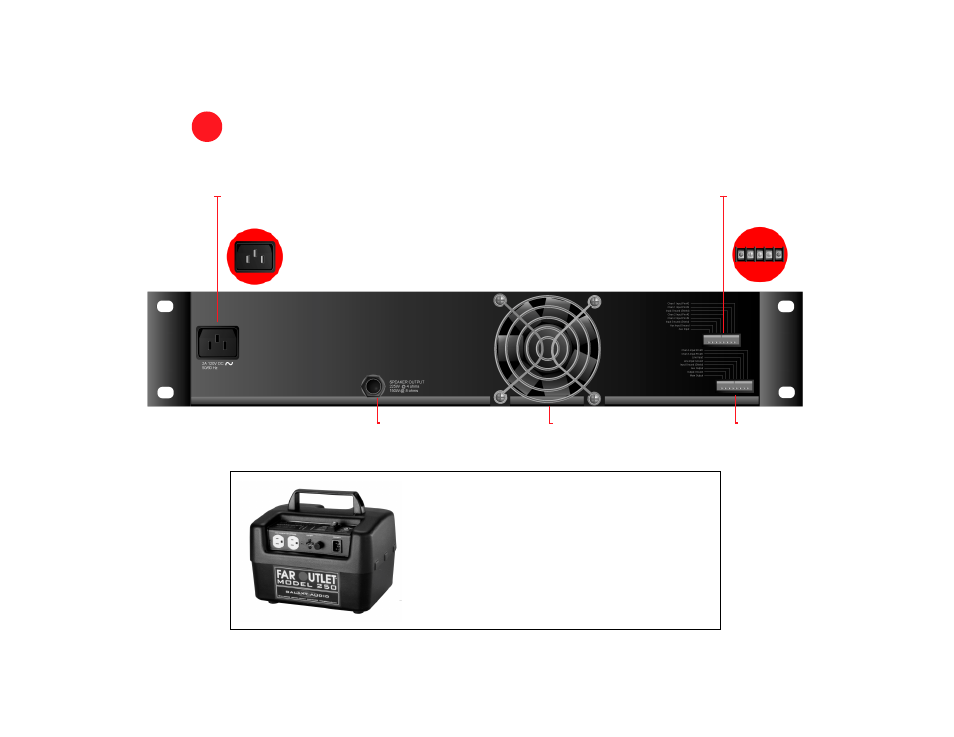

REAR P REAR P REAR P REAR P REAR PANEL ANEL ANEL ANEL ANEL
SPEAKER (¼”) OUTPUT FAN I/O PORT
Models X250
XR250
All channel inputs, the Main Line output
and the Aux Main output are available on
two 8-pin 0.100" centerline connectors.
Recommended mating plug: Molex 22-50-3085
(Molex22-41-5082 is also usable).
With Galaxy Audio’s Far Outlet personal power source,
a lunchbox-sized rechargeable supply of 110 house-
hold current, the CORE X250/XP250 can be used where
no AC power is available. The FAR OUTLET is available
from Galaxy Audio dealers.
AC INLET
Models XR250
XPR250
AC OUTLET
Models X250
XP250 I/O PORT
Modesl X250
XR250
BARRIER STRIP
Models XP250
XPR250
